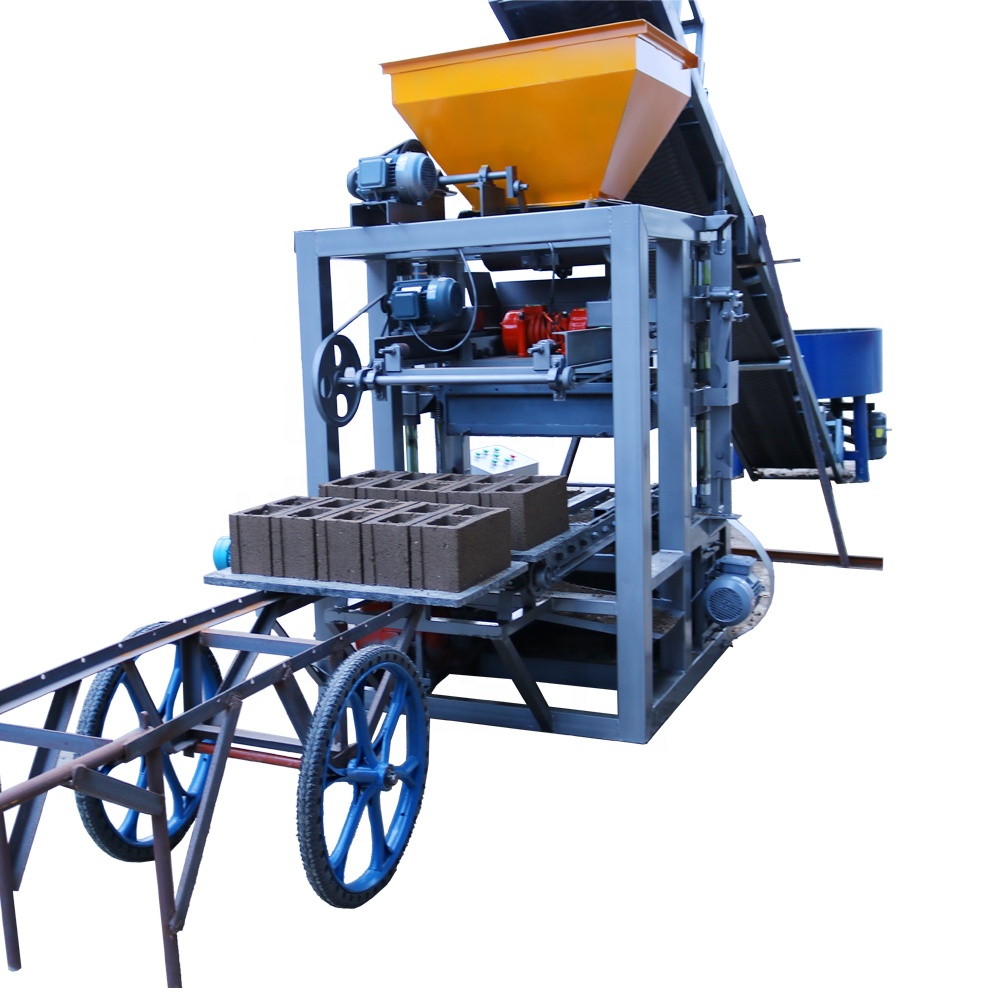

Semi-Automatic Hydraulic Brick Making Machine
This semi-automatic hydraulic brick-making machine is an efficient, high-performance solution engineered for the production of high-strength construction blocks. By combining a robust structure with a vibration-assisted hydraulic pressing system, it ensures uniform density, precision, and durability in every block. With a capacity of up to 10,000 bricks per day, this system is a scalable choice for entrepreneurs, contractors, and manufacturers looking to optimize construction material production.
Key Features
-
Efficient Operation: Semi-automatic hydraulic controls provide a cost-effective balance between output and investment.
-
High-Density Output: High vibration force ensures the production of dense, long-lasting bricks.
-
Rapid Cycle: Fast moulding cycle (24 seconds) increases overall efficiency.
-

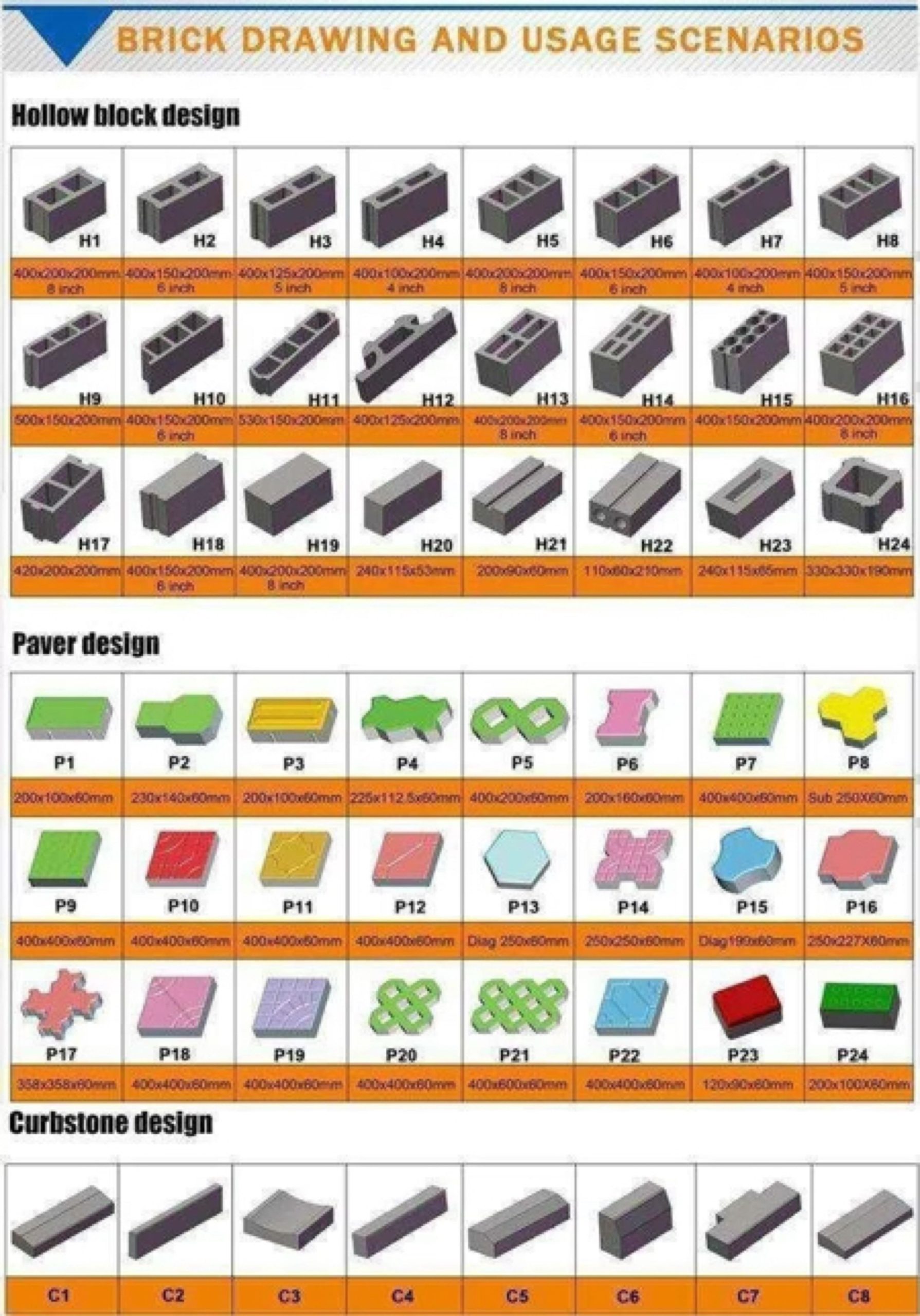

Product Versatility: Capable of producing hollow blocks, interlocking bricks, and various pavers.
-

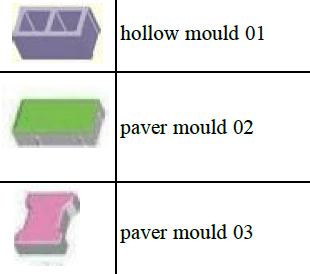

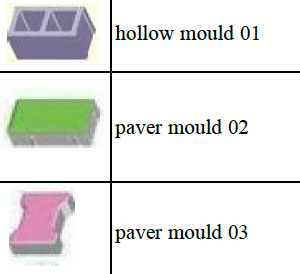

Customizable: Features an interchangeable mould system (includes 1 hollow block mould and 2 paver moulds).
-
Robust Build: A heavy-duty frame ensures stability during intensive, long-term operation.
Technical Specifications
| Parameter | Details |
| Machine Dimensions | 2060 x 1730 x 2580 mm |
| Total Power | 22.05 kW |
| Moulding Cycle | 24 seconds |
| Vibration Force | 35.5 KN |
| Pallet Size | 850 x 550 x 25 mm |
| Voltage | 380 / 415 / 440 V |
| Workshop Area Required | 60 $m^2$ |
| Mixer Capacity | 350 L (Output) |
Production Capacity Estimates
| Block Size (mm) | Qty/Mould | Output/Hour | Output/Shift |
| 400 x 200 x 200 | 4 pcs | 360–450 pcs | 2,880–3,600 pcs |
| 400 x 100 x 200 | 7 pcs | 630–840 pcs | 5,040–6,720 pcs |
| 400 x 150 x 200 | 5 pcs | 450–600 pcs | 3,600–4,800 pcs |
| 230 x 110 x 70 | 20 pcs | 3,272 pcs | 26,180 pcs |

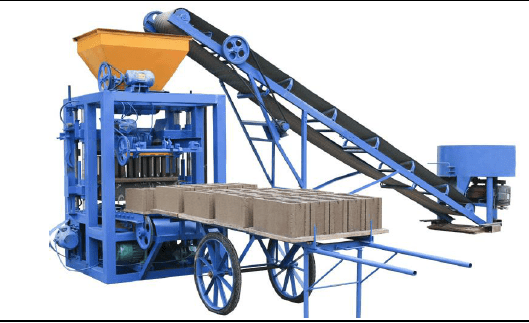

System Configuration
The system is delivered as a complete manufacturing setup, including:
-
Concrete mixer (5.5 kW motor)
-
Belt conveyor system
-
Hydraulic block forming machine
-
1 hollow block mould & 2 paver moulds
-
Block transport trolley
-
Essential spare parts and tools
Why Invest?
-
Profitability: Strong daily production capacity enables steady revenue streams.
-
Scalability: Lower initial investment compared to fully automatic systems, with the flexibility to expand.
-
Market Demand: Addresses the consistent need for construction and infrastructure materials.
Would you like more information on the concrete mixing ratios required for these specific block types, or are you looking for details on the recommended curing process to achieve maximum block strength?
