Hydraulic Automatic Block Making Machine – Concrete Brick Production Line

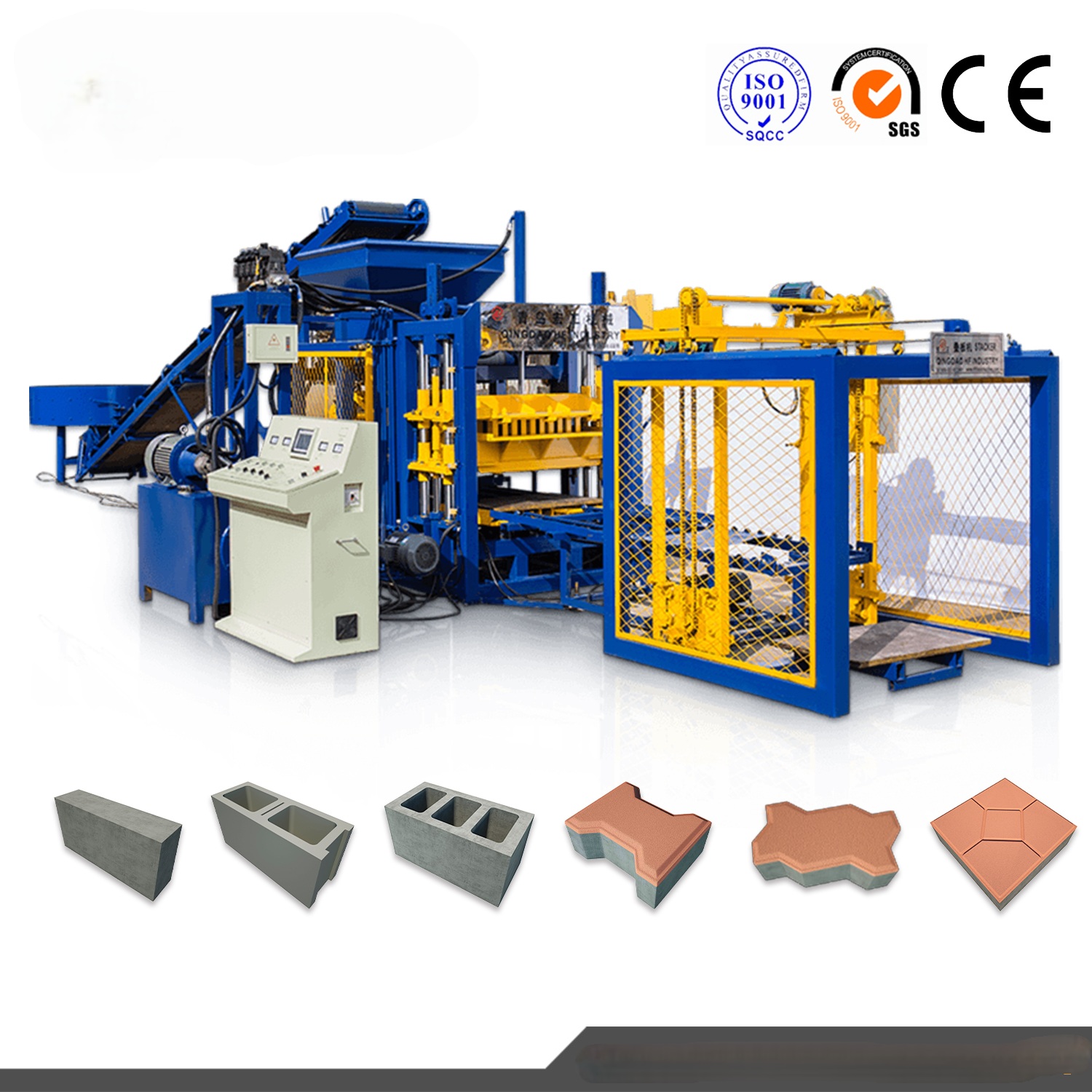

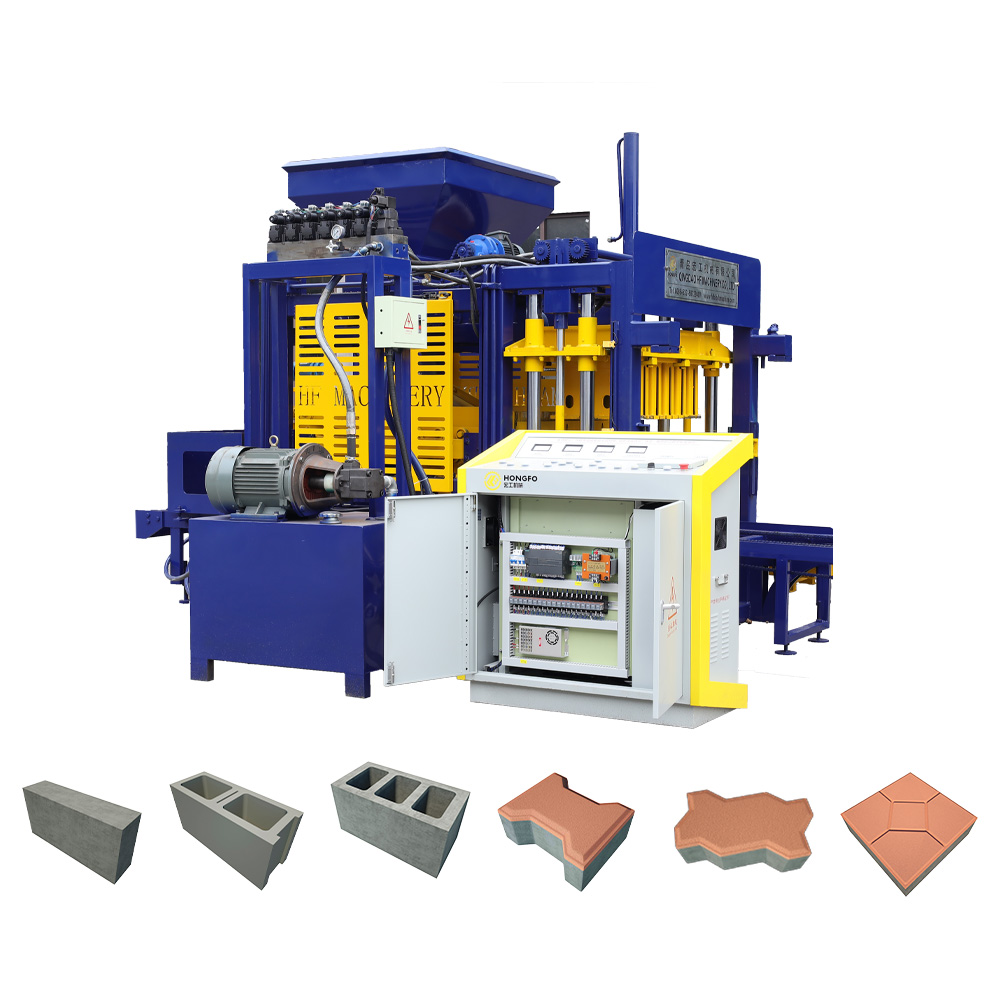

Hydraulic Automatic Block Making Machine (PLC Controlled, High-Output System)

---

Key Attributes

Operation – Fully automatic hydraulic system
Control System – PLC
Rated Pressure – 16 MPa
Molding Cycle – 15–25 seconds
Pallet Size – 900 × 550 mm
System – Hydraulic station, automatic feeder, pallet feeder
Structure – Heavy-duty industrial frame

---

Key Features

Fully automatic hydraulic block production system
High-pressure molding (16 MPa) for strong and durable bricks
PLC-controlled operation for precision and stability
Fast molding cycle (15–25 seconds per cycle)
Automatic material feeder and pallet feeder system
Multi-product capability: hollow blocks, solid bricks, colour pavers
Optional colour feeding system for decorative surface layer
Customisable moulds for different sizes and designs
Automatic stacking system for efficient handling
Heavy-duty industrial structure for long-term operation

---

Production Capacity

Hollow Block 400×200×200
Qty/Mould – 4 pcs
Cycle Time – 15–20s
Output/Hour – 720–960 pcs
Output/8 Hours – 5760–7680 pcs

Hollow Block 400×150×200
Qty/Mould – 5 pcs
Cycle Time – 15–20s
Output/Hour – 900–1200 pcs
Output/8 Hours – 7200–9600 pcs

Hollow Block 400×100×200
Qty/Mould – 7 pcs
Cycle Time – 15–20s
Output/Hour – 1260–1680 pcs
Output/8 Hours – 10080–13440 pcs

Colour Paver 225×112.5×60
Qty/Mould – 12 pcs
Cycle Time – 15–25s
Output/Hour – 1728–2880 pcs
Output/8 Hours – 13824–23040 pcs

Colour Paver 200×100×60
Qty/Mould – 14 pcs
Cycle Time – 15–25s
Output/Hour – 2010–3360 pcs
Output/8 Hours – 16080–26880 pcs

---

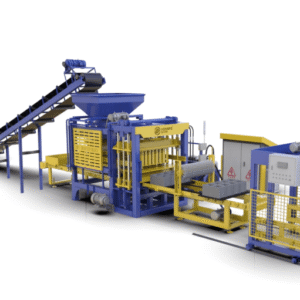

System Configuration

A. Mixing & Feeding Section
Concrete Mixer – Input: 800L / Output: 500L
Productivity – ≥20 m³/h
Power – 11 kW
Belt Conveyor – 8m flat belt with electric roller

B. Block Forming Machine
Rated Pressure – 16 MPa
Molding Cycle – 15–25 seconds
Control System – PLC
Pallet Size – 900 × 550 mm
Included Systems – Hydraulic station, automatic feeder, pallet feeder

C. Mould System
Standard hollow block mould included
Additional moulds available (paver, solid, custom designs)
Fully customisable mould sizes and shapes

D. Colour Feeding System (Optional)
Colour Feeding Machine – Applies pigment layer to paver surface
Colour Mixer – Prepares colour material

E. Stacking & Handling
Automatic stacker – Layer-by-layer stacking
Trolley – Transport finished blocks
GMT pallets – High durability production pallets

---

Why Invest in This Machine

High daily output for strong revenue potential
Production of standard and premium colour bricks
Reduced labour through full automation
Expandable product range with custom moulds
Suitable for high-demand construction markets
Higher profit margins from decorative paving products
