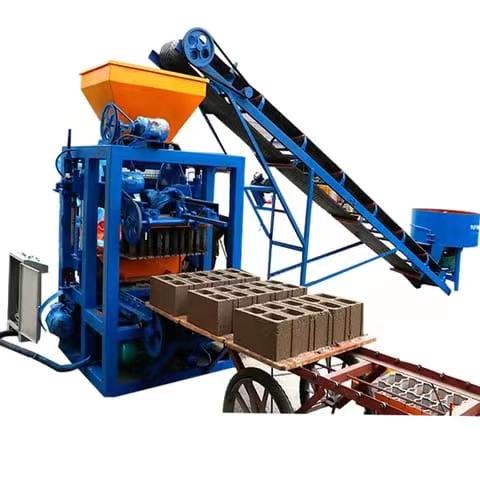

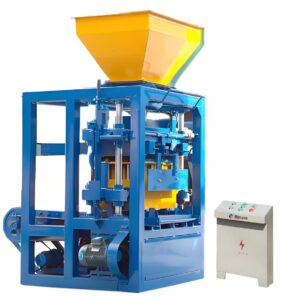

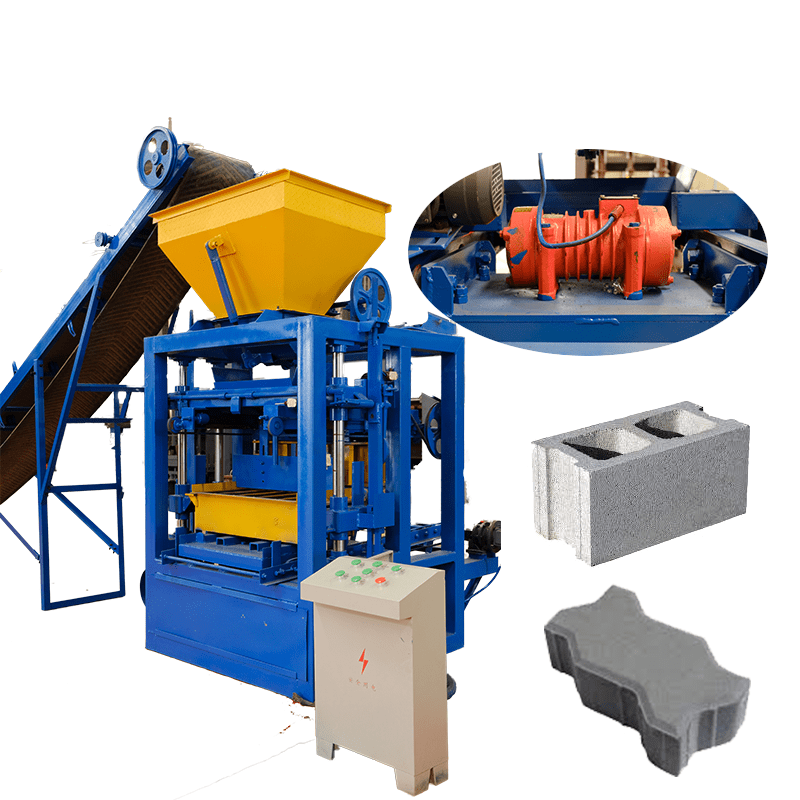

Semi-Automatic Concrete Brick Making Machine

Product Overview This Semi-Automatic Concrete Brick Making Machine is a reliable and cost-effective solution for block production businesses. Built for durability and efficiency, the machine uses advanced vibration and pressing technology to produce a wide range of concrete products including hollow blocks, solid bricks, and paving stones. Ideal for small to medium-scale operations, it offers consistent output, low operational costs, and flexibility with interchangeable molds to suit different production needs. What’s Included Main Brick Making Machine 6m Belt Conveyor Concrete Mixer Free Block Mold (Hollow/Solid Custom) 2 Block Transport Carts Spare Parts & Tools Optional: Block Stacker Additional Block Molds Paver/Curbstone Mold Fiber Glass Pallets Key Features High vibration force for strong, dense bricks Semi-automatic operation for ease of use Heavy-duty steel construction for durability Interchangeable molds for multiple block types Efficient material transfer system Low maintenance and operating costs Technical Specifications Specification Details Machine Dimensions 1850 × 11880 × 2240 mm Machine Weight 1.56 Tons Power 22 kW Vibration Force 35.5 KN Moulding Cycle 20–24 seconds Pallet Size 850 × 550 × 20 mm Voltage Adaptable to local voltage Required Workshop Area ±160 m² Mixer Specifications Specification Details Charging Volume 0.56 m³ Discharging Volume 0.35 m³ Production Capacity ≥ 4 m³/hour Mixer Diameter 1200 mm Power 7.5 kW Production Capacity Block Size (mm) Blocks per Mould Blocks per Hour Blocks per Shift 400 × 200 × 200 4 360–450 2880–3600 400 × 100 × 200 7 630–840 5040–6720 400 × 150 × 200 5 450–600 3600–4800 400 × 250 × 200 3 270–360 2160–2880 230 × 110 × 70 16 2304 18,432 200 × 100 × 60 20 3000 24,000 200 × 163 × 60 6 864 6912 Applications Construction block manufacturing Paving brick production Housing and infrastructure projects Small to medium brick factories Why Choose This Machine Strong return on investment High production efficiency Multi-purpose production capability Easy to operate and maintain Ideal for starting or scaling a brick manufacturing business
