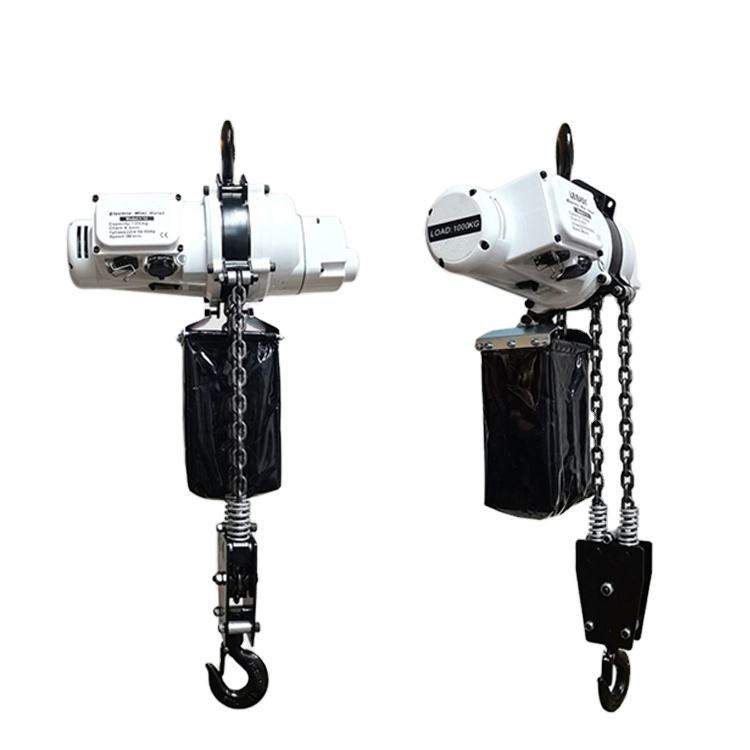

Mini Chain Electric Hoist

Lightweight Single-Phase 110V/220V Mini Chain Electric Hoist 250Kg 0.5t-1T For Lifting

Introduction

The Lightweight Single-Phase Mini Electric Chain Hoist is a compact and efficient lifting solution designed for various applications, including construction, manufacturing, and home use.

Key Features

• Load Capacities: Available in 250 kg, 0.5 ton, and 1 ton variants, catering to diverse lifting requirements.

• Power Supply: Operates on single-phase 110V or 220V power sources, making it suitable for locations with standard household or light industrial electrical outlets.

• Lifting Speed: Offers multiple lifting speeds—2.5/3 m/min, 5/6 m/min, and 10/12 m/min—providing flexibility for different tasks.

• Control Options: Equipped with both pendant and remote control systems, enhancing operational convenience and safety.

• Compact Design: With a package size of 50 x 30 x 40 cm and a gross weight of 30 kg, this hoist is portable and easy to install in various settings.

Specifications

• Motor Power: 1.3 kW

• Load Chain Diameter: 6.3 mm

• Protection Class: Designed to withstand various environmental conditions, ensuring durability and longevity.

• Package Size: 50 x 30 x 40 cm

• Gross Weight: 30 kg

Applications

This mini electric chain hoist is ideal for:

• Lifting goods in workshops and garages

• Material handling in manufacturing plants

• Construction site operations

• Agricultural applications

• Home use for lifting heavy items safely

Customization Options

• Logo and Packaging: Custom logos and packaging are available upon request, with a minimum order quantity of one set.

• Graphic Customization: Tailored solutions to meet specific branding or operational needs.

Product Description

The mini electric chain hoist can be widely used in hanging for engineering, plant hoist operations, civil hydropower installed piping, Warehousing and shipping the goods it can be used to lift, raise and drag it’s compact, lightweight, economy and effective, and easy to obtain single-phase power supply.

• Motor system: Using brushless motor series excited of high efficiency industrial grade; there are two selected configurations of single phase voltage (110v/ 220V); its enameled heat levels up to 200 degrees, specifically designed for long crane.



• Brake system: Dual brake system with one mechanical ratchet gear brakes and the other brake resistor short circuit controller, formula oiled copper disc brakes with high friction coefficient, which needs no adjustment; immediately brake in power outage or malfunction, great safety and long life.



• Electronic control system: direct control which saves tedious lines and has the advantages of easy maintenance, low failure rate, security and stability; control switch with separate power line and quick connector makes it easy to carry.



• Gear system: Use the transmission plus planetary reduction gear with the best efficiency;, planetary gear set has two steel heat treatment operating idlers which can share power, and the life is more than 2 times the general driving type.
