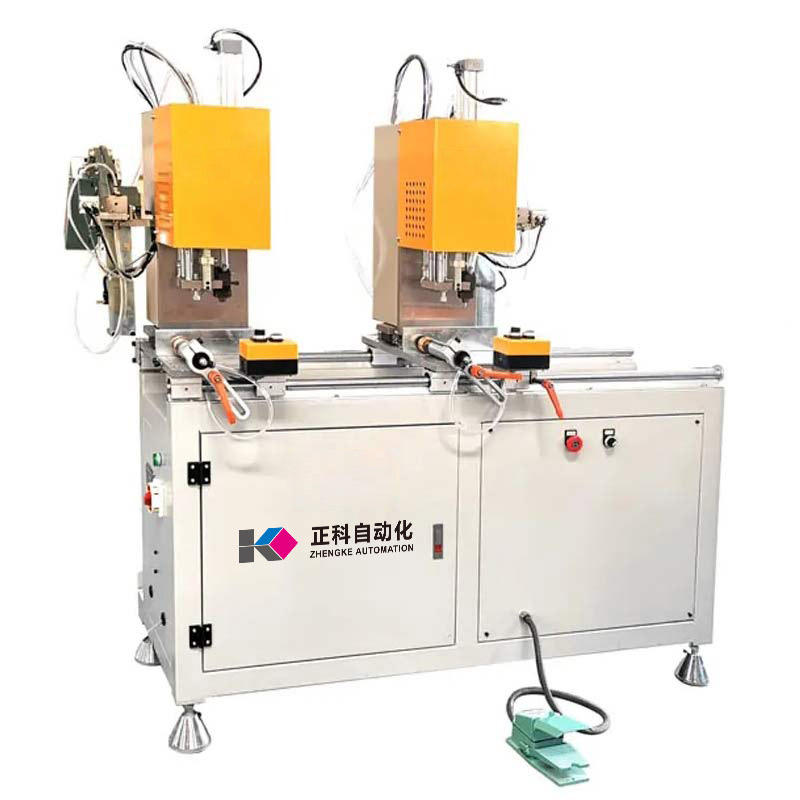

Double-Platform Automatic Fastening Screw Machine (UPVC/PVC Window & Door)
Introduction
The Double-Platform Automatic Fastening Screw Machine is a specialized industrial solution designed for efficient screw fastening in UPVC/PVC window and door production lines. It uses a dual-head, double-platform structure to significantly improve assembly speed, accuracy, and automation in reinforcing steel installation inside PVC profiles.
Specifications
| Feature | Details |
|---|---|
| Type | Double Platform Automatic Fastening Screw Machine |
| Material | Industrial-grade steel |
| Operation | Fully automatic |
| Power | 3 kW |
| Voltage | 220V / 50Hz (customizable 380V option) |
| Air Pressure | 0.5 – 0.8 MPa |
| Air Consumption | 30 L/min |
| Machine Dimensions | 850 × 750 × 860 mm |
| Weight | Approx. 130 kg (some configurations up to 450 kg system weight) |
| Control System | PLC + digital display |
| Screw Feeding | Automatic screw sorting + feeding system |
| Platform Type | Double adjustable working platforms |
Key Features
- Double-Head Fastening System
Allows simultaneous or independent screw fastening for higher productivity. - Fully Automatic Screw Feeding
Integrated screw sorting and feeding eliminates manual handling. - PLC Intelligent Control System
Ensures stable operation, precision control, and reduced error rate. - Adjustable Positioning System
Screw units can move forward/backward to match different PVC profile widths. - Flexible Operation Modes
Dual units can operate together or independently based on production needs. - High Efficiency Output
Designed for continuous production with minimal operator intervention. - Strong Compatibility
Suitable for various PVC/UPVC window and door reinforcement profiles.
Applications
- UPVC/PVC window and door manufacturing plants
- Aluminum and plastic profile assembly lines
- Construction material fabrication workshops
- Industrial window frame reinforcement production
- Automated building material processing facilities
Summary
This Double-Platform Automatic Fastening Screw Machine is a high-efficiency solution built for modern PVC window and door manufacturing. With its dual-head automation system, PLC control, and automatic screw feeding mechanism, it significantly reduces manual labor while improving precision, speed, and consistency in reinforcement fastening processes.
