Machine Upvc Window Making Glazing Bead Cutting Saw Upvc/pvc

UPVC Window Making Machine

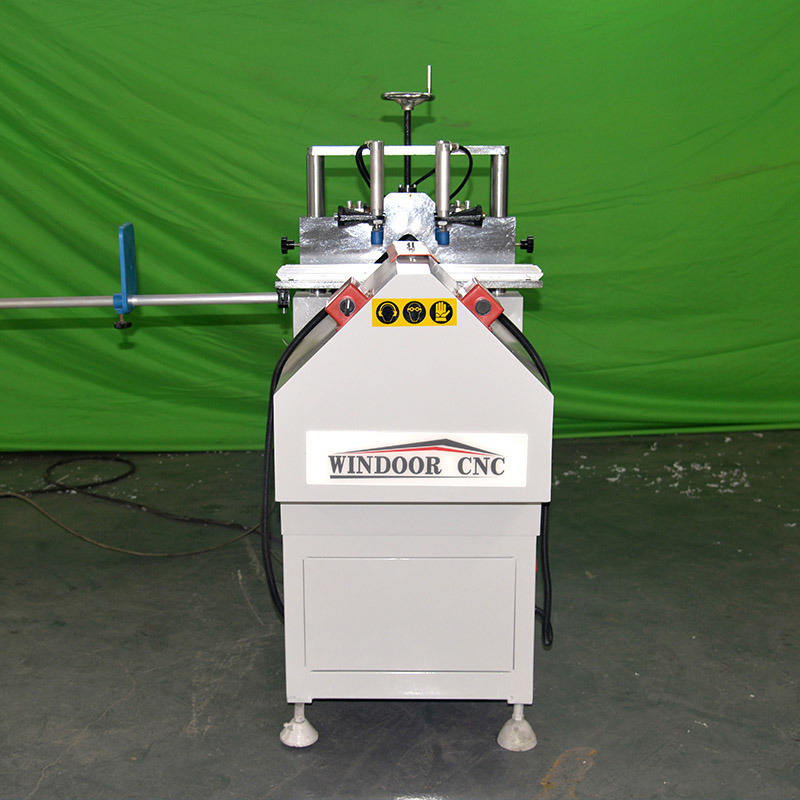

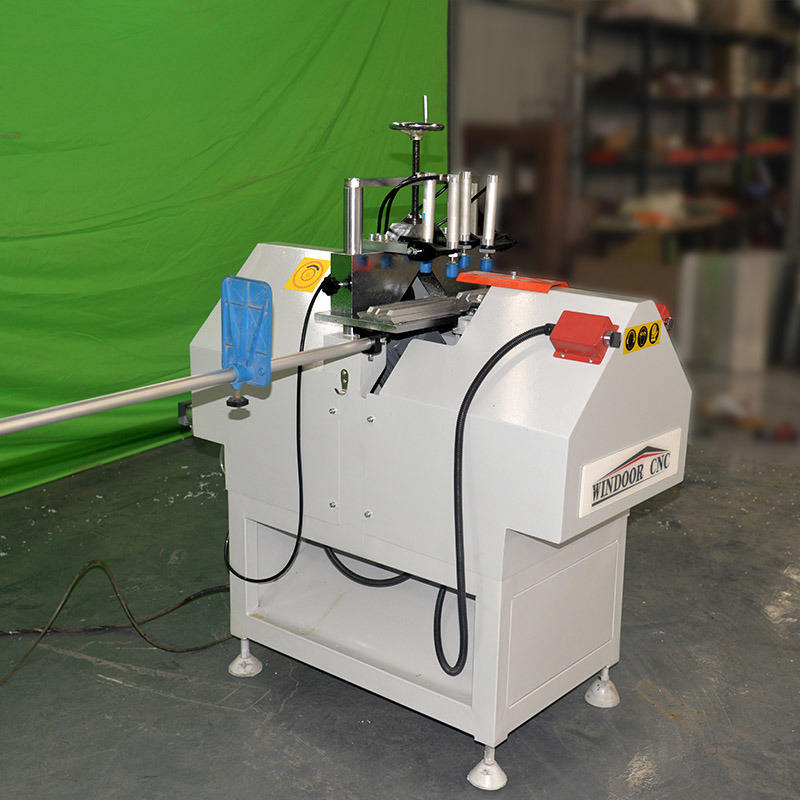

Glazing Bead Cutting Saw for UPVC/PVC Window Door

---

Briefing

The product is a Hot Sales UPVC Window Making Machine. This machine is designed for efficient and precise manufacturing of UPVC windows using advanced technology.

---

Key Specifications

• Type: UPVC Window Making Machine
• Material: Steel
• Operation: Automatic
• Power: 1.2 kW
• Voltage: 220V/50Hz
• Welding Capacity: 30–180 degrees
• Welding Profile Width: 0–120 mm
• Welding Profile Height: 20–120 mm
• Weight: Approximately 350 kg
• Dimensions: 960 × 960 × 1760 mm
• Control: Electric with digital adjustment

---

Applications

• Window and Door Fabrication: Ideal for welding UPVC profiles for window and door manufacturing
• Construction: Suitable for use in construction projects involving UPVC installations
• Customizable: Can be customized for different sizes and specifications

---

Summary

This hot sales UPVC window making machine offers a powerful and efficient solution for welding UPVC profiles. It is designed for automatic operation with a high-precision control system, making it suitable for window and door manufacturing industries. Its durable construction and advanced control features ensure reliable performance.

---

Processing Performance and Features

1. Special use in cutting glazing bead of PVC win-door
2. Special combination saw cutting steady which can avoid the inner corner welding tumor of sash simultaneously so that make the glazing bead to be connected well and looks nice

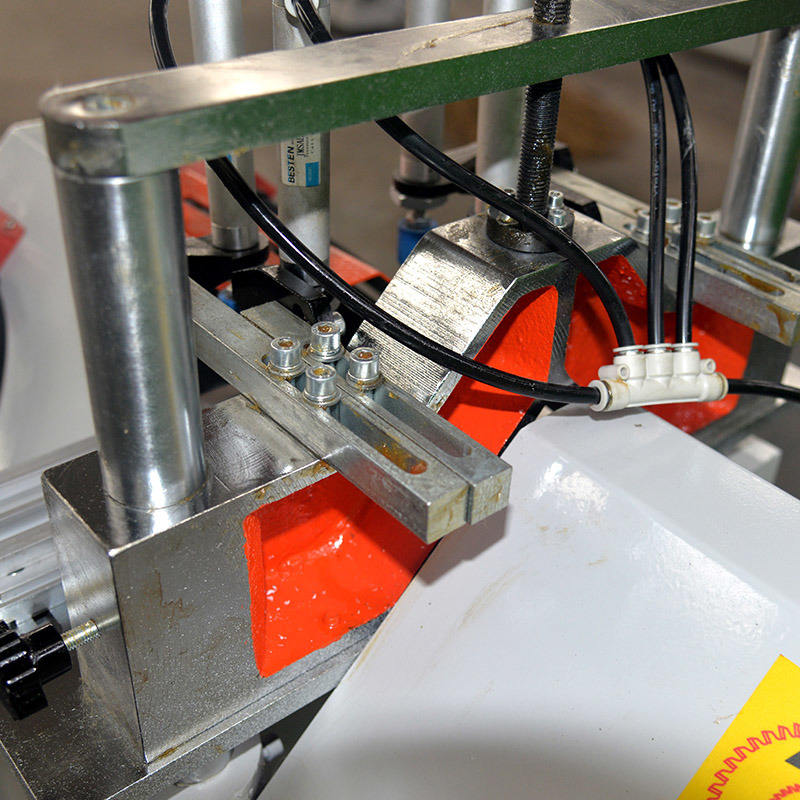

3. Adopt the special mold which can cut two pieces of profile at one time
4. Special measurement device which ensures the size precision when cutting so that eliminating the errors between processed sash and glazing bead during they are assembling
5. The vertical direction adjustable angle compaction system which adapted different profiles and make the press more reliably
6. Pneumatic in feeding and the speed linearity adjustable
7. Both hand concurrent operation button, ensures the operator safety

---

Product Parameters

• Input power source: 380V/50Hz
• Max cutting width: 100mm
• Total power: 1.5kW
• Max cutting height: 45mm
• Working air pressure: 0.4–0.6MPa
• Cutting length: 320–1800mm
• Air consumption: 80L/min
• Dimension: 2560 × 1260 × 1350mm
• Diameter of saw: 230mm
• Weight: 200kg
