Diamond Washing Mining Equipment

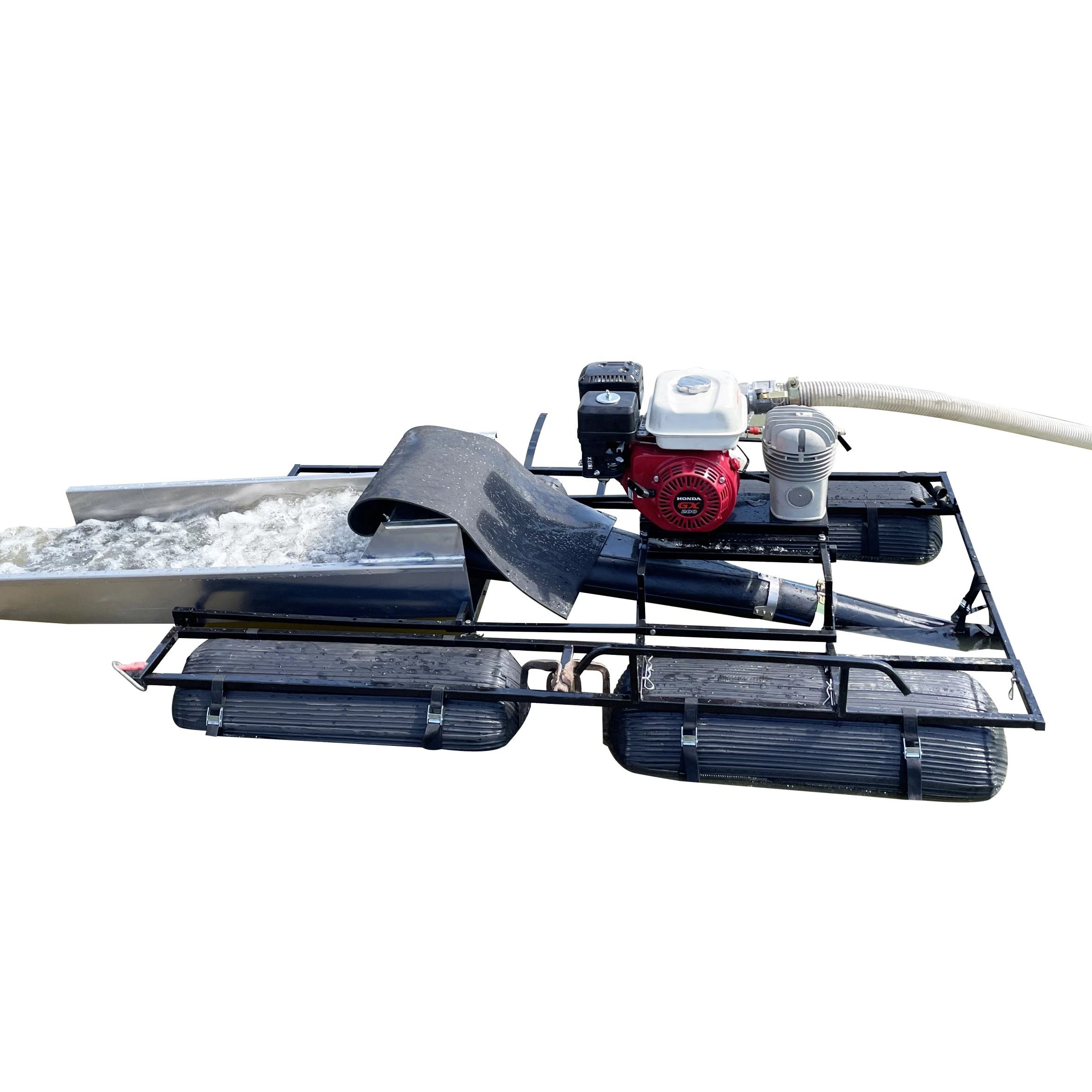

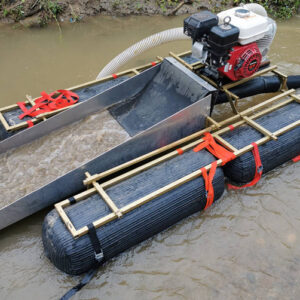

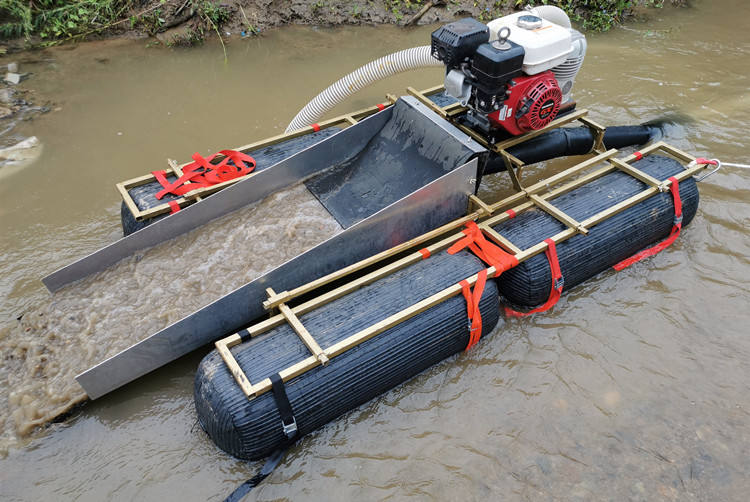

Gold Dredge (Gravity Separator – Gold & Diamond Recovery Equipment)

---

Introduction:
This gold dredge is designed for efficient gold and diamond recovery using gravity separation technology. It is built for water-based mining environments and provides reliable performance for extracting valuable minerals from sand and sediment. With a compact structure and durable components, it is suitable for both small and large-scale dredging operations.

---

Specifications:
Type: Gravity Separator
Production Capacity: 4 m³/h
Core Components: Pump, engine
Power Type: Gasoline
Dredging Depth: 6 m
Sand Pumping Hose: 4″ × 6 m
Sluice Box Specification: 1.2 × 0.5 m
Fuel Consumption: 1.7 L/h
Dimensions (L×W×H): 2.9 × 1.2 × 0.8 m
Weight: 96 kg
Warranty: 1 year

Machinery Test Report: Provided
Video Outgoing Inspection: Provided
Supply Ability: 1000 sets per year
Packaging: Fumigated wooden box

---

Key Features:

Efficient Gravity Separation: Effectively separates gold and diamonds from sand and gravel.

Portable Design: Compact structure allows easy transport and field deployment.

Low Fuel Consumption: Operates at only 1.7 L/h for cost-efficient performance.

Durable Construction: Equipped with reliable pump and engine for continuous operation.

Simple Operation: Designed for easy setup and use in mining environments.

High Recovery Efficiency: Optimized sluice system improves mineral recovery rate.

---

Applications:

Gold Mining: Suitable for riverbeds and alluvial gold extraction.
Diamond Recovery: Efficient separation of diamonds from sediment.
Small Mining Operations: Ideal for independent miners and small companies.
Water-Based Mining: Effective for dredging in rivers and wet mining areas.

---

Conclusion:
This Gold Dredge Gravity Separation Equipment is a practical and efficient solution for mineral recovery in water-based environments. With its compact design, low fuel consumption, and reliable performance, it is well-suited for mining operations aiming to improve productivity and extraction efficiency.
