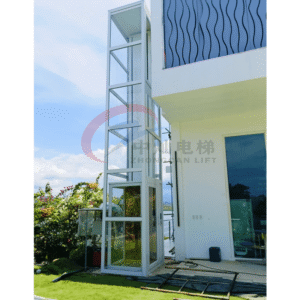

Hydraulic Home Elevator (Residential 1–3 Floor Glass Door Lift)
Key Attributes
Lift Mechanism – Hydraulic System / Traction Drive
Load Capacity – 200 kg / 400 kg / 630 kg / 800 kg (customizable)
Travel Height – Customizable
Platform Dimensions – Customizable
Power Supply – 220V / 380V
Control System – Automatic with user-friendly interface
Safety Features – Emergency stop button, non-slip platform, door safety sensor
Warranty – 1 year
Technical Parameters
Drive System – Hydraulic drive / Traction drive
Capacity (kg) – 250 / 320 / 400
Elevator Type – Aluminum enclosed shaft elevator / Shaftless elevator
Cabin Material – Aluminum alloy frame + tempered glass / Stainless steel
Door Styles – Swing landing door / Double auto sliding door / Fully automatic double door
Flooring – PVC / MaGTMe / Granite
Ceiling – Acrylic lighting plate + LED light
Customization – Lifting height, load, cabin size, voltage
Product Description
Requires minimum space and no headroom or pit
Consumes power only during upward movement
Can operate on single-phase power
Manual descent possible during power failure
Cost saving on pillars and sidewalls due to shaftless design
Key Features
Hydraulic system for smooth lifting
Customizable cabin size and travel height
High load capacity up to 800 kg
Automatic control system
Non-slip platform with safety protection
Emergency stop function
Door safety interlock system
UPS backup for emergency descent
Limit switch for travel safety
Anti-obstacle protection system
Applications
Residential buildings and villas
Hotels and hospitality buildings
Medical facilities
Retail stores and commercial spaces
Packaging & Shipping
Standard export wooden box packaging
Protective film wrapping for sensitive components
Safe transport for long-distance shipping
Summary
The Hydraulic Home Elevator is a customizable residential lifting system designed for safe and efficient vertical transportation. It features hydraulic operation, glass cabin design, advanced safety systems, and flexible installation options suitable for homes and commercial buildings.
