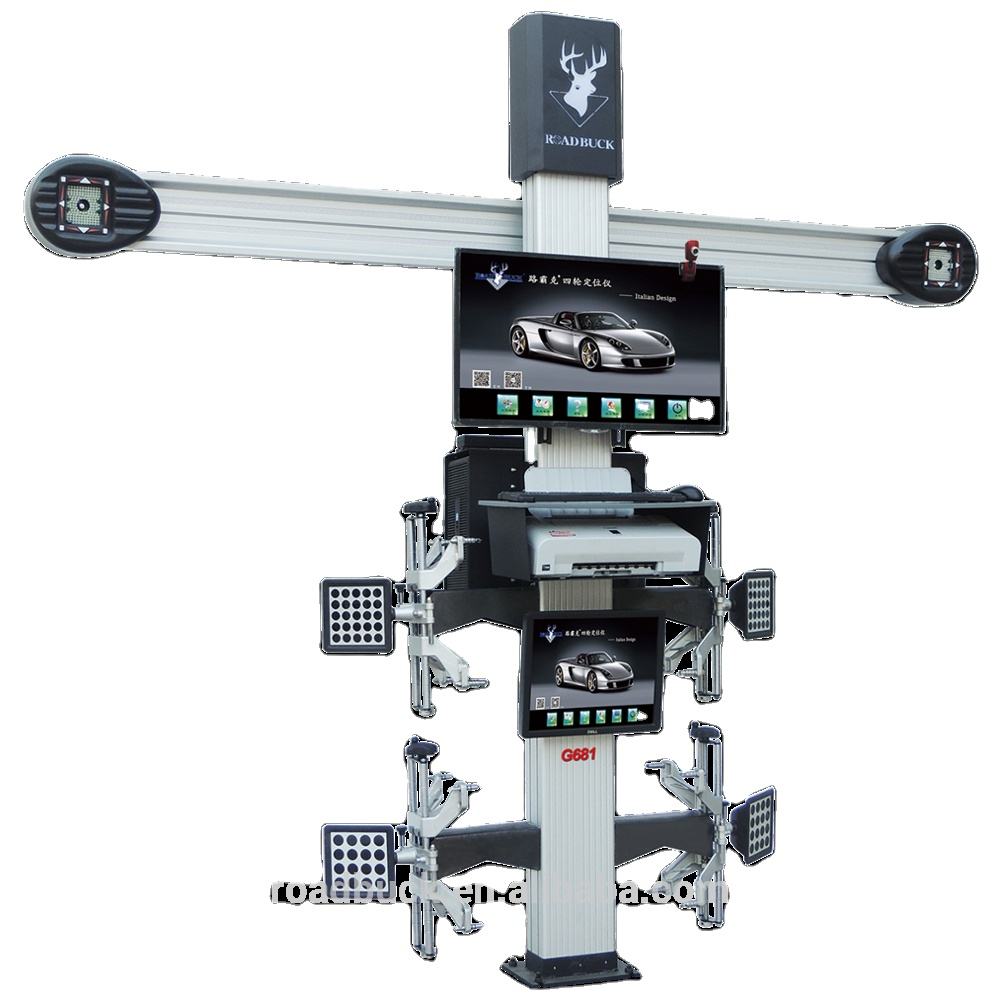

3D Self-Calibrated Four Wheel Alignment Machine
Product Overview
The 3D Self-Calibrated Four Wheel Alignment Machine is a professional automotive diagnostic system designed for high-precision wheel alignment. It provides accurate measurement of key suspension and steering parameters using advanced dual-camera 3D imaging technology.
Built for workshops, service centers, and automotive garages, this system ensures fast, stable, and reliable alignment operations with a large vehicle database and intelligent calibration-free design.
Software Functions
Basic Alignment Functions
- Camber angle measurement
- Caster angle measurement
- Kingpin inclination (SAI)
- Toe angle measurement
- Set back detection
- Thrust angle calculation
Extended Functions
- Axle deviation measurement
- Wheel deviation detection
- Animation-guided operation
- Single-wheel measurement mode
- Vehicle lift measurement support
- Straight steering wheel correction
- Alignment platform levelness detection
- Engine bracket adjustment assistance
- Locking toe measurement function
- Toe curvature analysis
Measurement Accuracy
| Item | Front Axle | Rear Axle |
|---|---|---|
| Toe | ±0.02° (±20° range) | ±0.02° (±20° range) |
| Camber | ±0.02° (±15° range) | ±0.02° (±15° range) |
| SAI | ±0.02° (±26° range) | N/A |
| Caster | ±0.02° (±26° range) | N/A |
| Thrust Angle | N/A | ±0.02° (±5° range) |
Standard Configuration
- High precision digital cameras ×2
- Camera pillar ×1

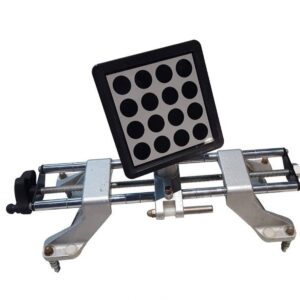

- Target plates ×4
- Control cabinet ×1

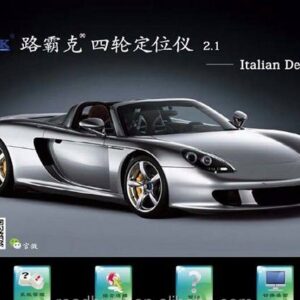

- Computer system ×1
- Color printer ×1
- 4-point wheel clamps ×4
- Clamp brackets ×4
- Mechanical turntables ×2
- Steering wheel lock ×1
- Brake pedal depressor ×1
- Wedge pads ×2
- User manual ×1
Key Features
- Dual Camera 3D Measurement System (high precision, imported technology)
- Self-Calibrated Operation – no frequent recalibration required
- Waterproof Target Plates for durability in workshop environments
- High-Speed Dual-Core Computer System
- Large Vehicle Database Support
- Automatic Vehicle & Lift Compensation
- Up to 120 cm Lift Range Compatibility
- Real-Time Animation Guidance for Operators
- Stable and Professional Measurement Performance
Applications
- Automotive repair workshops
- Tire service centers
- Vehicle inspection stations
- Fleet maintenance facilities
- 4S dealerships
- Heavy-duty garage operations
Conclusion
The 3D Self-Calibrated Four Wheel Alignment Machine delivers high accuracy, intelligent automation, and stable performance for modern automotive service environments. With advanced camera technology and extended diagnostic functions, it ensures precise wheel alignment and improved vehicle safety.
