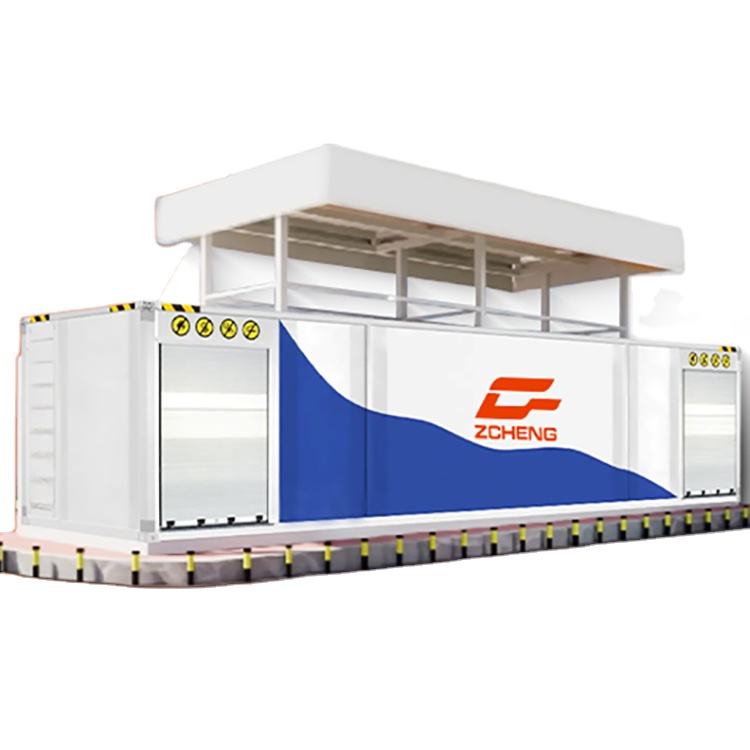

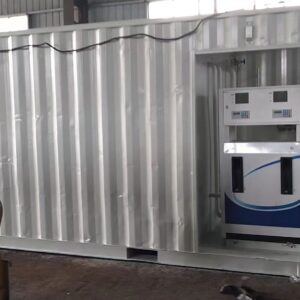

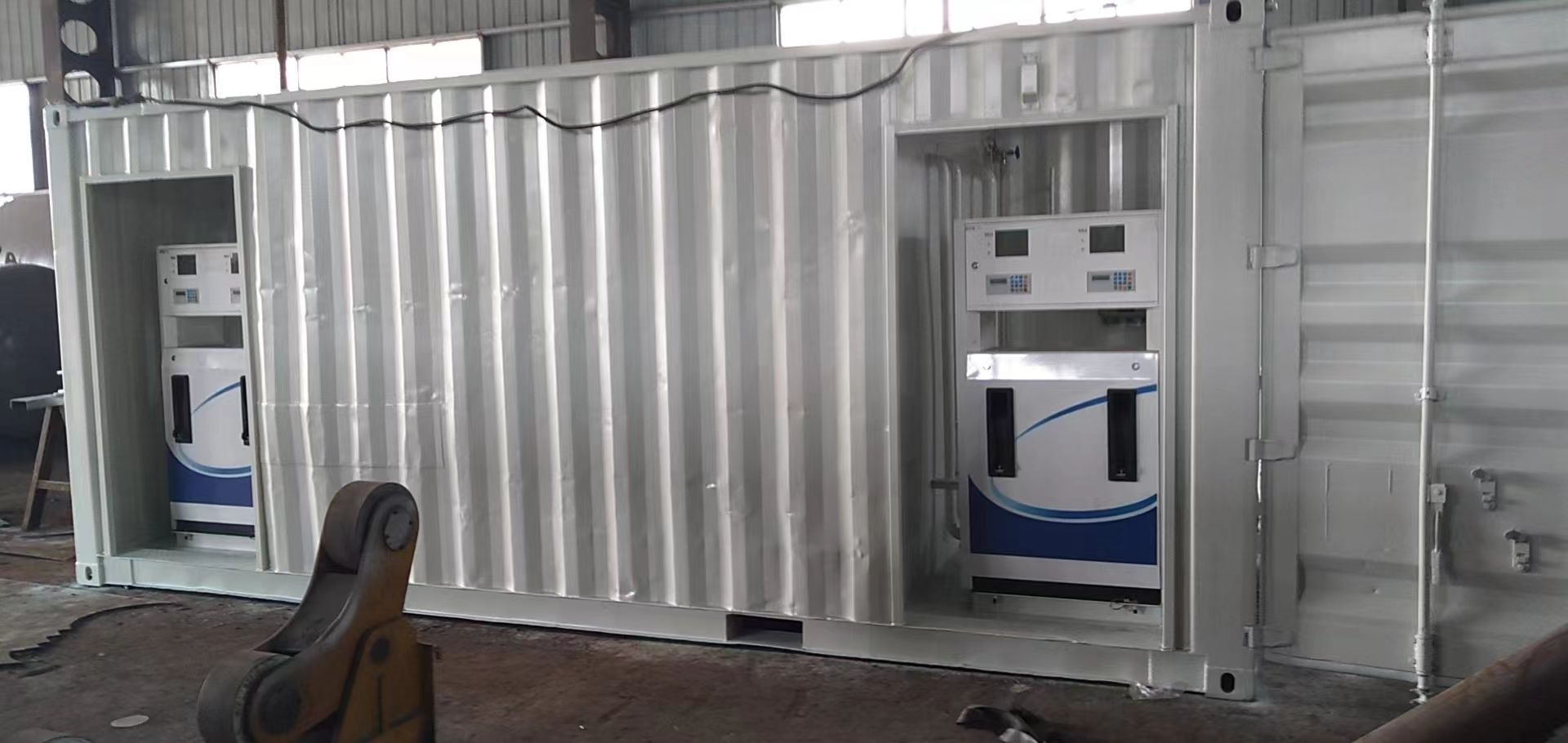

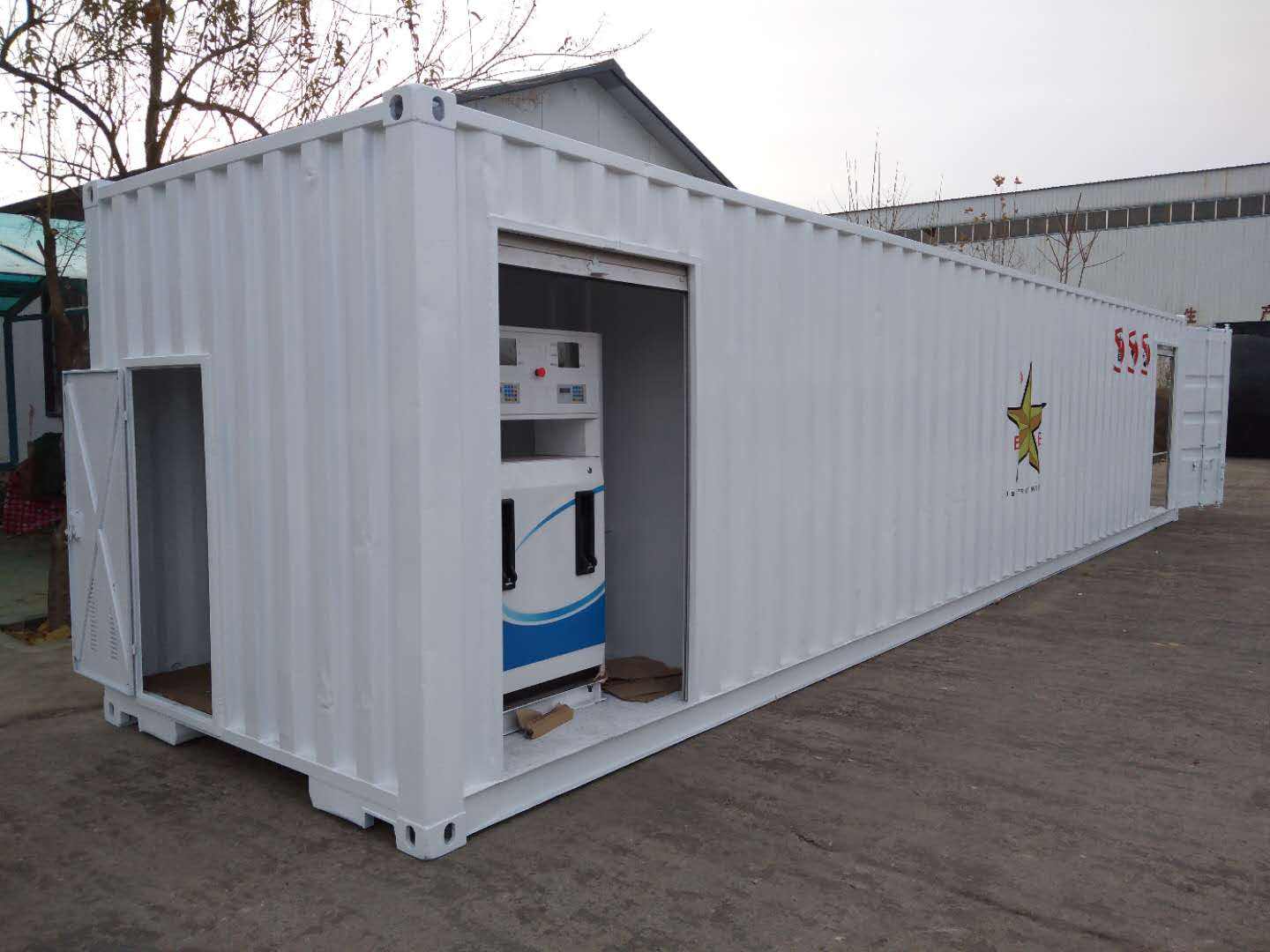

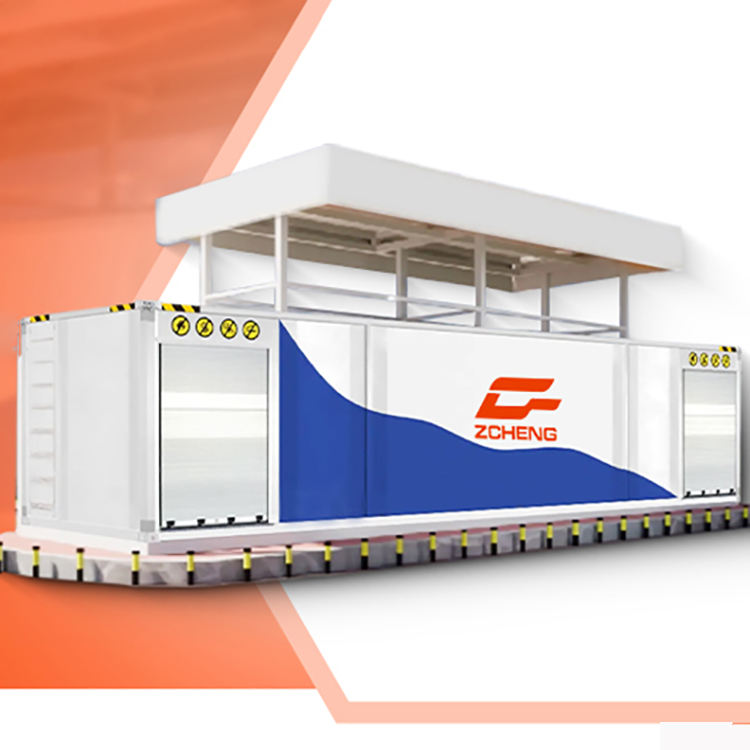

Gas Station Container Pry Gas Station Portable Gas Station Pry
Key Specifications
Container Size: Typically available in 20ft and 40ft sizes
Storage Capacity: Ranges from 10m³ to 50m³
Fuel Dispenser: Economic fuel dispenser with a flow rate of approximately 50 liters/min
Pump: Fuel transfer pump with a capacity of around 300 liters/min
Safety Features: Includes fire extinguishers, overfill protection valve, tank level and temperature gauge, and an integrated ladder and sunscreen for top access
Power Options: Can be equipped with a generator or solar panels for power supply
Automation: Features an automation system with remote online monitoring via a mobile app, smart payment options, and a complete security system including fire alarms and leak detection
Applications
Fuel Filling: Suitable for internal transportation vehicles, construction vehicles on-site, and vehicles in remote areas
Mobile Gas Station: Can be placed on a vehicle for mobility
Emergency Fuel Supply: Ideal for use in emergency situations where a quick and reliable fuel supply is needed
Summary
The gas station container skid is a versatile and efficient solution for fuel storage and dispensing. It offers a compact, transportable system with low installation and maintenance costs. The skid-mounted design ensures easy setup and relocation, making it suitable for various applications, including construction sites, remote areas, and emergency fuel supply
Product Description
Product Name: Skid gas station
Ambient temperature: -25℃ ~ +55℃
Humidity: ≤90%
Flow rate: 5–40L/min
Nozzle: Auto shut-off
Suction distance: 6m (vertical), 50m (horizontal)
Accuracy: ±0.30%
Repeating tolerance: ≤0.15%
Hose: 3m (low hang), 4.5m (high hang), as customized
Inlet pressure: ≥54KPa
Outlet pressure: ≤0.3MPa
Voltage: 220V/380V (50/60Hz)
Power: 1HP (0.75Kw)
Noise: ≤80dB(A class)
Unit price range: 0.01–999.99
Single volume range: 0.01–999999.99
Accumulative volume range: 0.01–9999999999.99
Explosion-proof signal: ExdmbIIAT3
MOQ and specific product prices should be negotiated due to different configurations
Packing & Shipping: Hard carton and wooden case for your option
