Machine Concrete Laser Leveling Floor Paving Leveler

Name: Machine Concrete Laser Leveling Floor Paving Leveler - Horsban Global Traders
SKU: GTM-019022025-006
Price: 748769.81 ZAR
Availability: InStock

R748 769,81

Concrete Laser Leveling Machine Concrete Floor Paving Leveler Automatic Laser Level Machine

SKU: GTM-019022025-006 Categories: Construction Machinery-Equipment & Building Materials, Machinery & Equipment

Description

Automatic Laser Level Screed Machine – Product Briefing

Introduction

The Automatic Laser Level Machine is designed for precise and efficient paving and leveling in construction applications. Equipped with advanced laser technology, it ensures smooth, accurate surfaces while maintaining high operating efficiency. Its robust construction and versatile features make it suitable for manufacturing plants, construction sites, and various industrial projects.

Specifications

Feature	Details

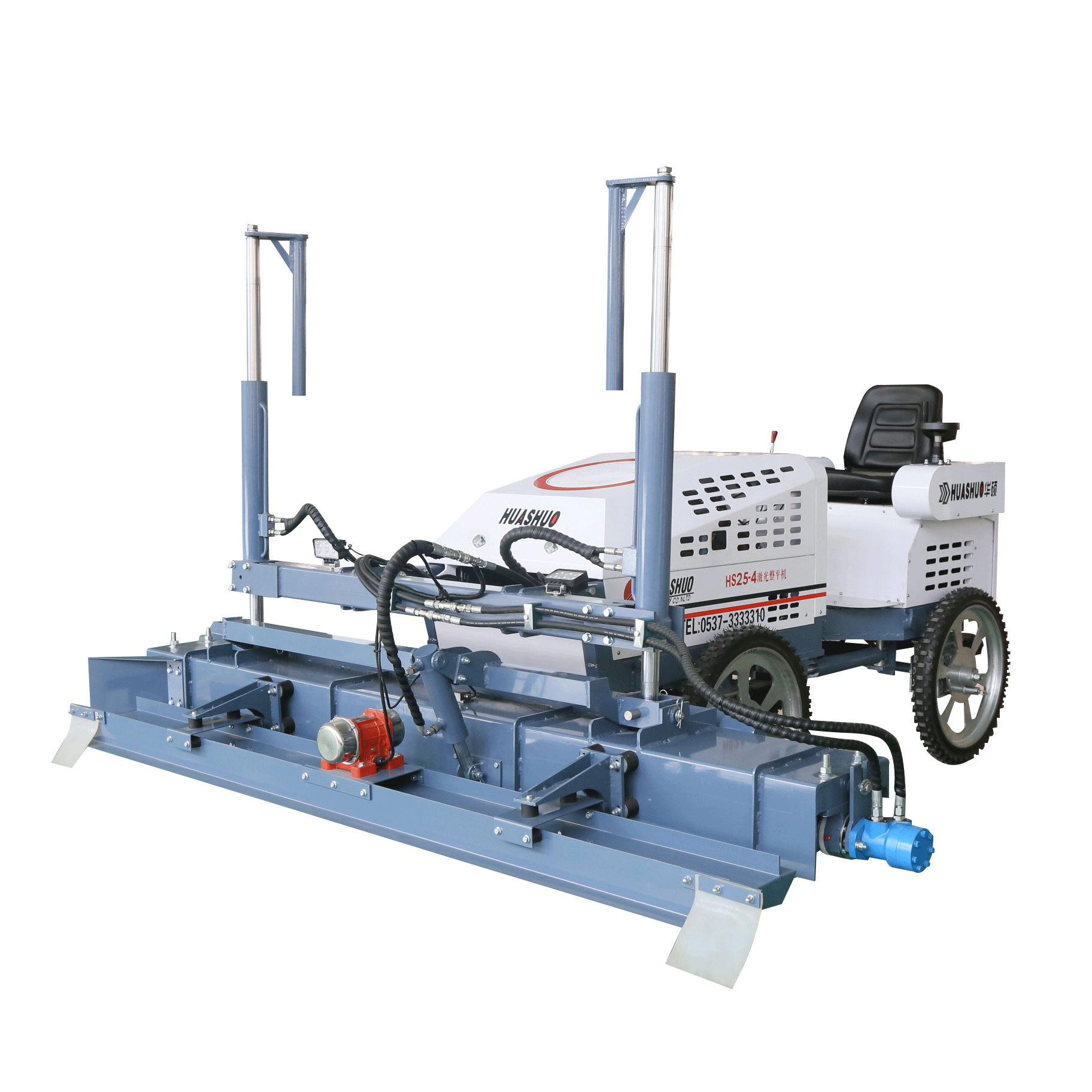

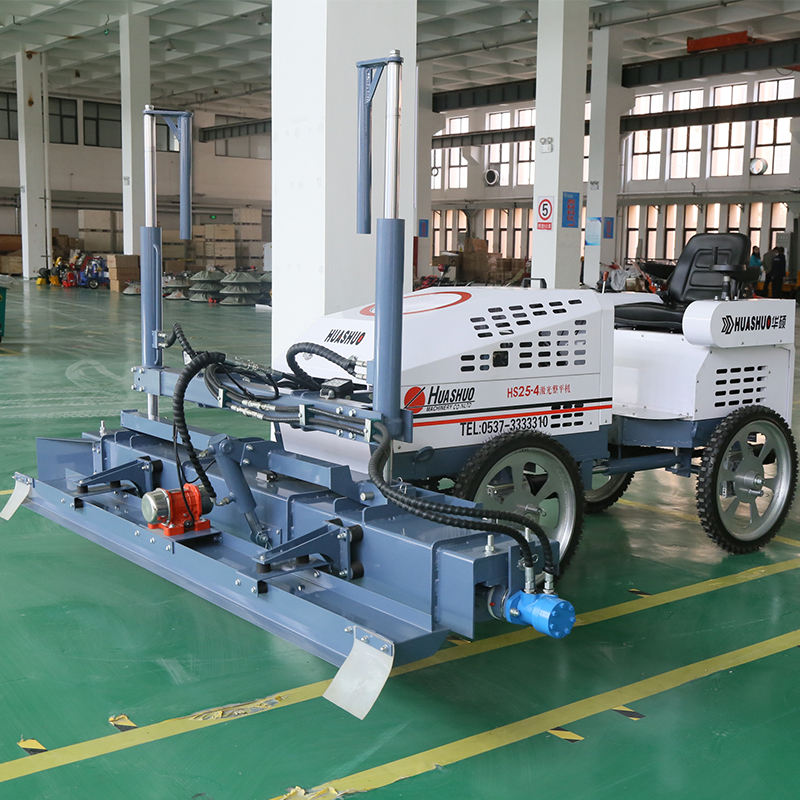

Model	HS25-4
Rated Power	777 kW
Roller Diameter	666 mm
Rated Speed	333 rpm
Paving Thickness	111 mm
Paving Width	2500 mm
Paving Speed	549 m/min
Weight	450 kg
Core Components	Engine, motor, pump
Inspection	Video outgoing-inspection, machinery test report

Additional Models

Model	Way of Walking	Leveling Thickness	Vibration Width	Speed	Vibration Motor RPM	Size (mm)	Body Weight (kg)

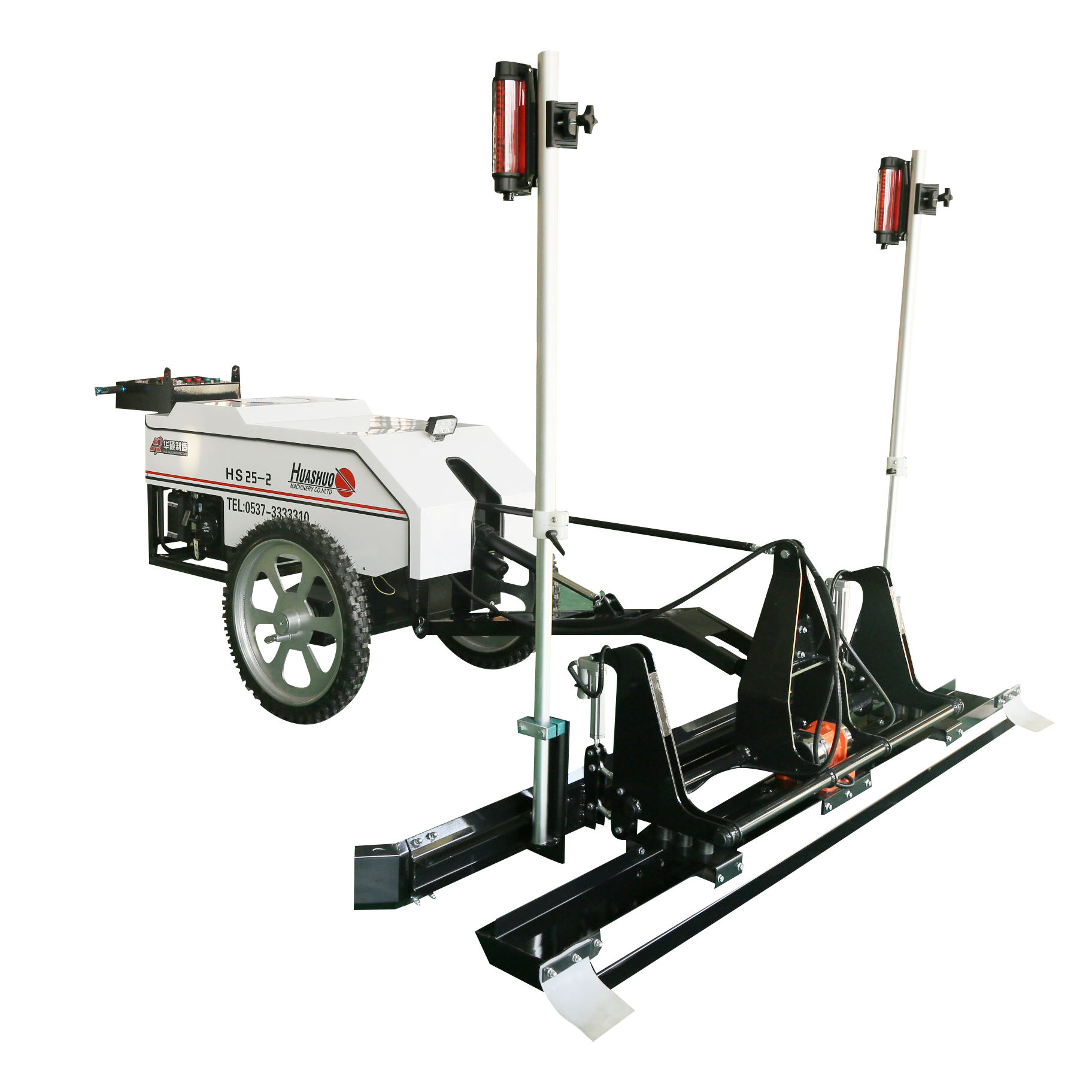

HS25-2	Two-wheeled	50–200 mm	2500 mm	4 m/min	4000	3220 × 2780 × 1172	280
HS25-4	Four-wheeled	50–300 mm	2500 mm	4 m/min	4000	3370 × 2890 × 1850	980

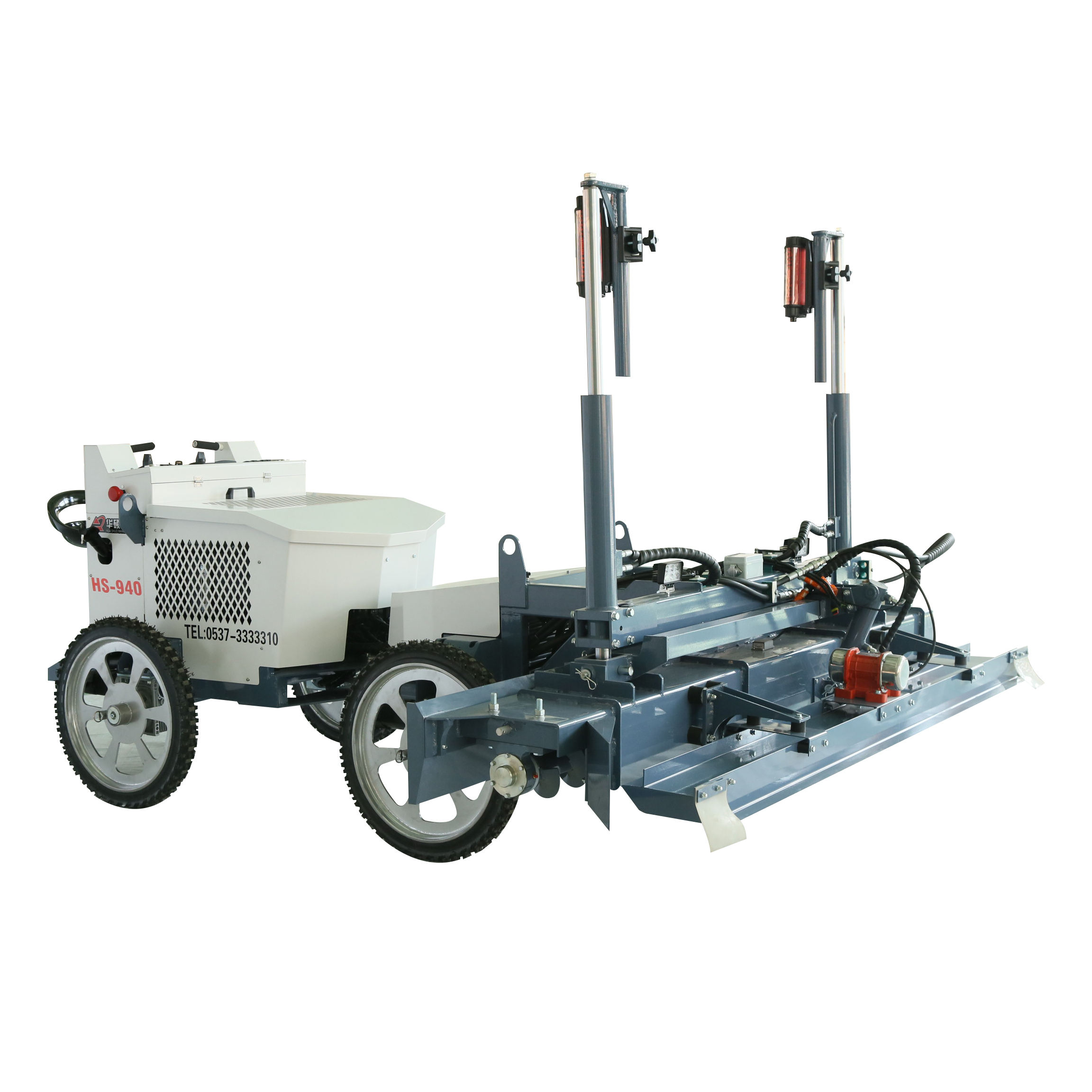

HS-940	Four-wheeled	50–300 mm	2500 mm	4 m/min	4000	3301 × 2960 × 1650	750
YZ30-4	Four-wheeled	50–400 mm	4000 mm	4 m/min	4000	5500 × 4300 × 2700	7200

Key Features

High Operating Efficiency: Achieves fast paving speeds while maintaining precise leveling.
Robust Construction: Sturdy build with core components including engine, motor, and pump for durability.
Laser Precision: Advanced laser guidance ensures accurate and even surface finishes.
Adjustable Paving Thickness: Handles paving from 50 mm up to 400 mm depending on model.
Large Paving Width: Works with widths from 2500 mm up to 4000 mm for broad coverage.
Cost-Effective Operation: Low maintenance requirements and durable construction reduce operational expenses.
User-Friendly Controls: Simple operation with video inspection and machinery test support.

Applications

Construction Sites: Efficient leveling and paving for walls, floors, and large slabs.
Manufacturing Plants: Precise surface finishing for industrial facilities.
Building Material Shops: Suitable for retail businesses offering paving services.
Home Improvement & DIY: Can be applied in private projects for high-quality results.
Energy & Mining Sectors: Supports large-scale paving and leveling operations.

Summary

The Automatic Laser Level Screed Machine provides high precision, durability, and efficiency for professional paving and leveling applications. With adjustable paving parameters, robust construction, and advanced laser guidance, it is ideal for construction, manufacturing, and industrial projects requiring smooth and accurate surfaces.
