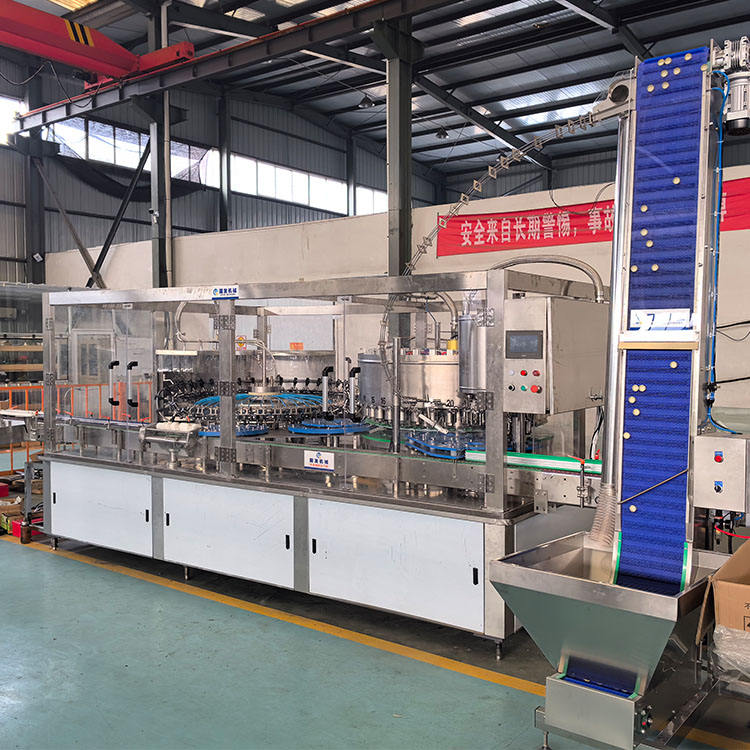

Automatic Rotary Bottle Filling, Washing & Capping Machine (Essential Oil / Cosmetic Line)
Product Overview
This automatic rotary filling, washing, and capping machine is designed for small bottle production lines, especially for cosmetic products, essential oils, oral liquids, beverages, and similar low-viscosity liquids.
It integrates bottle rinsing, precise filling, and secure capping into one fully automated system. With intelligent PLC control and touch screen operation, the machine ensures stable production, high accuracy, and reduced labor requirements. It is suitable for both medium and large-scale industrial applications.
Models Available
| Model | GFFDP18-12-4 | GFFDP24-18-6 |
|---|---|---|
| Bottle Washing Heads | 18 | 24 |
| Filling Nozzles | 12 | 18 |
| Capping Heads | 4 | 6 |
| Production Capacity (50ml) | 3000–4000 BPH | 5000–6000 BPH |
| Total Power | 3 kW | 5.5 kW |
| Weight | 2500 kg | 3500 kg |
| Dimensions (L×W×H) | 3800 × 1500 × 2200 mm | 4200 × 1500 × 2200 mm |
General Specifications
- Bottle Height: 50–320 mm (customizable)
- Output Range: 1000–10,000 bottles/hour (depending on configuration)
- Filling Material: Low-viscosity liquids (oil, wine, juice, oral liquid, etc.)
- Control System: PLC + Touch Screen
- Voltage: Industrial standard (customizable)
Key Features
- Fully automatic rotary structure for continuous production
- Integrated washing, filling, and capping system
- Overload protection with automatic stop function
- No bottle, no filling and no capping safety system
- High precision filling using flowmeter / piston / negative pressure system
- Supports different bottle shapes, sizes, and materials
- Automatic cap feeding system for improved efficiency
- Durable stainless steel construction for hygiene and long service life
Working Sections

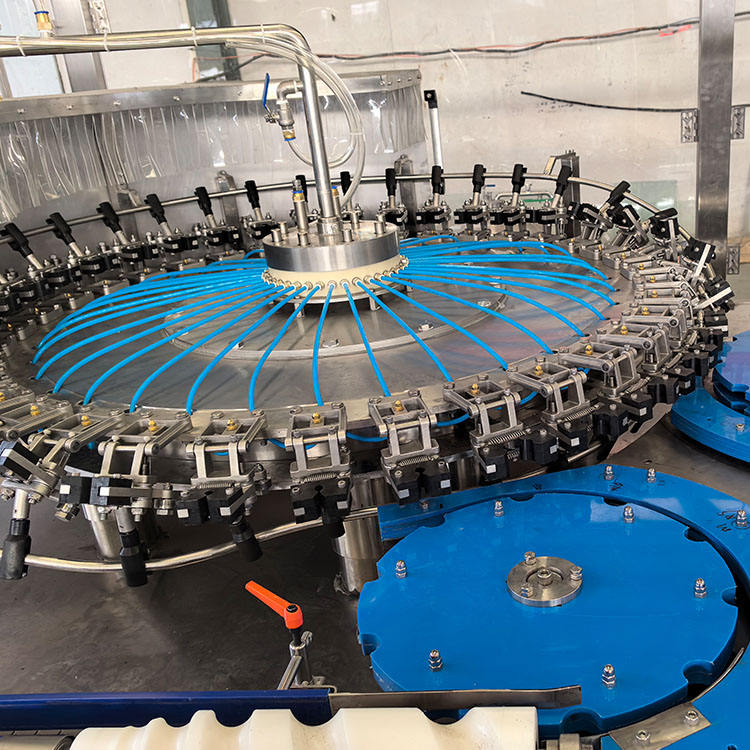

1. Bottle Washing Section
- Internal and external bottle rinsing
- Adjustable bottle clamp system for different production needs

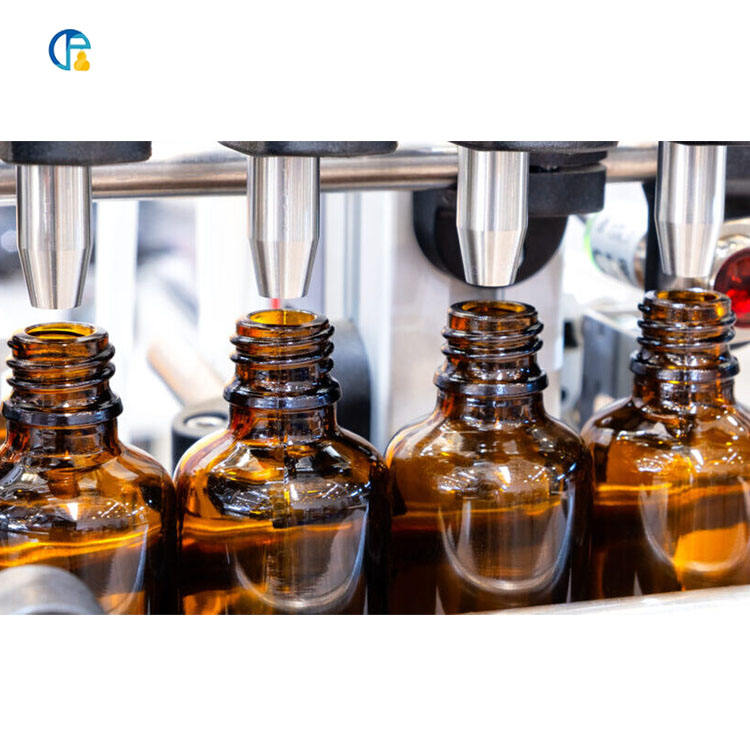

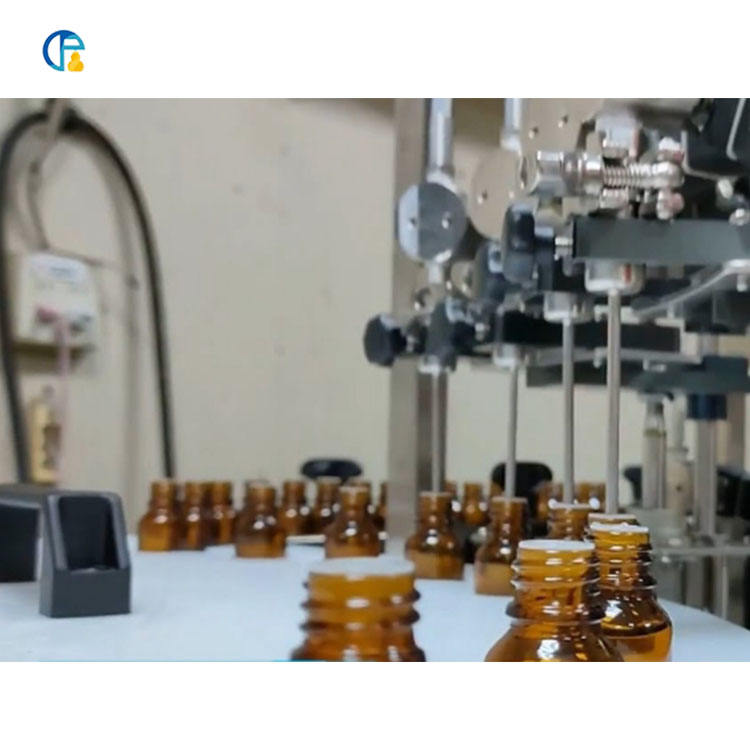

2. Filling Section
- Flowmeter / piston / vacuum filling options
- High accuracy and stable volume control

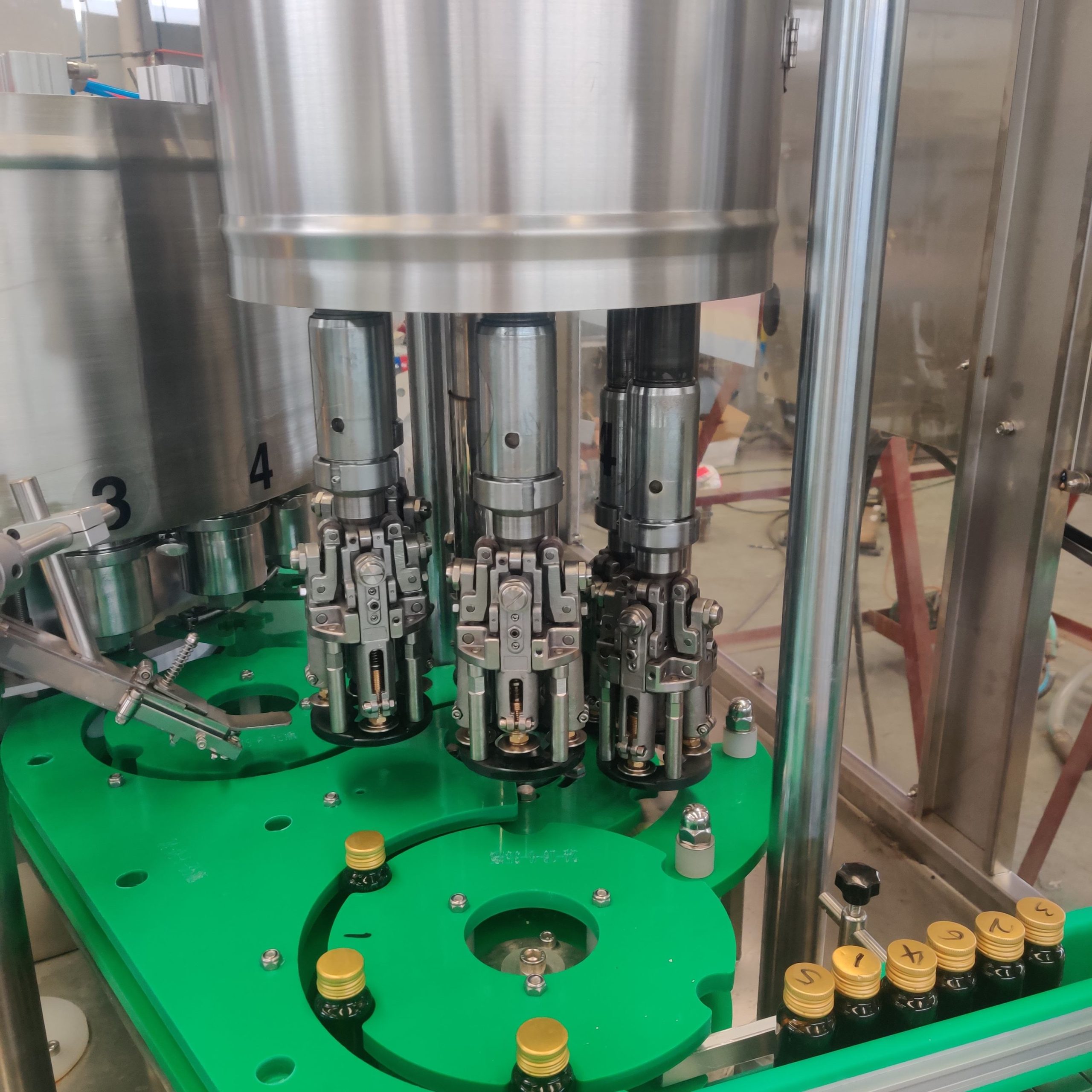

3. Capping Section
- Automatic cap placement and tightening
- No bottle = no cap safety system

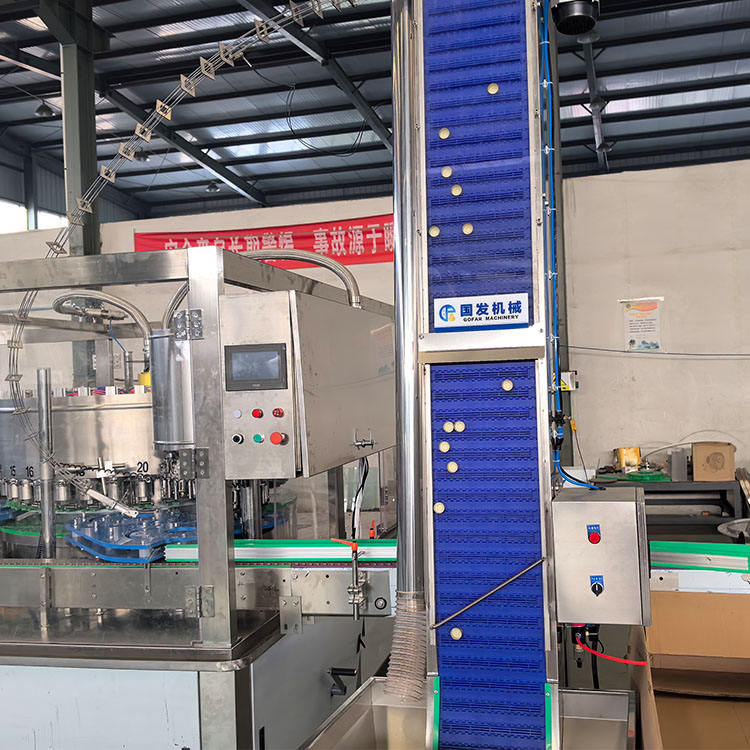

4. Cap Lifting System
- Automatically feeds caps to sealing unit
- Reduces manual labor and improves efficiency
Applications
- Cosmetic product filling (essential oils, serums, lotions)
- Beverage production (juice, wine, alcohol)
- Pharmaceutical oral liquid filling
- Chemical liquid packaging
- Food and beverage bottling industries
Summary
This automatic rotary bottle filling machine is a complete production solution combining washing, filling, and capping in one system. With high-speed operation, strong automation, and flexible customization options, it is ideal for modern liquid packaging industries aiming for efficiency, accuracy, and scalable production.
