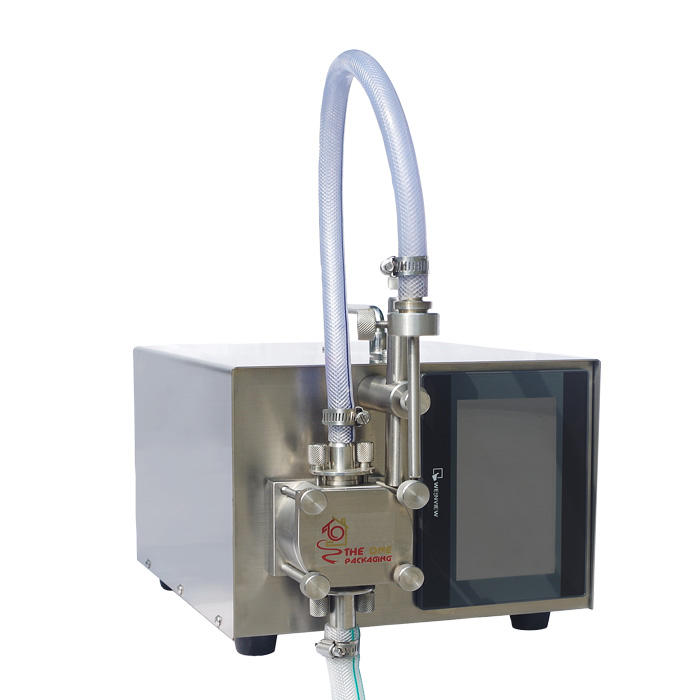

Semi-Automatic Gear Pump Liquid Filling Machine (TODF-100)
Introduction
The Semi-Automatic Gear Pump Liquid Filling Machine is designed for accurate and efficient filling of a wide range of liquids including beverages, perfumes, oils, and chemical solutions. It combines gear pump precision with flexible volume control, making it suitable for small to medium production environments where versatility is important.
Specifications
| Feature | Details |
|---|---|
| Model | TODF-100 |
| Type | Semi-Automatic Gear Pump Filling Machine |
| Material | Industrial-grade stainless steel components |
| Voltage | AC 110V / 220V |
| Power | 40W–700W (depending on configuration) |
| Filling Range | 2 ml – 5000 ml (adjustable) |
| Max Flow Rate | Up to 5000 ml/min |
| Filling Accuracy | ±0.5% – 1% |
| Filling Head | Single nozzle |
| Control System | Servo motor + PLC + touch screen |
| Dimensions | 310 × 370 × 180 mm |
| Packing Size | 57 × 42 × 32 cm |
| Weight | Approx. 26 kg (31.5 kg with transformer) |
Key Features
- High-Precision Filling System
Gear pump technology ensures stable and accurate liquid dosing. - Wide Filling Range
Supports from 2 ml up to 5 liters, suitable for many product types. - Servo + PLC Control
Enables stable operation and precise adjustment via touch screen. - Anti-Foaming Function
Dual-speed filling (fast then slow) reduces bubbles and overflow. - Easy Cleaning Design
Pump head can be quickly disassembled for fast maintenance. - Flexible Production Use
Suitable for both manual pedal operation and semi-automatic production lines.
Applications
- Beverage filling (juice, water, flavored drinks)
- Perfume and cosmetic liquid filling
- Essential oils and chemical liquids
- Food industry liquids (sauces, oils, syrups)
- Pharmaceutical liquid filling
- Small factory and workshop production lines
Summary
The TODF-100 Semi-Automatic Gear Pump Filling Machine is a compact yet highly precise solution for liquid packaging. With adjustable volume control, strong accuracy, and wide application compatibility, it is ideal for businesses that require flexible and reliable filling performance across multiple liquid products.
