100kg/h Output French Fries Production Machine

---

Briefing

The product is a 100kg/h Output Potato Chips Machine. This machine is designed for efficient and high-capacity use in various food processing settings, combining modern design with high-quality materials.

---

Key Specifications

• Type: Automatic
• Material: 304 Stainless Steel
• Operation: Fully Automatic
• Weight: Varies based on model
• Dimensions: Customizable
• Design Style: Modern and Functional
• Features: Easy Operation, High Efficiency
• Core Components: Motor
• Voltage: 220V / 380V
• Power: 200W
• Capacity: 100 kg/h
• Video Outgoing Inspection: Provided
• Machinery Test Report: Provided

---

Applications

• Potato Chips Processing: Ideal for use in potato chips production.
• Food Processing: Suitable for various food processing applications.
• Commercial Use: Designed for commercial use in food factories, farms, restaurants, and food shops.

---

Summary

This 100kg/h output potato chips machine offers a powerful and efficient solution for enhancing the productivity and functionality of various food processing spaces. It is designed for fully automated operation, making it suitable for different environments. The machine is customizable in terms of size and specification, providing flexibility for different needs. Its durable construction and modern design ensure reliable performance and a touch of sophistication.

---

5-in-1 Production Line: Potato Chips French Fries Banana Chips

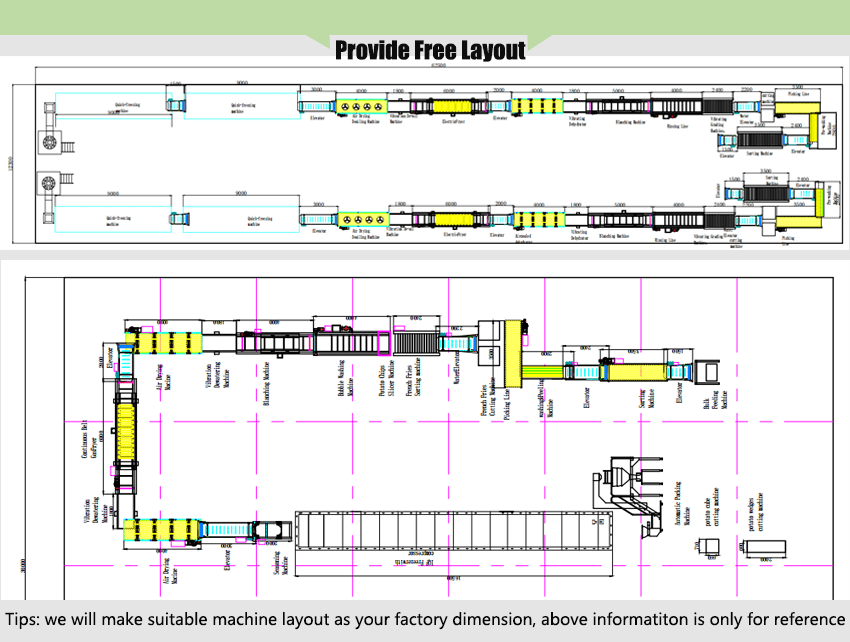

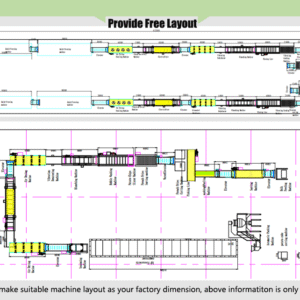

The whole production line is done by cleaning, peeling, slicing (fries cutting), washing, blanching, rinsing, dehydration, frying, oil flavoring (if needed), packaging, etc. We can provide free machine layout and technical guidance, to make sure that you fry out high-quality chips or fries. It can also be used as a frozen fries quick-freezing machine.

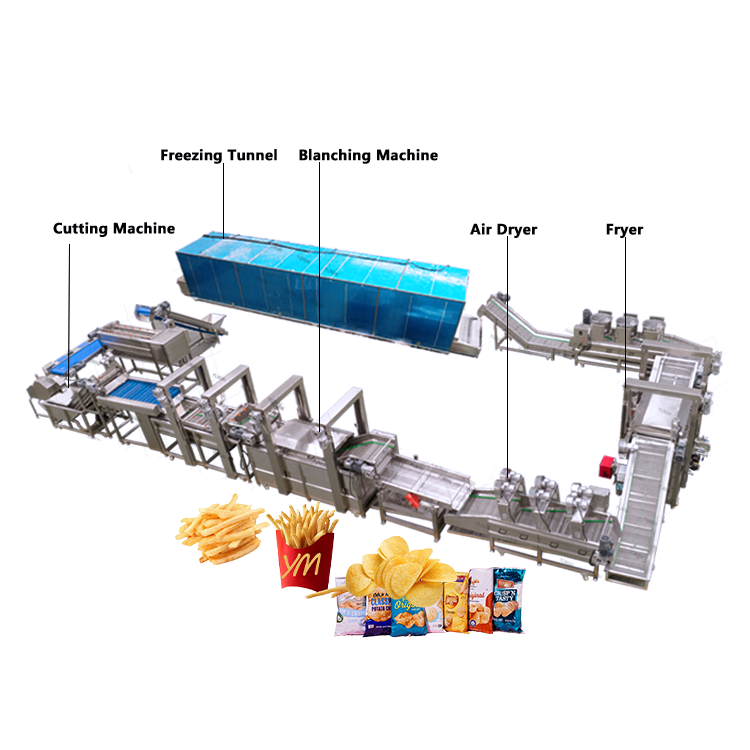

Fully Automatic Frozen French Fries/Potato Chips Production Process

No.	Machine Name	Dimension	Power	Quantity	Material
1	PVC Elevator	2400×700×1600 mm	0.75 kw	1 set	SUS304
2	Potato Washing & Peeling Machine	3400×1000×1400 mm	4.3 kw	1 set	SUS304
3	Sorting Conveyor	3000×700×900 mm	0.75 kw	1 set	SUS304
4	French Fries/Potato Chips Cutting Machine	950×800×950 mm	1.5 kw	1 set	SUS304
5	Water Tank Elevator	2200×800×1600 mm	0.75 kw	1 set	SUS304
6	Fries Sorting Machine	2400×1000×1300 mm	2 kw	1 set	SUS304

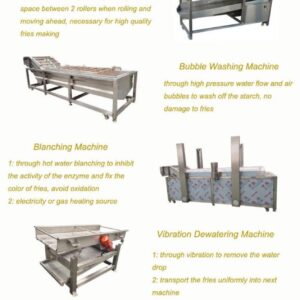

7	Bubble Washing Machine	4000×1200×1400 mm	6 kw	1 set	SUS304
8	Blanching Machine	5000×1200×1400 mm	14 kw	1 set	SUS304
9	Vibrating Dewatering Machine	1800×1000×1300 mm	0.36 kw	1 set	SUS304
10	Air Drying Machine	4000×1000×1600 mm	7.5 kw	1 set	SUS304
11	Mesh Belt Elevating Conveyor	2000×800×1300 mm	0.75 kw	1 set	SUS304
12	Continuous Frying Machine	6000×1200×1400 mm	200 kw	1 set	SUS304
13	Vibrating De-oiling Machine	1800×1000×1300 mm	0.36 kw	1 set	SUS304
14	Cooling Machine	4000×1000×1600 mm	7.5 kw	1 set	SUS304
15	Mesh Belt Elevating Conveyor	2000×800×1300 mm	0.75 kw	1 set	SUS304
16	IQF Freezer Tunnel / Seasoning Machine	11500×2200×2200 mm	50 kw	1 set	SUS304
17	Elevating Conveyor	3000×950×1400 mm	1.1 kw	1 set	SUS304
18	Automatic Packing Machine	5000×2000×3400 mm	6.7 kw	1 set	SUS304
