Ultrasonic Level Sensor

Ultrasonic Liquid Level Sensor with Wireless Control

Product Overview

The Ultrasonic Liquid Level Sensor is an advanced device designed for precise monitoring and control of liquid levels in tanks and containers. Using ultrasonic technology, it measures liquid levels without direct contact, ensuring accurate readings and long-term reliability.

The device supports wireless control through Tuya smart home integration, allowing users to remotely monitor and manage liquid levels via a mobile app. It is suitable for industrial, agricultural, and domestic applications requiring efficient liquid level management.

Specifications

• Model: Ultrasonic Liquid Level Sensor
• Measurement Range: 0.2m – 5m
• Accuracy: ±1%
• Frequency: 40kHz
• Output Signal: Digital signal via Tuya wireless control
• Power Supply: DC 12–24V
• Material: IP67 waterproof enclosure
• Communication Protocol: Wi-Fi / Tuya Smart app
• Dimensions: 70mm × 60mm × 200mm
• Weight: 0.5 kg
• Operating Temperature: -20°C to 70°C
• Mounting Type: Adjustable bracket
• Compatibility: Tuya app support

Key Features

✔ Non-Contact Measurement – Ultrasonic sensing ensures safe and accurate level detection

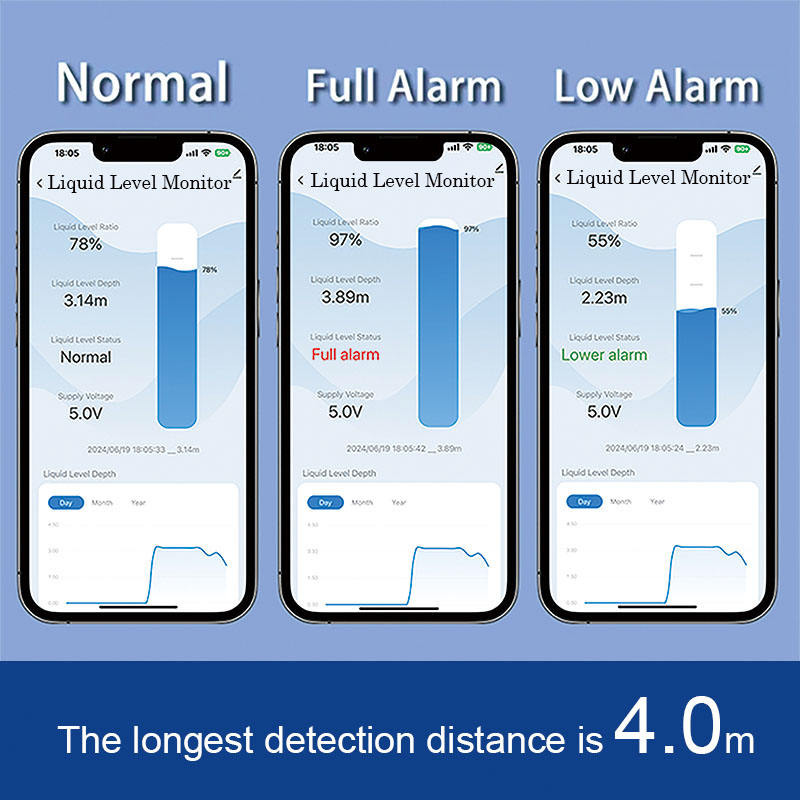

✔ Wireless Control – Remote monitoring via Tuya smart app
✔ High Accuracy – ±1% precise measurement performance
✔ Wide Application Use – Suitable for industrial and domestic liquids
✔ IP67 Waterproof Design – Reliable operation in harsh environments

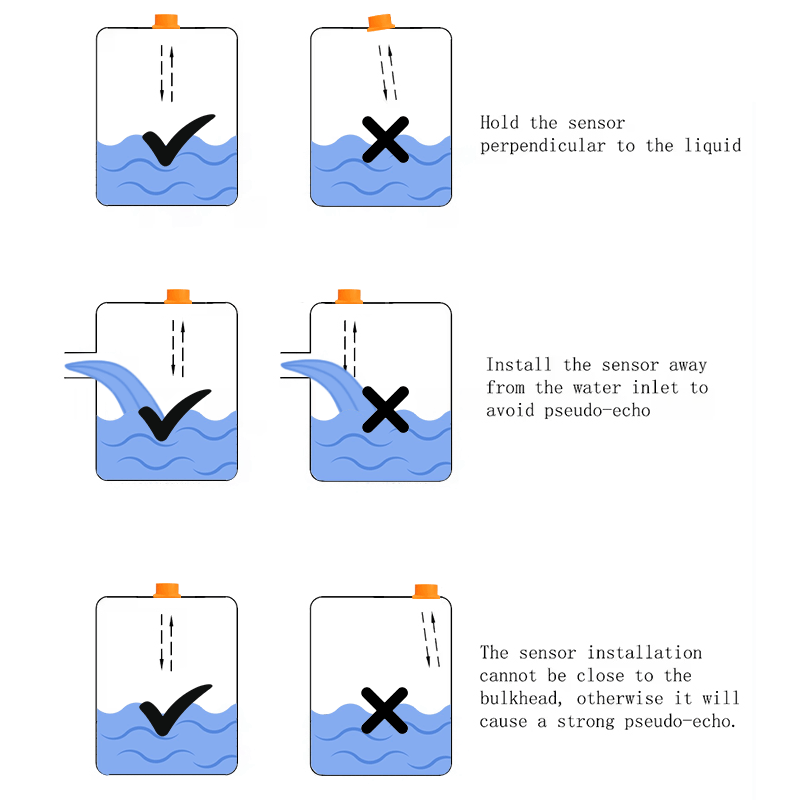

✔ Easy Installation – Simple mounting with adjustable bracket
✔ Low Power Consumption – Energy-efficient operation

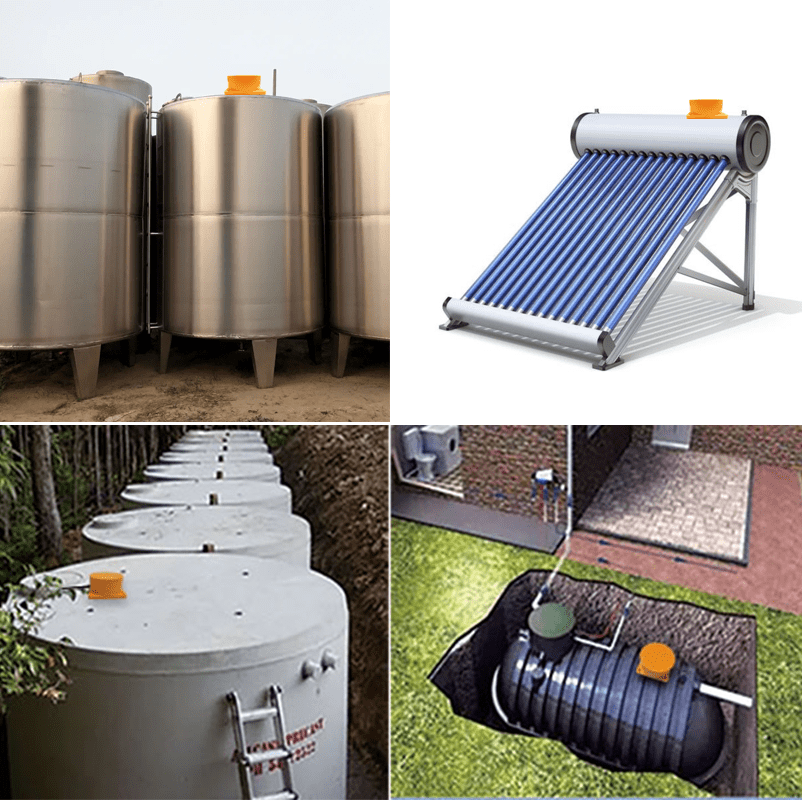

Applications

• Home water tank monitoring
• Agricultural irrigation systems
• Industrial liquid storage tanks
• Wastewater treatment systems
• Water supply management
• Fuel tank level monitoring

Conclusion

The Ultrasonic Liquid Level Sensor with Wireless Control is a smart and reliable solution for accurate liquid level monitoring. With its non-contact design, Tuya smart connectivity, and durable waterproof construction, it provides efficient and convenient control across multiple applications.
