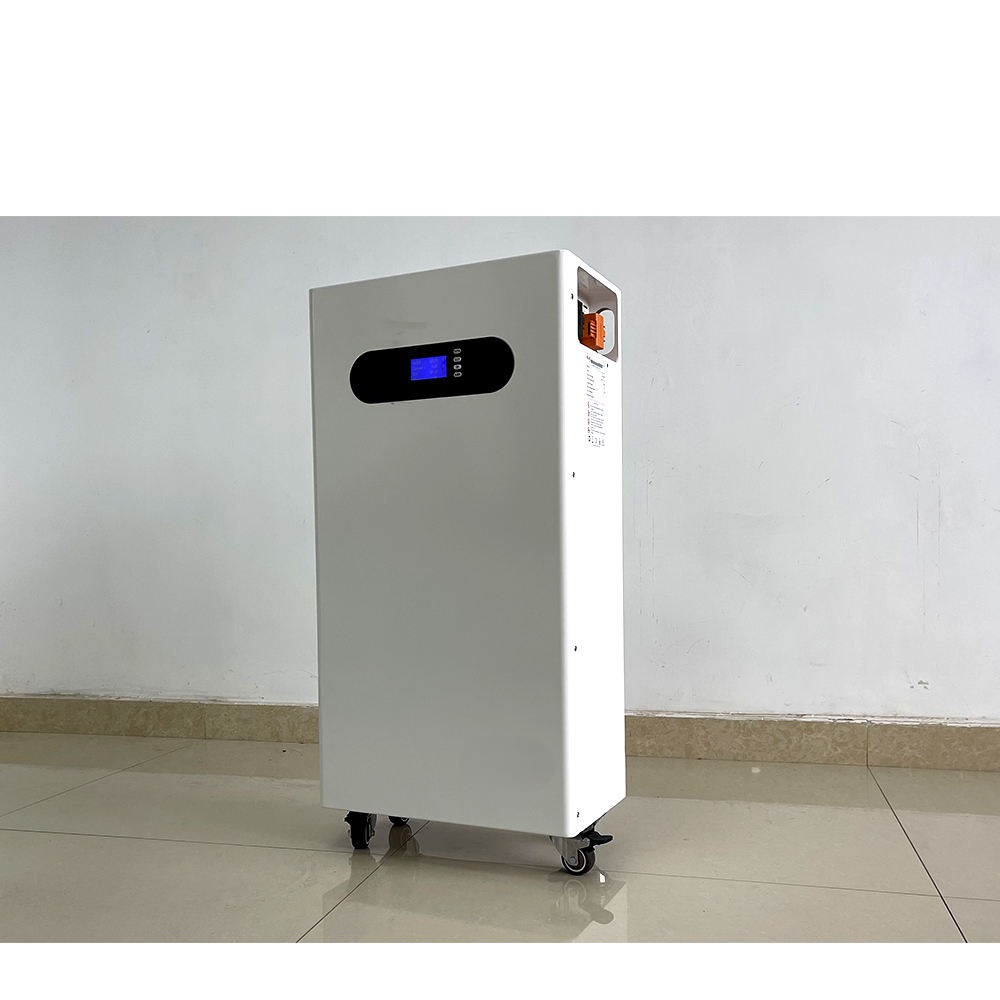

All-in-One Lithium-Ion Energy Storage Battery System

Introduction

This all-in-one lithium-ion battery system is a high-performance energy storage solution designed for off-grid, hybrid, and backup power applications. Built with advanced LiFePO4 (LFP) chemistry, it delivers superior safety, long cycle life, and stable energy output. Its flexible wall-mounted or wheeled design makes it suitable for residential, commercial, and industrial energy systems requiring reliable and scalable storage.

Specifications

Specification	Details
Energy Capacity	10–20 kWh
Battery Type	LiFePO4 (LFP)
System Type	Wall-mounted / Wheeled
Nominal Voltage	51.2V
Cycle Life	>6000 cycles @ 25°C
Design Life	10+ years
Discharge Voltage Range	40–48V
Charge/Discharge Current	80A recommended / 100A max
Internal Resistance	≤30 mΩ
Power Consumption	<2W (working), <100mW (sleep)
Protection Rating	IP68
Communication Ports	CAN, RS-485, RS-232
Dimensions	440 × 870 × 255 mm
Weight	125 kg
Warranty	5 Years

Key Features

• All-in-One Energy System:
  Integrated storage, control, and communication in a single unit.
• Advanced LiFePO4 Technology:
  High safety, thermal stability, and extended cycle life.
• Flexible Installation Options:
  Can be wall-mounted or installed as a mobile wheeled unit.
• Ultra-Long Lifespan:
  Over 6000 charge cycles with 10+ years operational life.
• IP68 Waterproof & Dustproof:
  Suitable for indoor and outdoor harsh environments.
• High Efficiency Design:
  Low energy loss with minimal standby consumption.
• Smart Communication System:
  Supports CAN, RS-485, and RS-232 for system integration.

Applications

• Residential solar energy storage systems
• Commercial and industrial backup power solutions
• Off-grid renewable energy systems (solar / wind)
• UPS and emergency power backup
• Remote or rural electrification projects
• Hybrid energy management systems

Why Choose This Product?

Reliable Long-Term Energy Storage

Designed for stability, safety, and long operational life.

Flexible Installation

Wall-mounted or mobile configuration adapts to different setups.

High Safety Standards

LiFePO4 chemistry ensures thermal and chemical stability.

Smart Energy Integration

Supports modern energy management and monitoring systems.

Conclusion

This all-in-one lithium-ion battery system offers a durable, efficient, and intelligent energy storage solution for modern power needs. With its long cycle life, IP68 protection, and flexible installation design, it is ideal for residential, commercial, and off-grid applications requiring dependable and sustainable energy storage.
