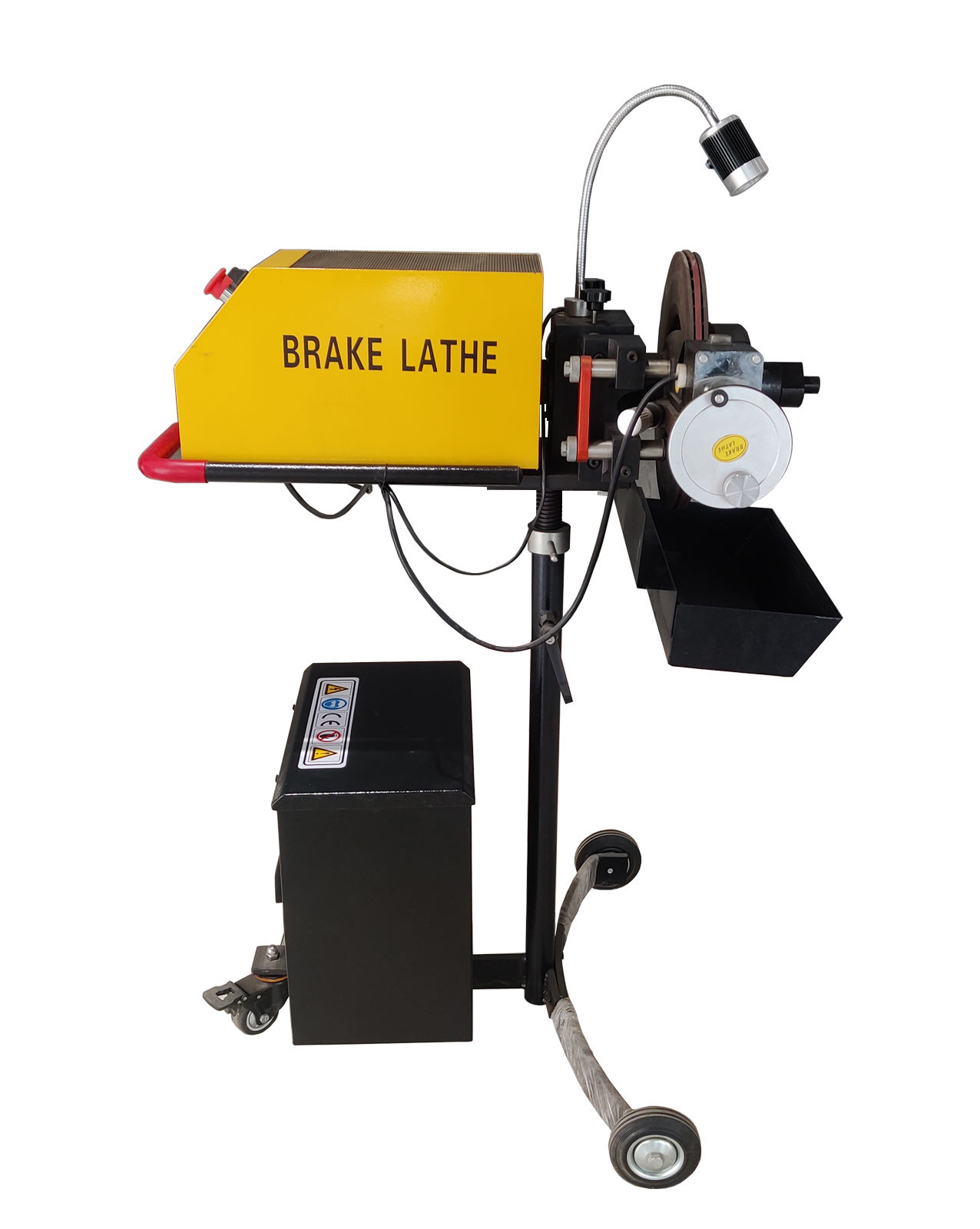

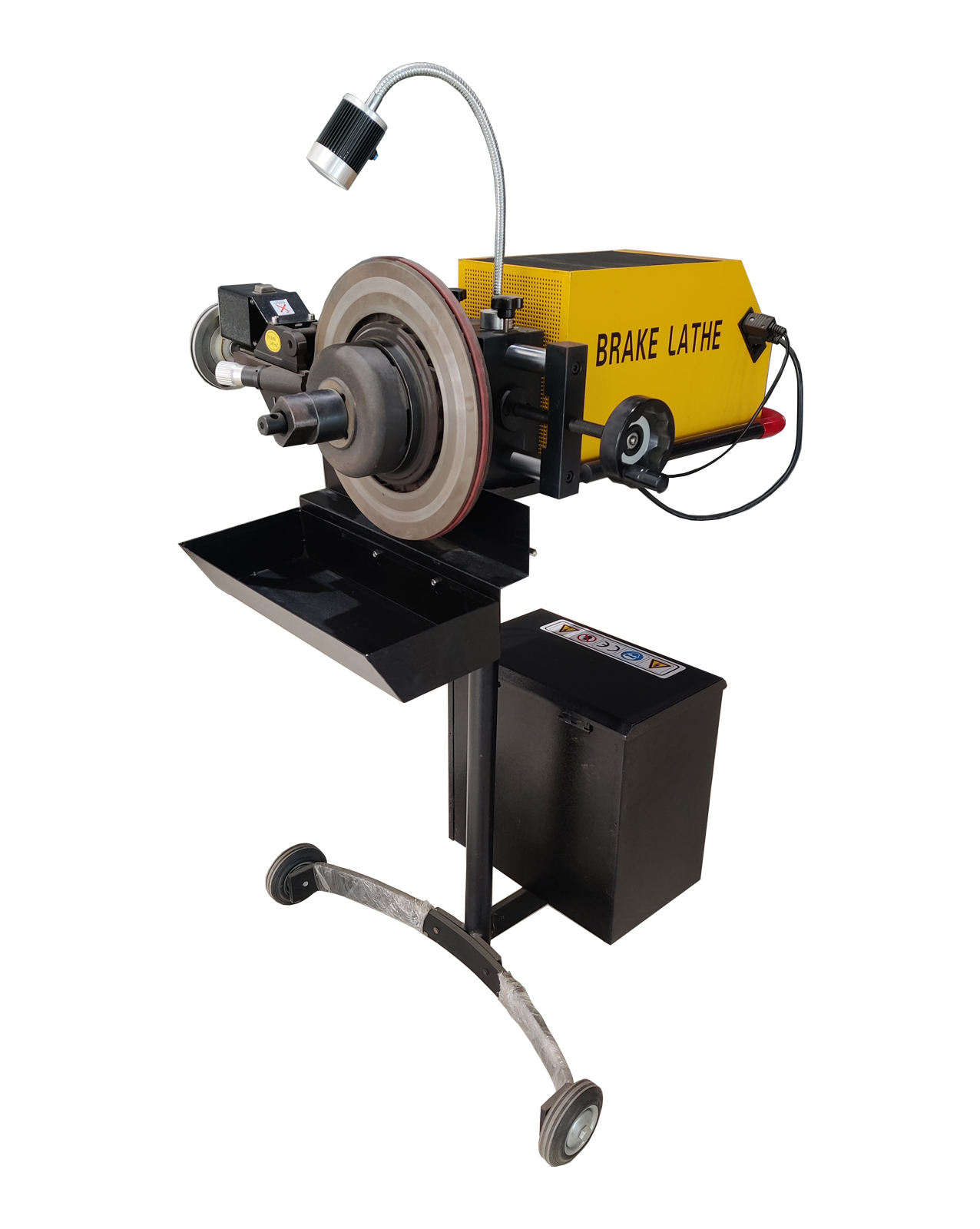

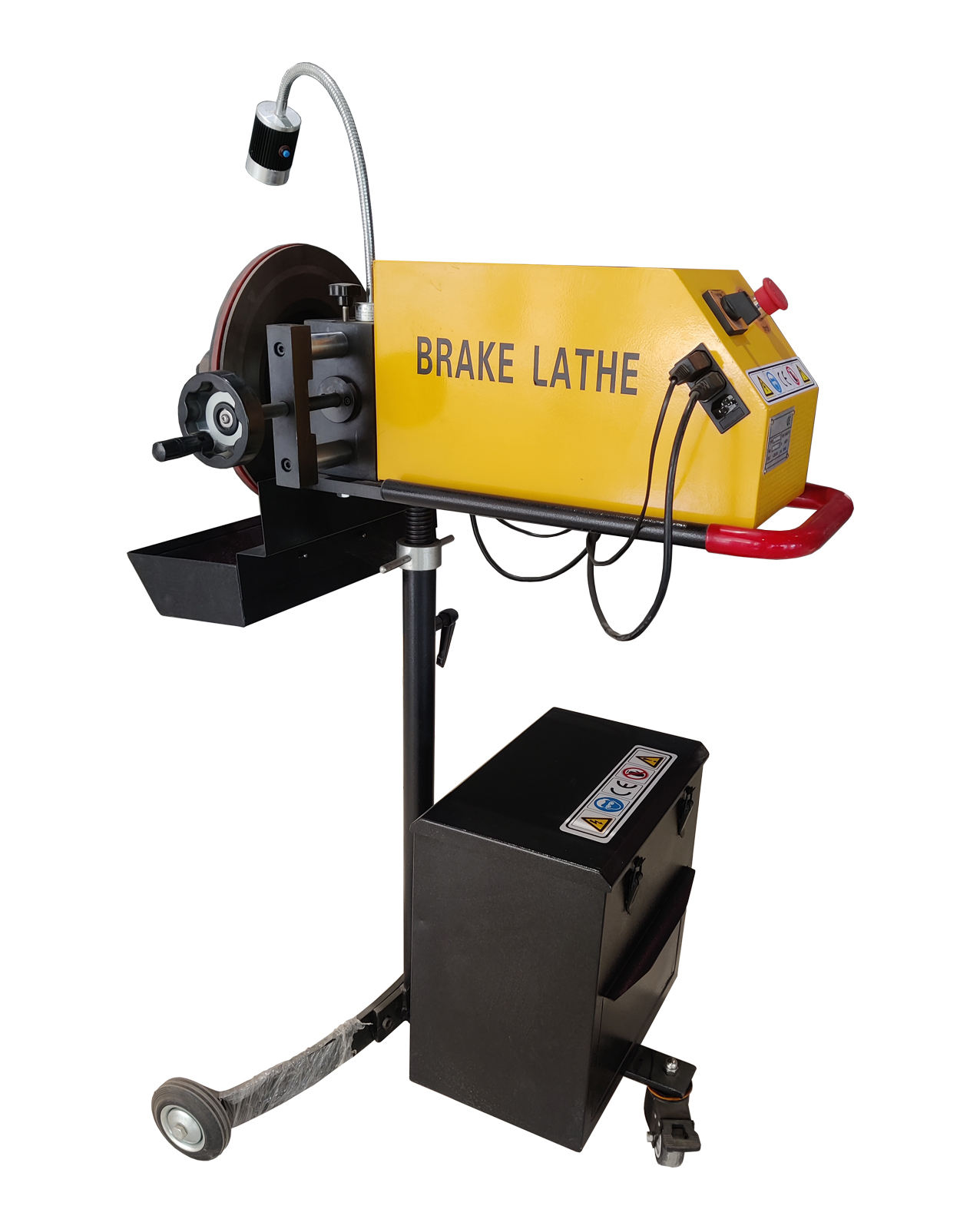

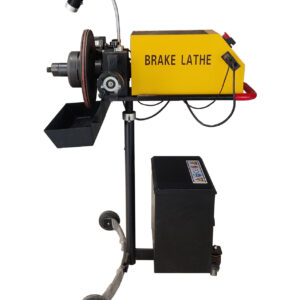

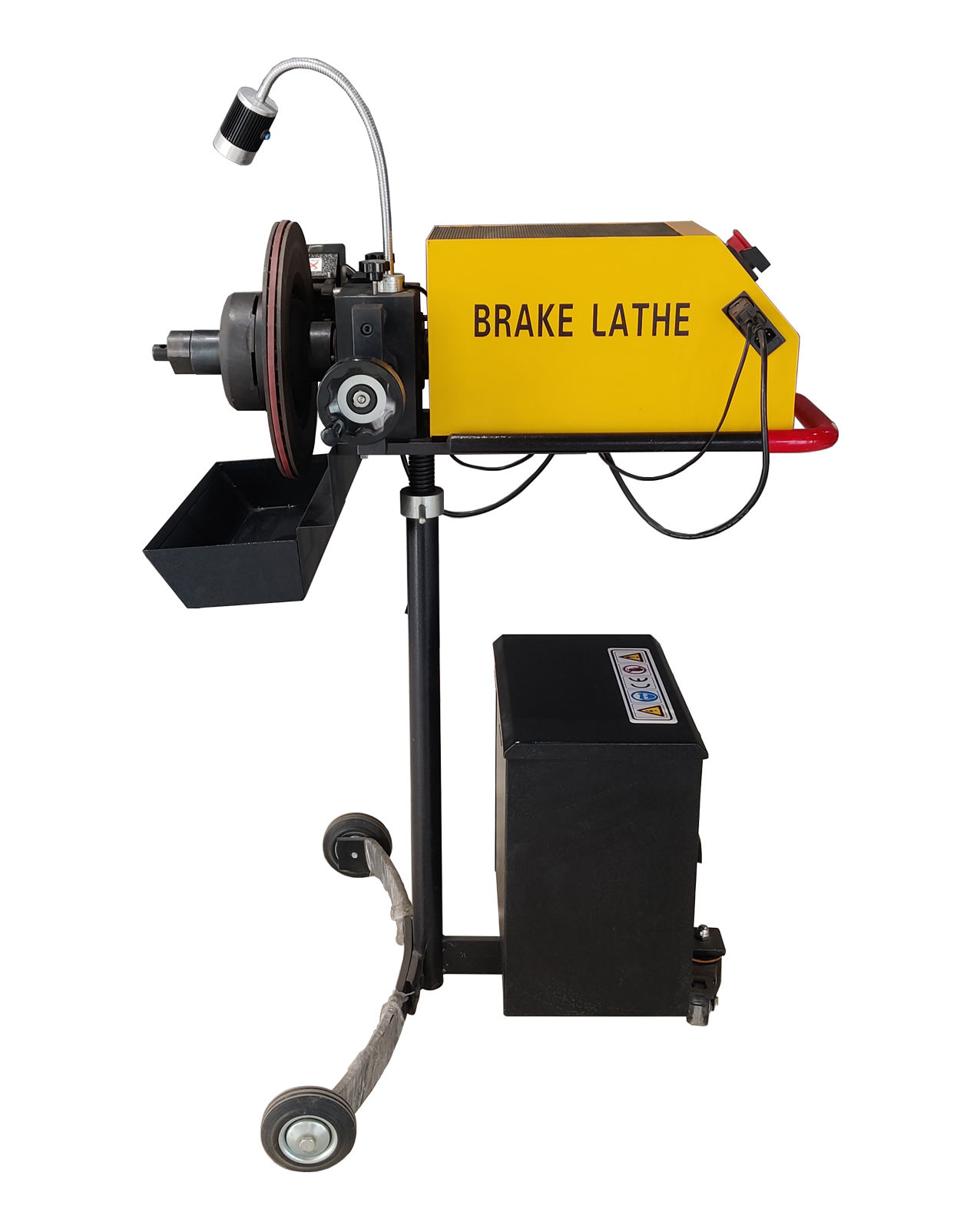

The New Brake Disc Aligner

The New Brake Disc Aligner

Technology Parameter

Working height min/max: 1 / 1.25 m
Drive speed: 98 rpm
Electrical specifications: 220V / 110V
Ambient temperature range: -20℃ to 40℃
Turning accuracy: ≤ 0.005 mm
Brake disc run out: ≤ 0.005 mm
Brake disc thickness variation: 0.005–0.01 mm
Brake disc surface roughness: Ra 1.5–2
Maximum diameter of brake disc: 380 mm
Maximum brake disc thickness: 42 mm
Adjustment knob accuracy: ≤0.02 to ≤0.01 mm
Feed rate: 8.5 mm/min
Electrical frequency: 50Hz / 60Hz
Net weight: 7.3 kg

Key Attributes

Industry-specific attributes
Max. Length of Workpiece (mm): 1.25 mm
Machining Capacity: Light Duty

Other attributes
Type: Horizontal
Weight (kg): 7.3 KG
Warranty: 1 Year
Key Selling Points: Easy to Operate
Machinery Test Report: Provided
Video Outgoing-inspection: Provided

Working height min/max: 1 / 1.25 m
Drive speed: 98 rpm
Electrical specifications: 220V / 110V / 50Hz / 60Hz
Ambient temperature range: -20℃ to 40℃
Turning accuracy: ≤ 0.005 mm
Brake disc run out: ≤ 0.005 mm
Maximum brake disc thickness: 42 mm
Brake disc thickness variation: ≤0.02 to ≤0.01 mm
Net weight: 7.3 kg
Feed rate: 8.5 mm/min

Packaging and delivery

Packaging Details: Carton & Wooden case
Selling Units: Single item
Single package size: 60 × 60 × 60 cm
Single gross weight: 68.000 kg
