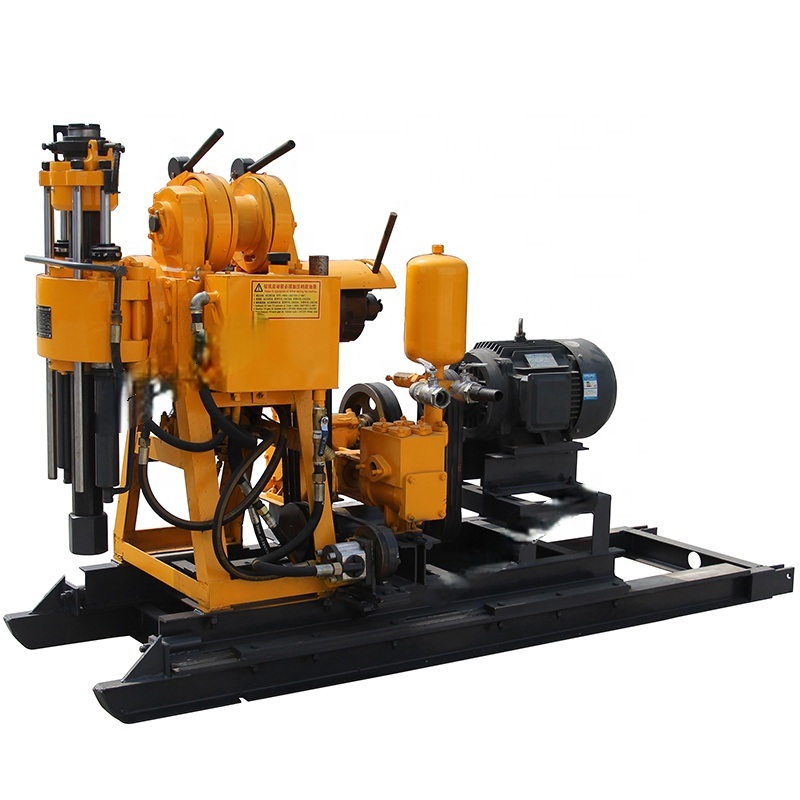

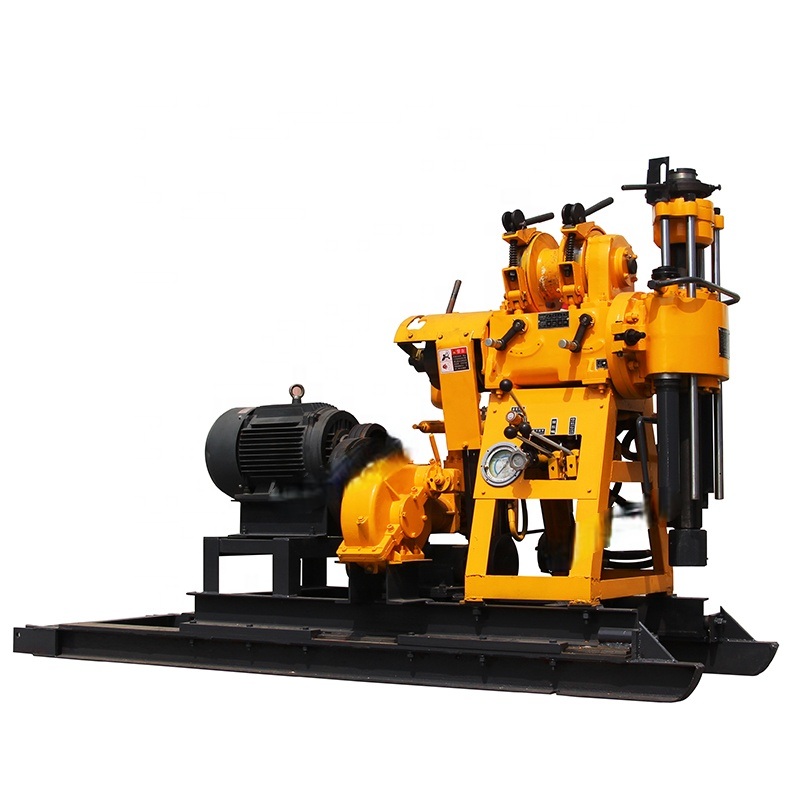

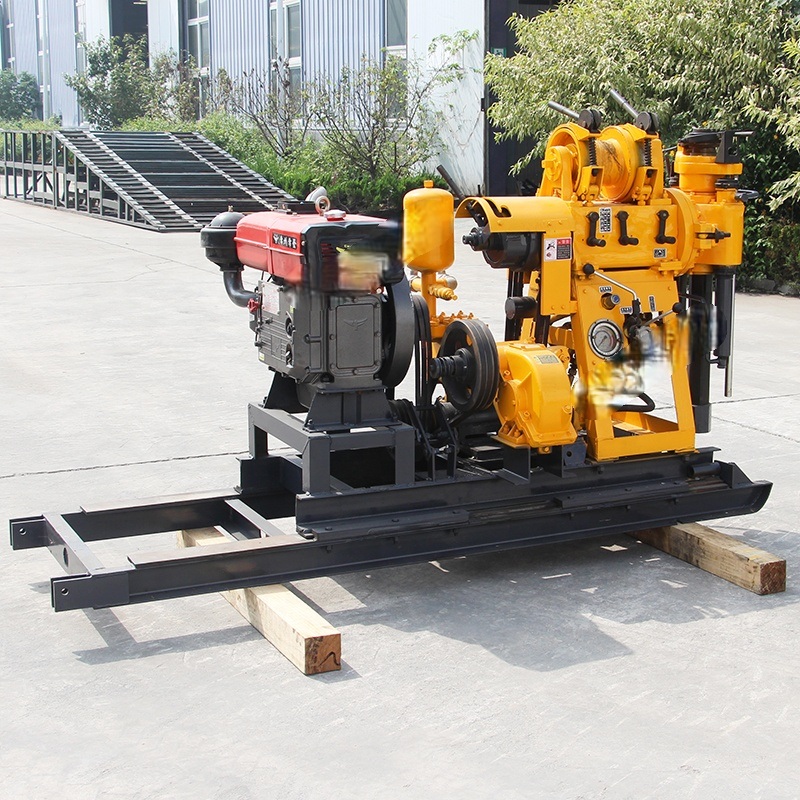

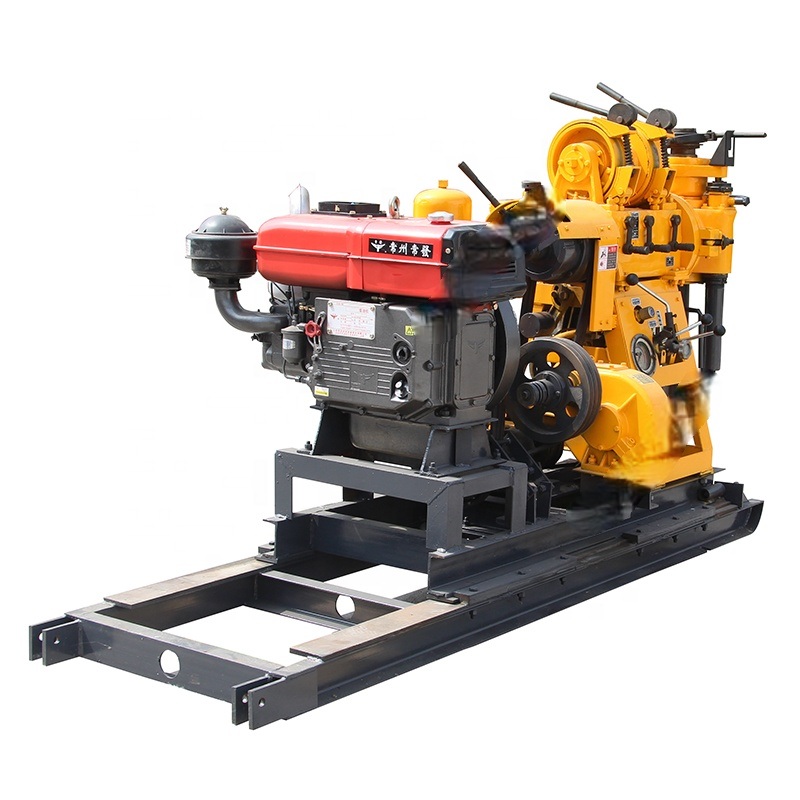

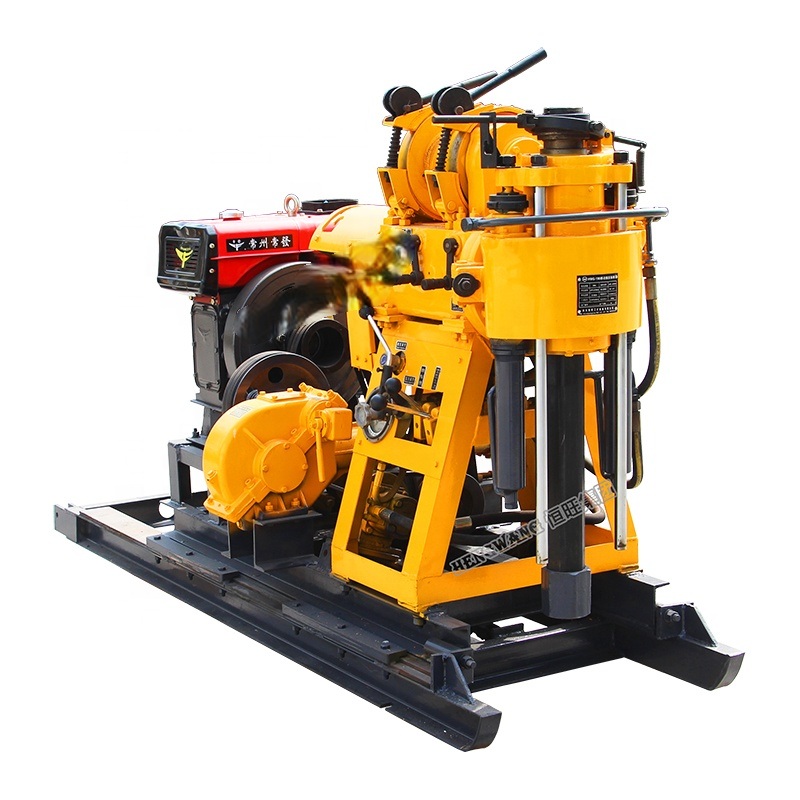

Hydraulic Rotary Water Well Drilling Rig

Hydraulic Rotary Water Well Drilling Rig

Key Attributes

Drilling Method – Hydraulic rotary, Air DTH hammer drilling, Mud drilling
Max Drilling Depth – 100 m – 1500 m (model dependent)
Drilling Diameter – Φ105 – Φ900 mm
Power Source – Diesel engine (Cummins type, 22HP–32HP / up to 179 kW)
Rotary Torque – 12,900 – 25,800 Nm
Rotation Speed – 0–70 / 70–140 rpm (stepless adjustment)
Push-down Capacity – 13 T
Pull-back Capacity – 80 T
Chassis Type – Crawler / Wheel / Tractor mounted (optional)
Control System – Centralized hydraulic control console
Mud Pump – BW1500/12
Winch Lifting Force – 4 T
Net Weight – Approx. 32,000 kg (large models)
Warranty – 1 Year

Key Features

Hydraulic rotary drilling system for high efficiency
Supports DTH hammer and mud drilling methods
High torque for deep and hard formation drilling
Crawler chassis for stable field operation
Centralized control system for easy handling
Fast lifting and drilling cycle efficiency
Strong pulling and push-down force
Suitable for multiple geological conditions

Applications

Water well drilling
Geological exploration
Mining and open pit drilling
Geotechnical and foundation engineering
Geothermal and monitoring boreholes
Grouting and anchor reinforcement projects

Summary

The Hydraulic Rotary Water Well Drilling Rig is a high-power, multi-functional drilling machine designed for deep and complex drilling operations. With strong hydraulic torque, flexible drilling methods, and heavy-duty construction, it is suitable for water wells, mining, and large-scale engineering projects.
