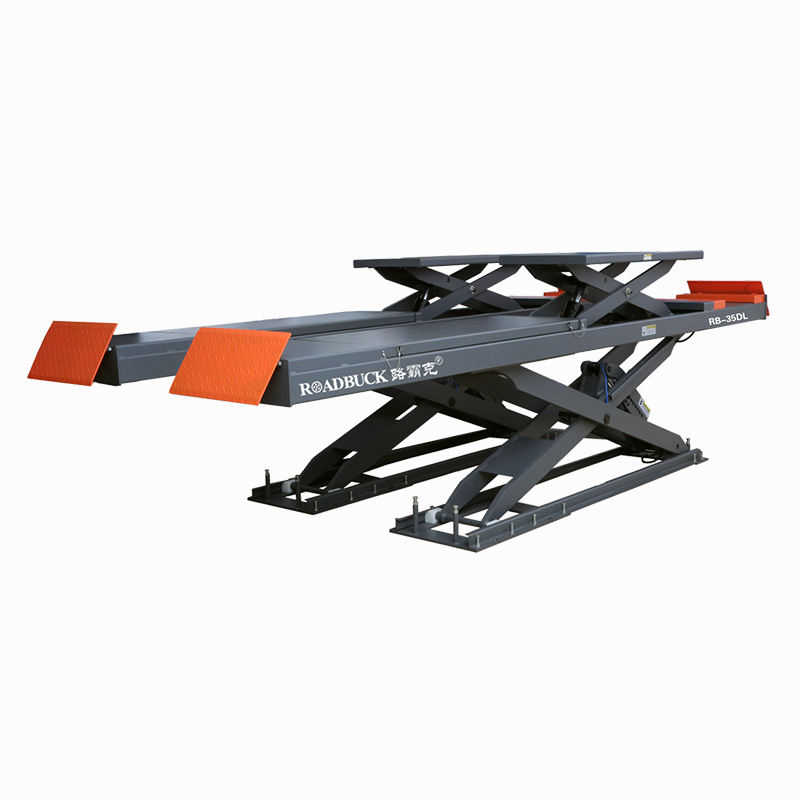

Double Lever 3.5T Car Lift Machine
The Double Lever 3.5T Car Lift Machine is a robust automotive lifting solution designed for efficiency and versatility in professional garage and workshop environments. Featuring a dual-lifting configuration, it provides both main and secondary lift capabilities to accommodate various maintenance and service tasks.
Technology Parameters
| Parameter | Specification |
| Capacity (Main) | 3500kg |
| Capacity (Sub-lift) | 3500kg |
| Main Lift Height | 1850mm |
| Sub-lift Lifting Height | 500mm |
| Main Lift Length | 4300mm / 4500mm |
| Sub-lift Platform Length | 1400mm |
| Main Lift Platform Width | 610mm |
| Sub-lift Platform Width | 570mm |
| Motor Power | 380V / 220V / Others |
| Air Pressure | 0.4 – 0.6 Mpa |
Key Features
-
Dual-Lifting System: Equipped with both a main lift (1850mm height) and a sub-lift (500mm height) to facilitate a wide range of repair and inspection jobs.
-
Heavy-Duty Capacity: Rated for a 3500kg lifting capacity on both the main and sub-lift units, ensuring stability for most passenger vehicles.
-
Flexible Power Options: Motor is compatible with various voltage configurations (380V/220V) to suit different workshop electrical setups.
-
Reliable Pneumatics: Operates efficiently within a standard air pressure range of 0.4–0.6 Mpa.
-
Ergonomic Dimensions: The platform dimensions are optimized for vehicle stability and technician access during service procedures.
Applications
-
Automotive Repair Shops: Ideal for engine, transmission, and under-car service.
-
Tire and Wheel Centers: Provides necessary elevation for tire changes and suspension work.
-
Vehicle Inspection Facilities: Allows for comprehensive underneath vehicle inspections.
-
Automotive Body Shops: Provides the necessary lift for body repair and maintenance tasks.
Would you like information on the installation requirements or safety features associated with this car lift?
