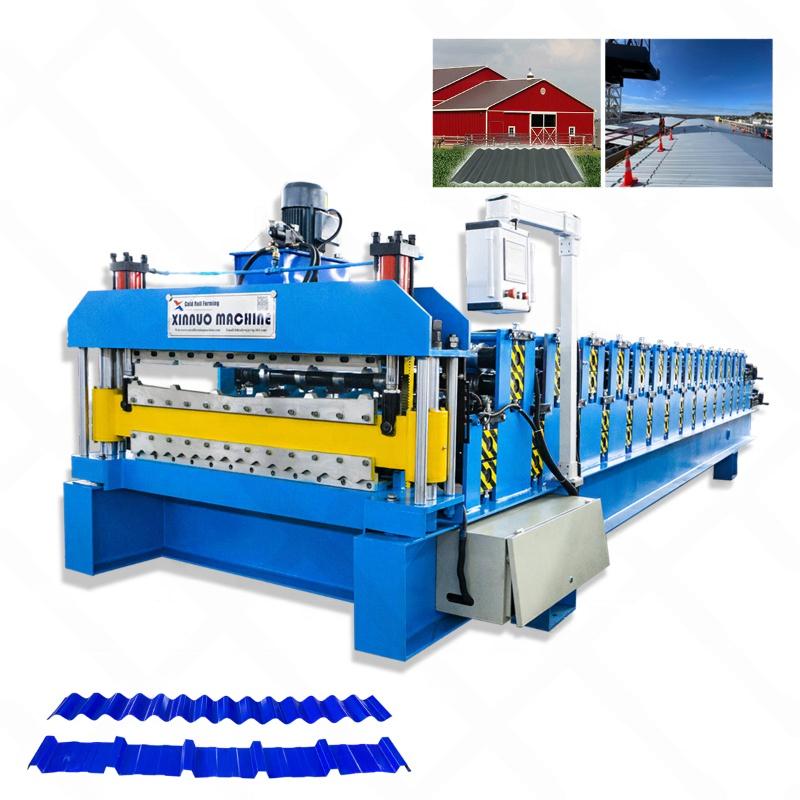

Combined Double‑Layer Roll Forming Machine for Roofing Sheets

Product Introduction

This combined double-layer roll forming machine is designed for the efficient production of two different roofing or cladding sheet profiles within a single integrated system. By combining dual roll forming lines into one compact machine, it allows manufacturers to switch between profiles or produce different sheet types efficiently while reducing equipment costs and saving factory space. The system is built for continuous industrial operation and includes automated controls, hydraulic cutting, and durable structural components for reliable high-volume manufacturing.

Specifications

Specification	Details
Machine Function	Produces two roll formed sheet profiles simultaneously or alternately
Power Supply	380V, 50Hz, 3-phase (customizable)
Main Motor Power	Approximately 5.5 kW
Hydraulic Power	Approximately 1.5 kW
Working Speed	Approximately 8–14 m/min
Material Thickness	Approximately 0.3–0.6 mm
Material Feed Width	Approximately 1000–1200 mm
Effective Sheet Width	Approximately 860–1100 mm
Forming Steps	Dual forming lanes with different forming stages
Cutting System	Hydraulic cutter with PLC control
Control System	PLC controller with touchscreen interface
Output System	Integrated run-out tables
Main Frame	Reinforced heavy-duty steel structure
Duty Cycle	Continuous industrial operation

Key Features

Dual Profile Production

Supports two different roofing or cladding sheet profiles within one integrated machine system.

Space-Saving Design

Compact double-layer configuration reduces factory floor space requirements while increasing production flexibility.

High-Speed Operation

Capable of operating at speeds of approximately 8–14 meters per minute for efficient industrial production.

Durable Industrial Construction

Built with reinforced heavy-duty steel frames for long-term reliability and continuous operation.

Automated PLC Control

Features PLC-based automation with touchscreen controls for simplified machine operation and production management.

Hydraulic Cutting System

Hydraulic cutting system provides accurate and automated sheet length cutting.

Flexible Material Compatibility

Supports various sheet thicknesses and feed widths suitable for standard roofing and cladding panel production.

Applications

Roofing and Cladding Sheet Manufacturing

Suitable for producing multiple roofing and wall cladding panel profiles.

Building Material Production Plants

Ideal for factories manufacturing different construction sheet products.

Compact Manufacturing Facilities

Useful for production environments with limited floor space.

Contract Manufacturing Operations

Supports flexible production requirements for different customer specifications.

Product Overview

This combined double-layer roll forming machine offers a flexible and efficient solution for producing two different roofing or cladding profiles within one compact system. With automated PLC controls, hydraulic cutting, high-speed production capability, and durable industrial construction, it is an ideal choice for building material manufacturers seeking increased production efficiency and reduced operational costs.
