Bottle Drink Filling Machine Production Line

Introduction

The PET Bottle Water Filling Line is a fully automatic wash-filling-capping production system designed for bottled mineral water, purified water, spring water, and other non-carbonated beverages. This advanced 3-in-1 beverage machinery integrates bottle washing, filling, and sealing into a single automated unit to improve production efficiency, hygiene standards, and operational reliability.

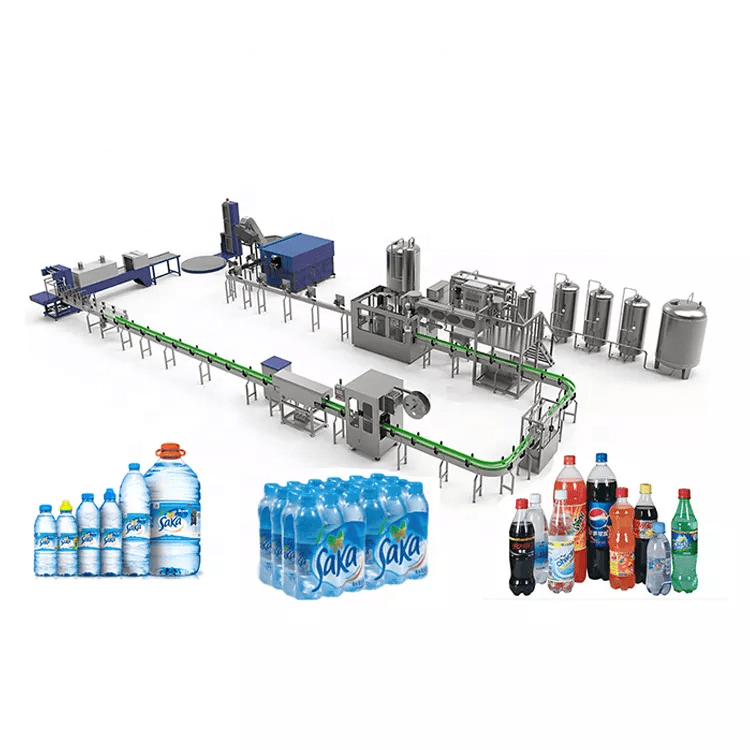

The complete production line also includes water treatment systems, bottle blowing machines, labeling systems, and conveyor solutions, making it a comprehensive bottling solution for beverage manufacturing plants.

---

Technical Specifications

Model	Capacity (500ml)	Total Power	Overall Dimensions	Weight
CGF8-8-3	2000 BPH	4.4 kW	2.3 × 1.9 m	2500 kg
CGF14-12-5	3000–4000 BPH	4.4 kW	2.5 × 1.9 m	3200 kg
CGF18-18-6	4000–6000 BPH	4.4 kW	2.8 × 2.15 m	4000 kg
CGF24-24-8	8000–10000 BPH	5.2 kW	3.1 × 2.5 m	4500 kg
CGF32-32-8	10000–12000 BPH	6.2 kW	3.8 × 2.8 m	6500 kg

---

General Specifications

Specification	Details
Suitable Bottle Type	PET Circular or Square Bottles
Bottle Diameter	Dia50 – Dia115 mm
Bottle Height	160 – 320 mm
Compressor Air Pressure	0.3 – 0.7 MPa
Washing Medium	Aseptic Water
Rinsing Pressure	>0.06 MPa, <0.2 MPa
Applications	Pure Water, Mineral Water, Spring Water
Machine Type	Washing, Filling & Capping 3-in-1
Operation	Fully Automatic

---

Water Treatment System

The water treatment section includes:

• Raw water tank
• Raw water pump
• Silica sand filter
• Active carbon filter
• Sodium ion exchanger
• Precision filter
• Security filter
• Reverse osmosis system
• UV sterilizer
• Finished water tank
• Pure water pump

---

Bottle Blowing Machine

Included Components

• Main automatic blowing machine
• High & low pressure compressor
• High pressure air storage tank
• Air filters
• Air cooling dryer
• Water chiller
• Customized bottle mold design

---

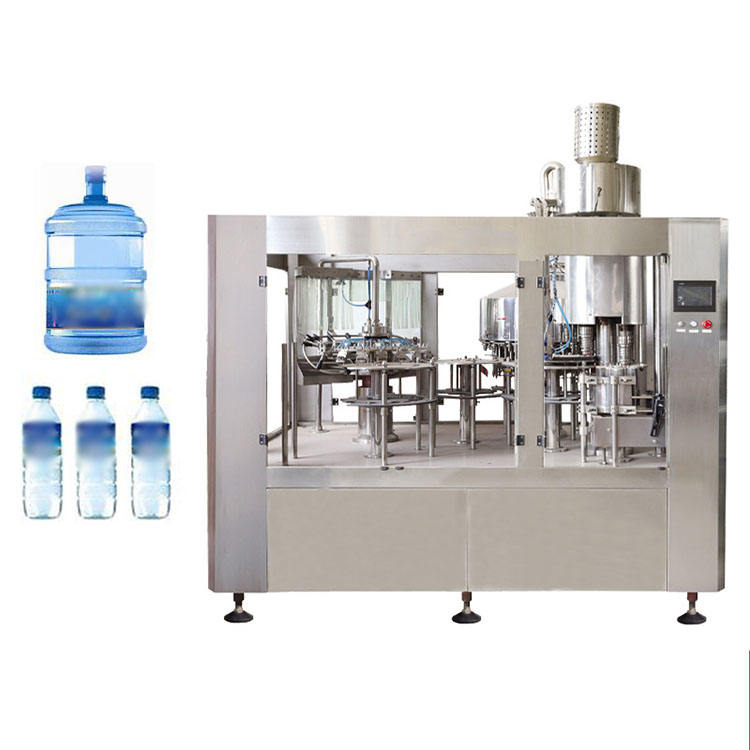

Water Filling Machine

Washing Filling Capping 3-in-1 System

• Constructed with 304/316 stainless steel
• Water-saving spray injection rinsing system
• Adjustable filling volume control
• No bottle no filling protection
• No bottle no capping protection
• Contactless filling design
• Servo motor energy-saving system
• Automatic dummy bottle cleaning system
• Automatic bottle changeover system

---

Production Details

Washing Part

• 304 stainless steel rinsing heads
• Water-saving injection washing design
• Stainless steel grippers with protective pads
• Stainless steel washing pump
• Reduced bottle damage during washing

---

Filling Part

• High-precision filling nozzles
• PLC variable signal control system
• Stable and smooth liquid filling
• Adjustable filling volume
• Uniform liquid level control
• Stainless steel contact parts and liquid tank
• Easy-clean polished surfaces
• No bottle no filling system

---

Capping Part

• Electromagnetic capping heads
• Automatic cap placement system
• Burden discharge protection
• 304 stainless steel construction
• Automatic stop function during bottle shortage
• Reduced bottle damage during capping

---

Labeling & Packing System

Hot Melt Glue Labeling Machine

• Suitable for multiple bottle and label materials
• Economical mass-production labeling solution
• Modular structure for easy bottle size changes
• Automatic program-based adjustments
• Simplified label replacement process

---

Flat Conveyor System

Features

• Energy-saving operation
• High-efficiency conveying system
• Adaptable factory layout configuration
• Special lubrication system
• Clean and hygienic operation
• Extended service life
• Electric eye safety monitoring
• Overload protection mechanism

---

Key Features

• Fully automatic beverage production line
• Integrated washing, filling, and capping system
• High production efficiency
• Hygienic stainless steel construction
• Energy-saving operation
• Adjustable filling and production settings
• Automatic bottle handling systems
• Suitable for PET bottles of various shapes and sizes
• Complete water treatment integration
• Modular labeling and conveyor solutions

---

Applications

• Bottled mineral water production
• Purified water manufacturing
• Spring water bottling plants
• Beverage production facilities
• Food and beverage industries
• Commercial water packaging operations

---

Conclusion

The Bottle Drink Filling Machine Production Line is a complete, high-efficiency bottling solution designed for modern beverage manufacturing. Combining advanced automation, hygienic stainless steel construction, precision filling technology, and integrated water treatment systems, this production line delivers reliable performance and consistent product quality for large-scale bottled water operations.
