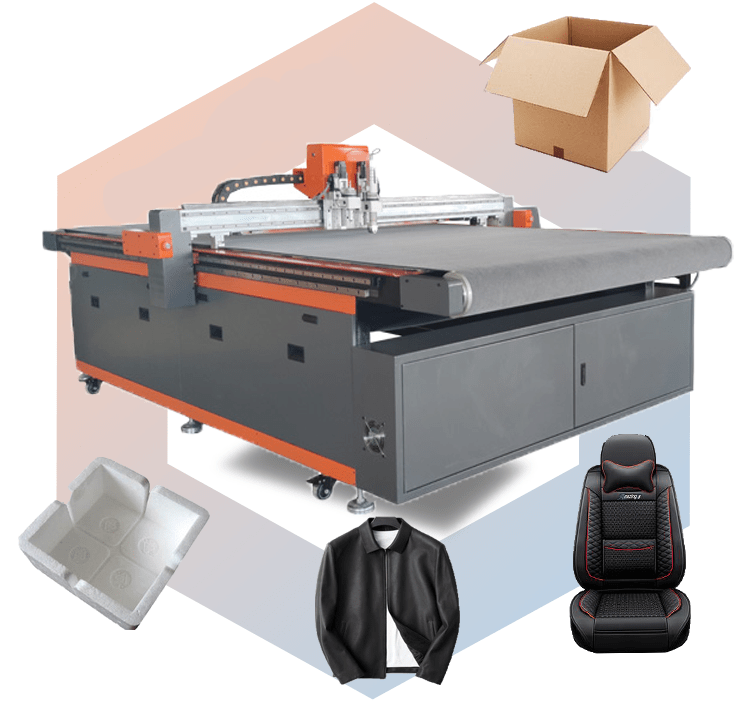

Automatic Digital Knife Cutting Machine

Introduction

This computerized automatic cutting machine is an advanced industrial solution designed for precise and efficient cutting of a wide range of soft and semi-rigid materials, including shoe leather, door mats, cloth, garment textiles, and apparel.

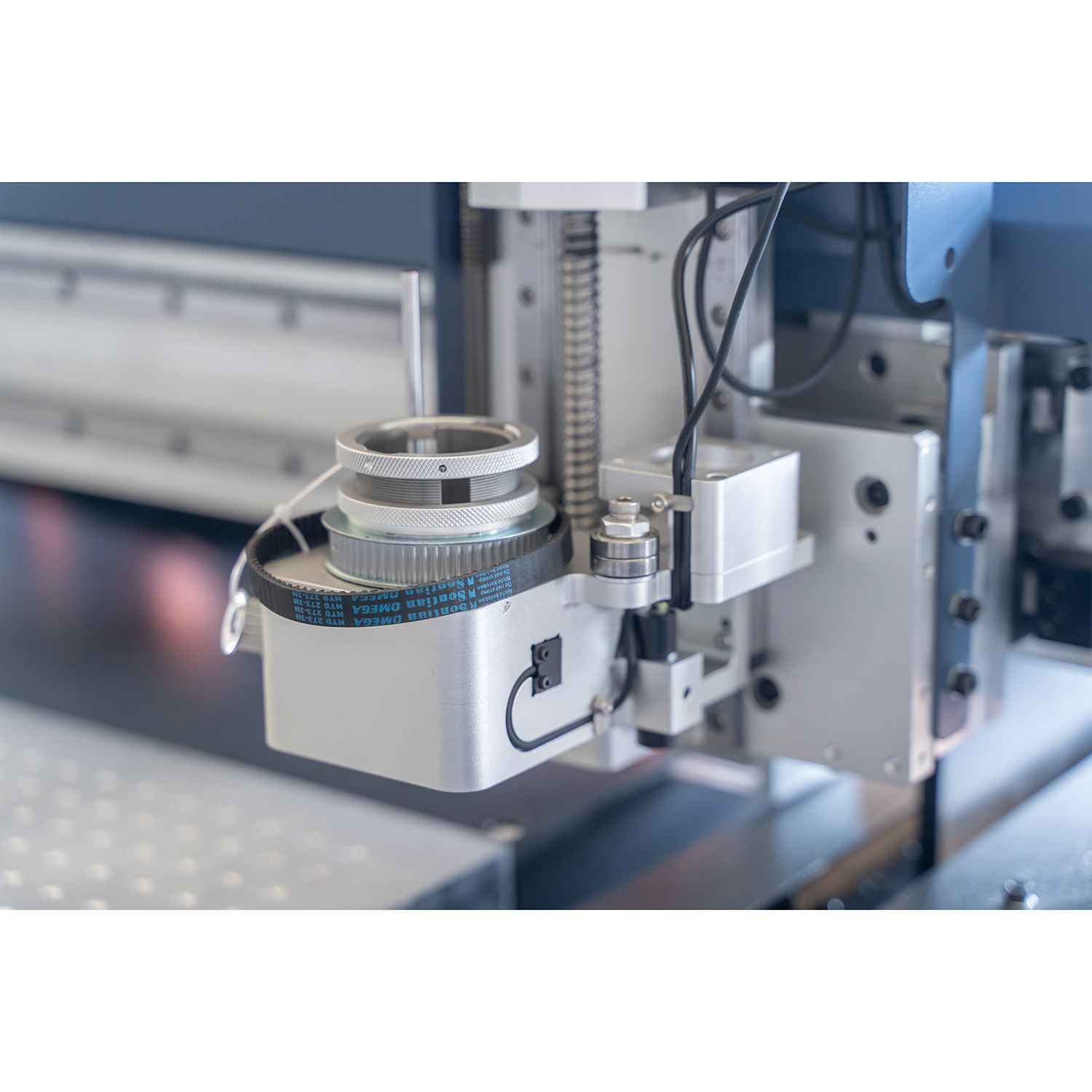

It utilizes a multi-functional cutting head with a replaceable oscillating knife, ensuring high accuracy and fast cutting speeds.

The machine features an automatic conveyor vacuum working table for stable material fixation and continuous feeding.

Equipped with imported linear guides and Japanese servo motors, it guarantees high precision, fast operation, and stable performance.

Its digital control system with a touch panel allows for intuitive operation, pattern scanning, and intelligent layout for optimized material utilization, making it an ideal choice for industries transitioning from manual to automated production.

Application Usage

This machine offers broad versatility across several manufacturing sectors due to its ability to precisely cut various materials.

Footwear Industry

Ideal for cutting leather and synthetic materials for shoe patterns, soles, and uppers.

Textile and Apparel Industry

Efficiently cuts cloth and garment textiles for clothing, uniforms, and fashion items.

Home Furnishings

Perfect for cutting door mats, carpets, rugs, and other textile-based home decor items.

Automotive Interiors

Used for cutting materials for car floor mats, seat covers, and other interior components.

Packaging and Advertising

Capable of cutting various materials for custom packaging, displays, and signage.

Leather Goods Manufacturing

Precise cutting of all types of real leather and PU artificial leather for bags, wallets, and other leather products.

Specifications

Attribute	Value
Model Number	FW1625 (other models like FW1410, BZ-SQ1860 available)
Working Table Size	1600 × 2500mm (customizable, e.g., 1800 × 6000mm)
Rated Voltage	380V 3 phase, 220V 3 phase, 220V 1 phase (customized)
Table Type	Vacuum working table with auto conveyor table, honeycomb structure
Cutting Head	Multi-functional, with replaceable oscillating knife
Moving Speed	Max. 1200mm/s
Cutting Speed	Max. 800mm/s (adjustable based on material)
Cutting Depth	Max 30mm (depends on the material)
Material Fixing Method	Strong power vacuum absorption and intelligence partition
Resetting Positioning Accuracy	Max 0.01mm
Mechanical Precision	Max 0.02mm

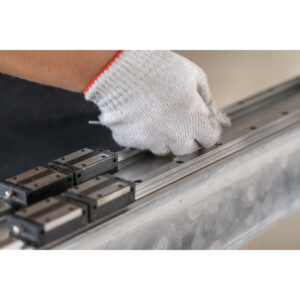

Drive System	Steel simultaneous belt, Japanese servo motor, HIWIN guide rail, synchronous belt, Taiwan ball screw
Control System	Kinco or Trocen control system
Operation Mode	OP worktable + data output control software (connected or separated)
Display	English LCD
Command	HP-GL compatible format
Buffering Capacity	Standard 2GB

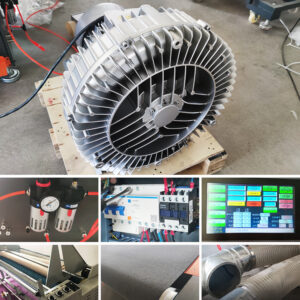

Vacuum Pump	9KW vacuum pump
Safety	High sensitivity infrared induction, emergency stop devices
Power Consumption	11KW (Rated Power)
Applicable Materials	Fabric, leather (real & PU), cloth, garment textile, apparel, door mats, paper, PVC, etc.
Supported Graphic Format	DXF, PLT
Warranty	1 Year (main components), 24 months quality guaranty (machine with main parts), 3 years (some suppliers)
Service	Free training, lifetime maintenance, online support, consumable parts at agency price, on-site installation/adjustment
