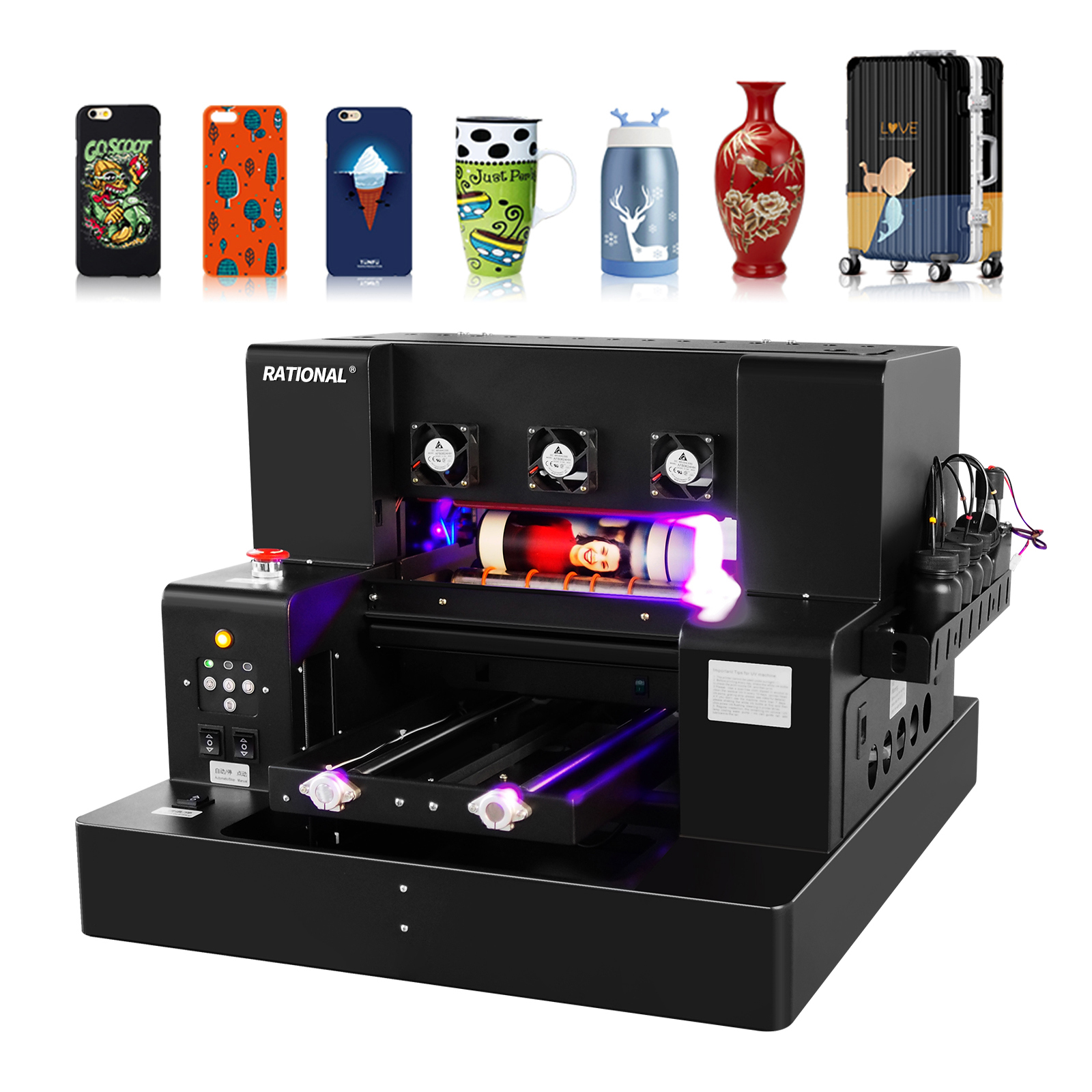

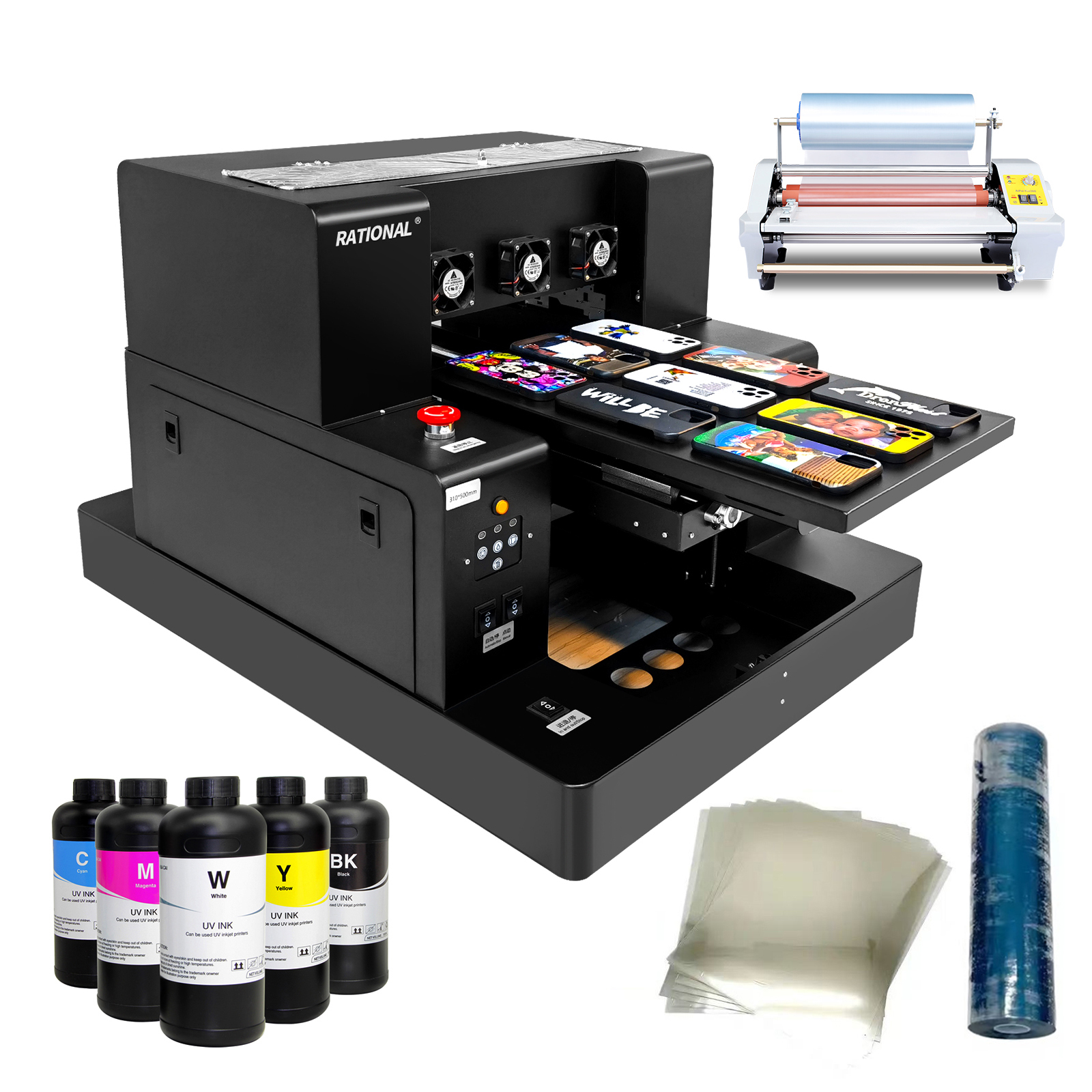

A4 Flatbed UV Bottle and Small Item Printer with Automated Jig System
R53 642,70
This A4 flatbed UV printer with an automated jig system provides an all-in-one solution for high-quality printing on bottles and small items. With precision, speed, and a compact design, it is ideal for businesses offering branded merchandise, customized gifts, prototypes, or limited-run production. Its advanced features deliver professional results with minimal setup and maintenance requirements.
This A4 flatbed printer is designed for versatile UV printing on bottles and a variety of small objects.
Featuring an automated jig system and LED UV curing, it delivers precise, durable, full-color output. It is well suited for promotional product customization, small-scale manufacturing, and specialized branding on items like glass bottles, metal containers, and wooden accessories.
Specifications
| Feature | Details |
|---|---|
| Print Area | Up to A4 size (approximately 210 × 300 mm) |
| Maximum Media Height | Around 150 mm |
| Print Resolution | Up to 1440 × 1440 dpi |
| Print Head Model | Epson-based UV print head |
| Ink Configuration | Full-color CMYK + dual White; varnish optional |
| Ink Supply System | Continuous ink supply (CISS) |
| Curing Method | Built-in LED UV curing system |
| Jig System | Adjustable automated jig for cylindrical and irregular shapes |
| Substrate Materials | Suitable for glass, metal, wood, acrylic, TPU, leather, and more |
| Print Speed | Approximately 178 seconds per A4 job |
| Control Interface | USB connectivity; compatible with RIP software |
| Cooling System | Integrated water and air cooling |
| Auto-Maintenance | Includes auto head-cleaning and white-ink mixing |
| Dimensions | Approximately 636 × 547 × 490 mm |
| Weight | Around 30 kg |
| Power Supply | Standard AC input |
| Warranty | 1–1.5-year limited warranty on core components |
Key Features
- Automated Jig System
Provides precise alignment and secure handling of bottles and three-dimensional items, improving registration and repeatability. - Dual White Ink & Varnish Options
Supports white underprints and varnish application for enhanced contrast and visual effects on dark or transparent substrates. - High-Resolution UV Output
Delivers crisp, vibrant prints at up to 1440 dpi, suitable for logos, photographs, and fine details. - LED UV Curing
Instant curing enables immediate handling and reduces heat exposure and energy usage during production. - Compact Footprint
Desktop-form design is ideal for small-scale production environments, saving space while offering professional performance. - Smart Maintenance Systems
Features auto-cleaning and white-ink circulation to reduce nozzle clogging and support device longevity.
Applications
- Custom Bottle Decoration: Ideal for printing logos, barcodes, or artwork on glass and metal bottles.
- Personalized Merchandise: Suitable for phone cases, leather accessories, wooden objects, and promotional items.
- Giftware & Event Keepsakes: Enables customized prints on souvenirs, awards, trophies, and artisanal products.
- Industrial Prototypes & Sample Runs: Useful for product marking, branding, or small-batch production with durable UV prints.
Advantages
- High Print Quality & Precision: High dpi and precise jig positioning deliver sharp, long-lasting images.
- Full-Color & Specialty Ink Support: CMYK color with white and varnish options enable versatile design possibilities.
- Efficient Workflows: Automated jig and LED curing reduce manual intervention and increase throughput.
- Durable Construction: Built for daily use with integrated maintenance features to enhance reliability.
- User-Friendly Integration: Wide material compatibility and RIP-based workflow make it accessible for multiple user types.
