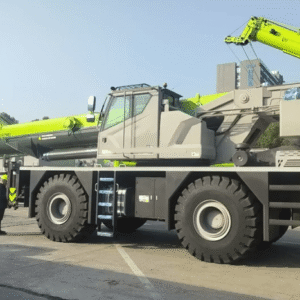

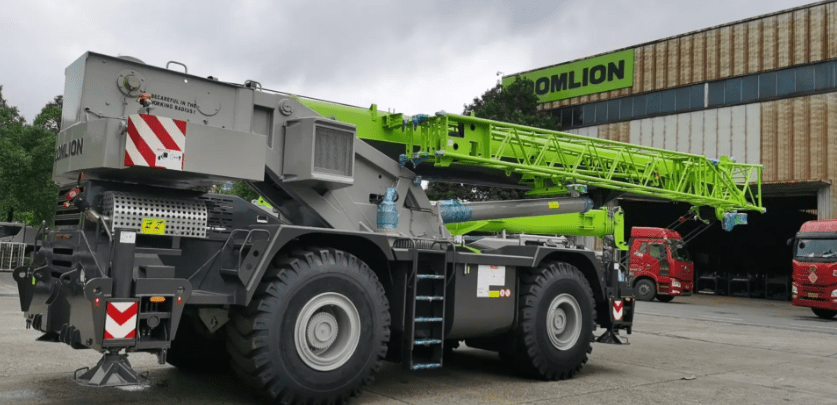

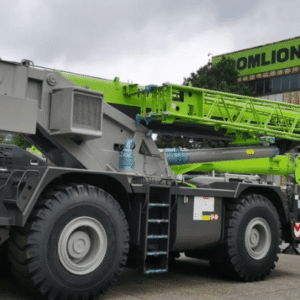

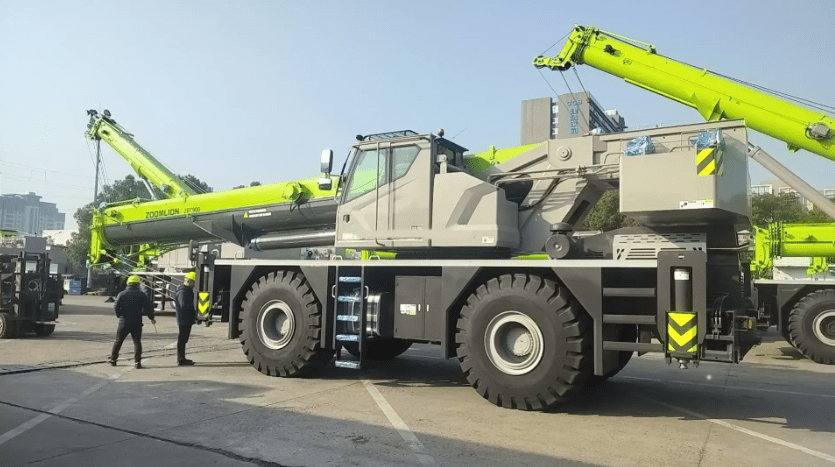

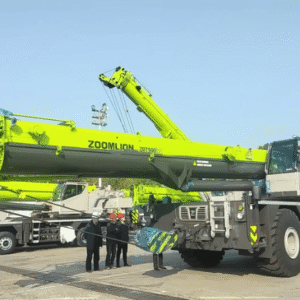

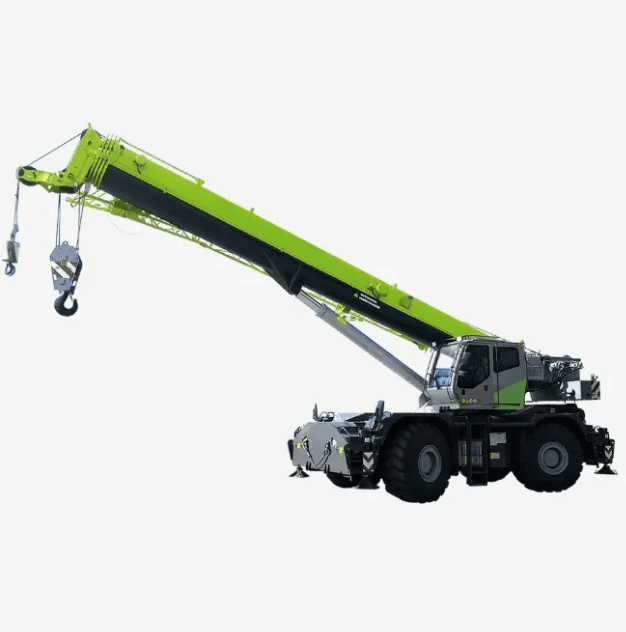

90T Heavy Crane for Rough Terrain
R9 666 404,06
Heavy Crane 90T Rough Terrain Crane ZRT900V542 Hydraulic Boom It is widely used in oil field, mine, road and bridge construction, warehousing base and other construction sites. 1. Energy Efficiency · New dual working mode of superstructure and carrier. Dual working mode of engine. Reducing noise, oil and heat consumption. Top class working speed. 2. Tough Performance · The cranes are designed for rugged terrain or extreme environmental conditions, like deserts or freezing areas. 3. Compact Layout · Three hinges of the luffing mechanism are located for a more compact body size, optimized for on-road transport and off-road traveling. 4. Precise Control · Electrical proportional joystick: quick reaction in 5ms, providing smooth operation of start and stop Joystick stroke can be adjusted from 0%-100% such that the loading can be as precise as mm level. Smart flow distribution system, which is the initial of flow shunt and confluence method and improved inching motions.
90T Heavy Crane for Rough Terrain
Introduction
This 90-ton capacity crane is a robust and high-performing construction machine, designed to handle heavy lifting and precise operations across diverse construction environments. Combining advanced engineering, exceptional lifting capabilities, and reliable core components, this crane delivers outstanding efficiency and productivity.
Key Features
- Impressive Lifting Capacity
Boasts a rated loading capacity of 90,000kg and a maximum lifting height of 65.7m, making it ideal for large-scale and demanding construction projects. - Powerful Performance
Equipped with a high-performance engine delivering 194kW at 2200 rpm, with a rated engine torque of 1200 Nm at 1500 rpm, ensuring optimal power for heavy-duty operations. - Exceptional Lifting Moment
Offers a rated lifting moment of 2950kN.m and a maximum load moment of the main boom of 2950kN.m, allowing for precision and control when handling heavy loads. - Advanced Core Components
Built with durable and reliable core components, including PLC, engine, bearing, gearbox, motor, pressure vessel, gear, and pump, ensuring consistent and long-term functionality. - Optimal Working Radius
Provides a working radius of 2.5kg.m, designed to achieve efficiency and flexibility in confined or complex working environments. - Durable and Sturdy Construction
Weighs 51,000kg, combining strength and stability to withstand challenging work conditions. - Comprehensive Support and Warranty
Comes with a 1-year warranty on the machine and its core components. Also includes a video outgoing-inspection and a machinery test report, ensuring high standards of quality and reliability.
Specifications
| Specification | Details |
|---|---|
| Rated Loading Capacity | 90,000kg |
| Rated Lifting Moment | 2950kN.m |
| Max Lifting Height | 65.7m |
| Max Lifting Height of Main Boom | 49m |
| Weight | 51,000kg |
| Rated Engine Power | 194kW/2200 rpm |
| Rated Engine Torque | 1200Nm/1500 rpm |
| Working Radius | 2.5kg.m |
| Core Components | PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump |
| Application | Construction |
| Warranty | 1 Year |
| Place of Origin | Jiangsu, China |
Packaging and Delivery
| Specification | Details |
|---|---|
| Selling Units | Single item |
| Packaging Dimensions | 535 × 243 × 329cm |
| Gross Weight | 63,000kg |
Applications
- Suitable for heavy lifting, equipment assembly, and material transport in construction sites and industrial environments.
- Ideal for infrastructure development, high-rise building projects, and other demanding operations.
Why Choose This Product
- Efficient & Reliable
Combines high lifting capacity and advanced engineering for superior performance in construction tasks. - Durable & Well-Built
Designed with top-grade core components and sturdy construction, ensuring long-term reliability. - Comprehensive Support
Includes inspections, warranty, and dedicated after-sales service for peace of mind.
