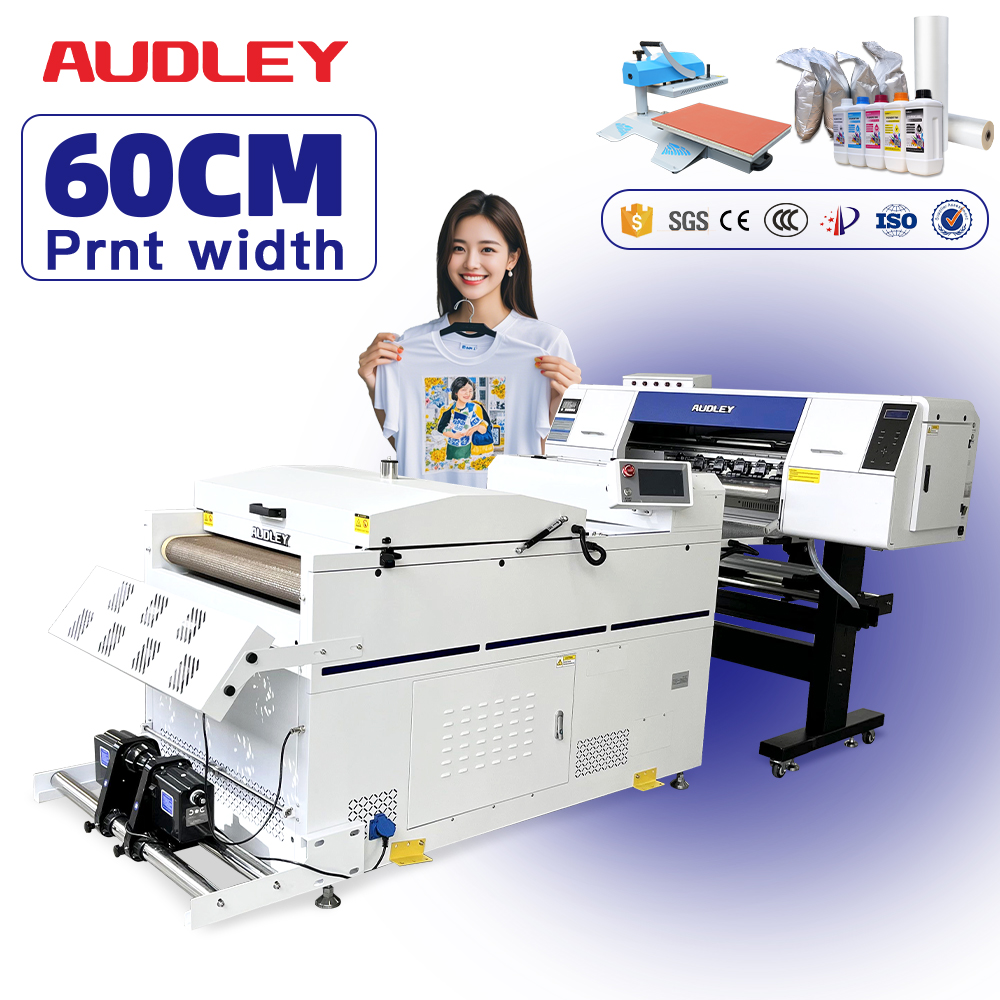

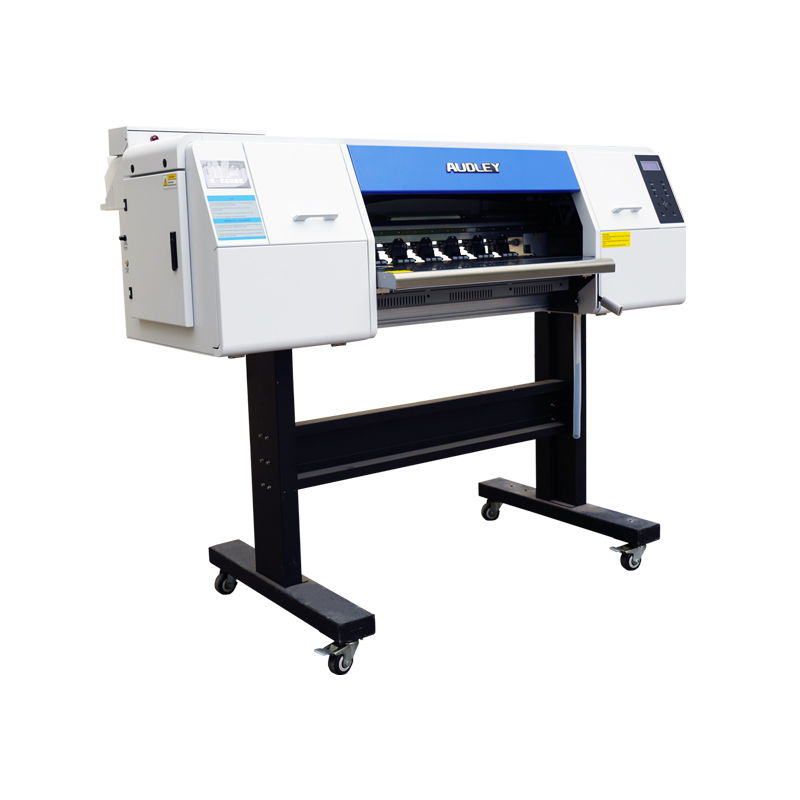

60 cm Dual-Head Roll-to-Roll DTF Printer with Automatic Powder Shaker and Dryer

60 cm Roll-to-Roll Direct-to-Film (DTF) Printer

Specification

---

Feature Detail

Print Heads Dual-head configuration (compatible with I3200 or XP600)
Print Width 600 mm
Print Resolution Up to 1440 dpi

Print Speed (Estimates)
4-pass: ~14 m²/h
6-pass: ~8 m²/h
8-pass: ~6 m²/h

Ink Configuration CMYK + White pigment ink with continuous white ink circulation
Media Type PET transfer film
Powder & Drying Unit Built-in powder shaker and curing dryer (multi-stage heating)
Feeding System Roll-to-roll with tension control

Dimensions (Printer) Approx. 198 × 76 × 71 cm
Dimensions (Dryer) Approx. 180 × 115 × 128 cm

Power Consumption
Printer: ~1400 W
Dryer: ~4500 W

Machine Weight
Printer: ~116 kg
Dryer: ~225 kg

Recommended Conditions
Temperature: 15–30 °C
Humidity: 35–65% RH

Warranty 1-year limited warranty on core components

---

Key Features

High-Resolution Dual Heads Supports two precision print heads for efficient, full-color printing with detailed resolution and consistent output.
White Ink Circulation System Prevents clogging and ensures reliable printing on both light and dark garments with strong color vibrancy.
Integrated Powder Shaker & Dryer Applies hot melt adhesive powder and cures it automatically—streamlining the transfer film preparation process.
Roll-to-Roll Automation Equipped with tension-controlled film feed and take-up for uninterrupted print runs and reduced material waste.
Robust Mechanical Construction Industrial components, guide rails, and servo motors ensure durability and stable long-term performance.
Smart Control Panel Includes auto-cleaning, humidity control, ink level alerts, and real-time temperature management.

---

Applications

T-Shirt and Garment Transfers Print custom designs for cotton, polyester, or blended textiles.
Promotional Merchandise Ideal for tote bags, hats, cushions, and more.
Small-Run Fashion Production Enables short lead time printing for fashion samples or custom clothing lines.
Textile Branding & Labels Create high-quality, branded patches or heat-press tags for apparel.

---

Advantages

High Productivity Designed for continuous roll-based operation with minimal operator input.
Consistent Quality Dual print heads and precise media handling ensure clear, vibrant images every time.
Workflow Efficiency Automated powder and drying process reduces production time and operator workload.
Compact and Scalable A space-efficient footprint with features suited for both growing and established businesses.
Low Operating Costs Bulk ink system and reusable film handling reduce material and ink waste.
