253kW/339hp Crawler Bulldozer
R8 123 219,06
Crawler Bulldozer – Power System & Features
Power System
The installed WP12/QSNT-C235 electronically controlled engine conforms to the China-III non-road machinery emission regulation, featuring strong power, high efficiency and energy-saving, and low maintenance cost. The rated power reaches 175kW, featuring high torque reserve coefficient. The radially sealed intake system is applied to effectively prolong the engine life.
Drive System
The curves of drive system and engine are perfectly matched to achieve more extensive high-efficiency zone and higher transmission efficiency. Self-made drive system features stable performance and reliable quality and has been long proved by the market.
Driving/Riding Environment
The hexahedral cab provides super-large interior space and broad vision and the ROPS/FOPS can be installed depending on specific needs to ensure high safety and reliability. The electronic control hand and foot accelerators guarantee more accurate and comfortable operations. The intelligent display and control terminal and the A/C and heating system are installed to provide more abundant personalized driving/riding experience and enable you to understand system status at any time, featuring high intelligence and convenience.
Working Adaptability
Stable and reliable chassis system is applicable to diversified severe working conditions. The product features long ground length, high ground clearance, stable driving, and good trafficability. The straight tilting blade, semi-U blade, U-blade, angle blade, coal blade, rock blade, environmental sanitation blade, ripper, and traction frame can be installed depending on specific working condition to achieve higher working adaptability. The optional LED working lamps improve the illumination capability during nighttime operations to achieve higher safety and reliability.
Easy Maintenance
The structural parts inherit the excellent quality of mature products; The electric harnesses adopt corrugated pipes for protection and deconcentrators for branching, featuring high protection grade. The openable large-space side hoods make the repairs and maintenance easier. All lubricating and maintenance points of machine are directed to the outer side of machine body to achieve convenient and rapid maintenances.

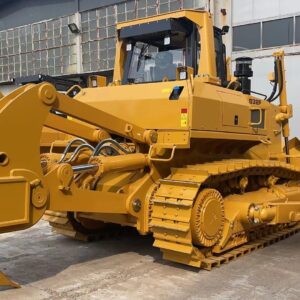

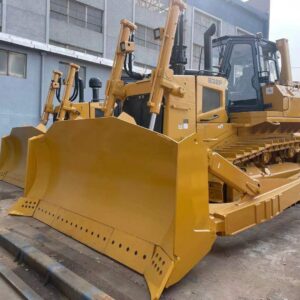

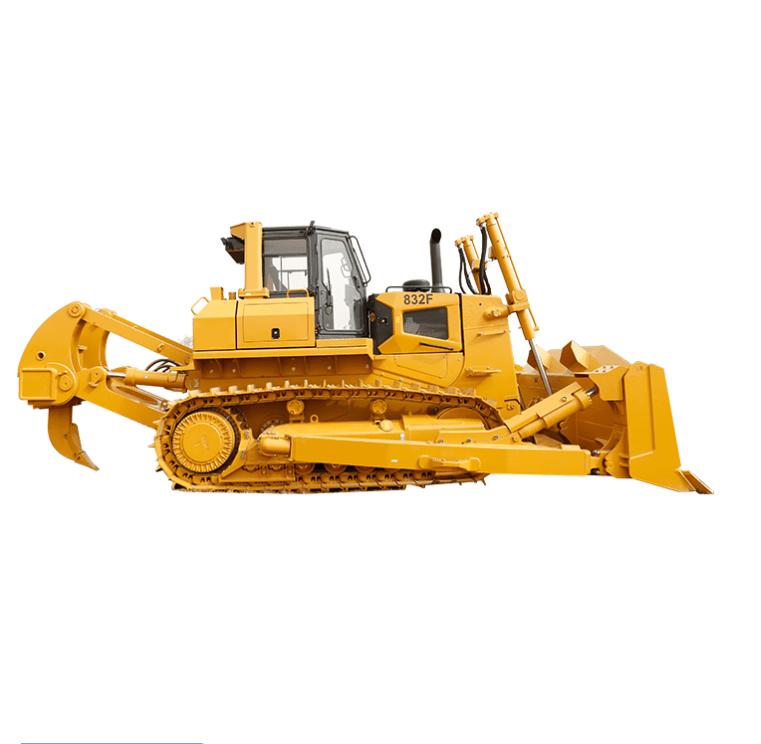

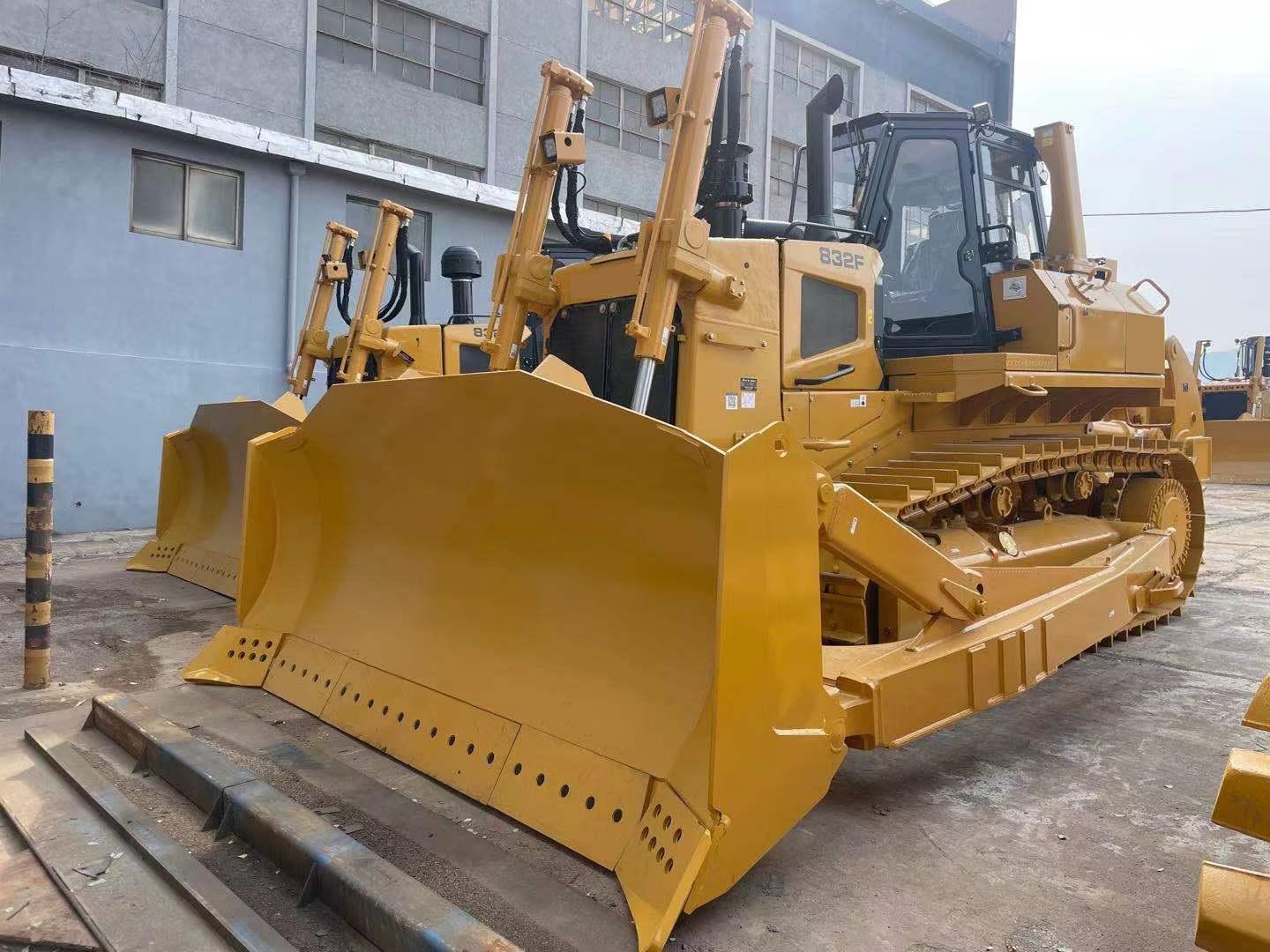

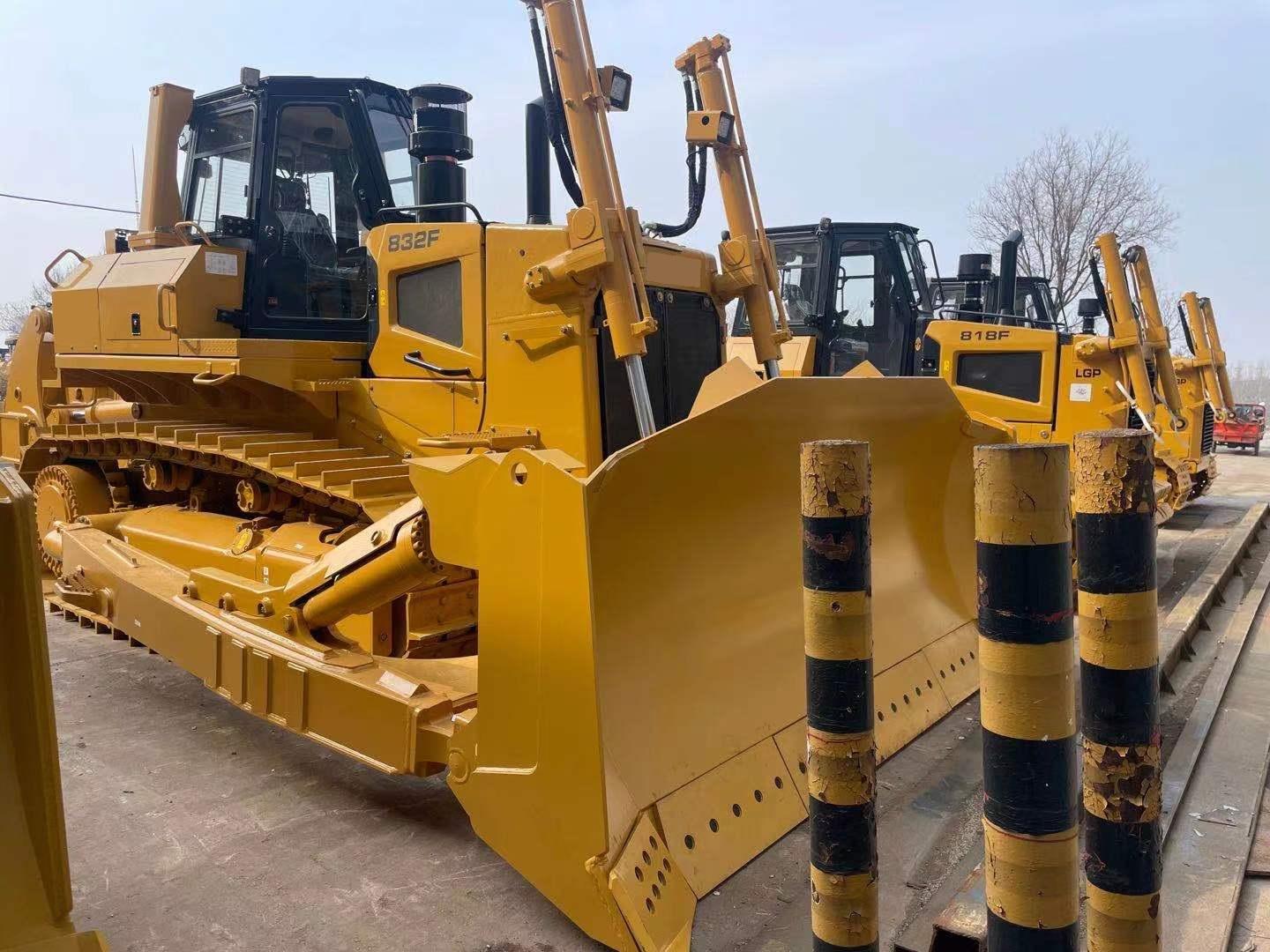

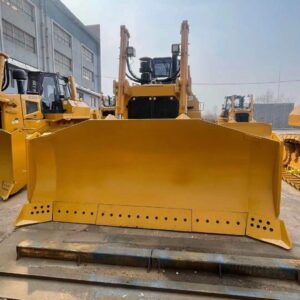

253kW / 339HP Crawler Bulldozer (SEM832F)
Introduction
The SEM832F Crawler Bulldozer is a high-performance machine built to meet the demanding requirements of construction and industrial applications. With exceptional dozing capacity, robust design, and advanced core components, it ensures high operating efficiency and reliable performance in challenging environments.
Key Features
- Impressive Dozing Capacity
Boasts a dozing capacity of 10m³, making it ideal for large-scale earthmoving, grading, and material handling tasks. - Powerful Engine Performance
Equipped with a 253kW rated power engine, providing the strength and efficiency needed for heavy-duty operations. - Advanced Core Components
Features premium components such as PLC, engine, bearing, gearbox, motor, pressure vessel, gear, and pump, ensuring consistent performance and durability. - Optimal Ground Pressure
Designed with ground pressure values of 83/77kPa, allowing stability and effective functionality even on soft or uneven terrains. - Durable and Robust Design
Weighing 38,710kg and measuring 7,460 × 3,660 × 3,520mm (L × W × H), the bulldozer is engineered to withstand tough working conditions and deliver reliable long-term performance. - High Operating Efficiency
Built for efficiency with top-brand hydraulic cylinder, pump, and valve systems, ensuring smooth operation and enhanced productivity. - Comprehensive Support and Warranty
Comes with a 1-year warranty, video outgoing inspection, and a machinery test report for quality assurance and customer confidence.
Specifications
| Specification | Details |
|---|---|
| Model Number | SEM832F |
| Moving Type | Crawler Bulldozer |
| Machine Weight | 38,710kg |
| Dozing Capacity | 10m³ |
| Rated Power | 253kW |
| Ground Pressure | 83/77kPa |
| Core Components | PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump |
| Hydraulic Cylinder Brand | Top Brand |
| Hydraulic Pump Brand | Top Brand |
| Hydraulic Valve Brand | Top Brand |
| Dimensions (L × W × H) | 7,460 × 3,660 × 3,520mm |
| Unique Selling Point | High Operating Efficiency |
| Warranty | 1 Year |
| Place of Origin | Jiangsu, China |
Applications
- Large-scale construction projects
- Mining operations
- Heavy earthmoving tasks
- Land grading and leveling
- Industrial infrastructure development
Why Choose This Product
- Efficient & Powerful – High-capacity performance with strong hydraulic systems.
- Durable & Reliable – Built with heavy-duty components for long-term operation.
- Comprehensive Support – Includes inspection reports and warranty for added confidence.
