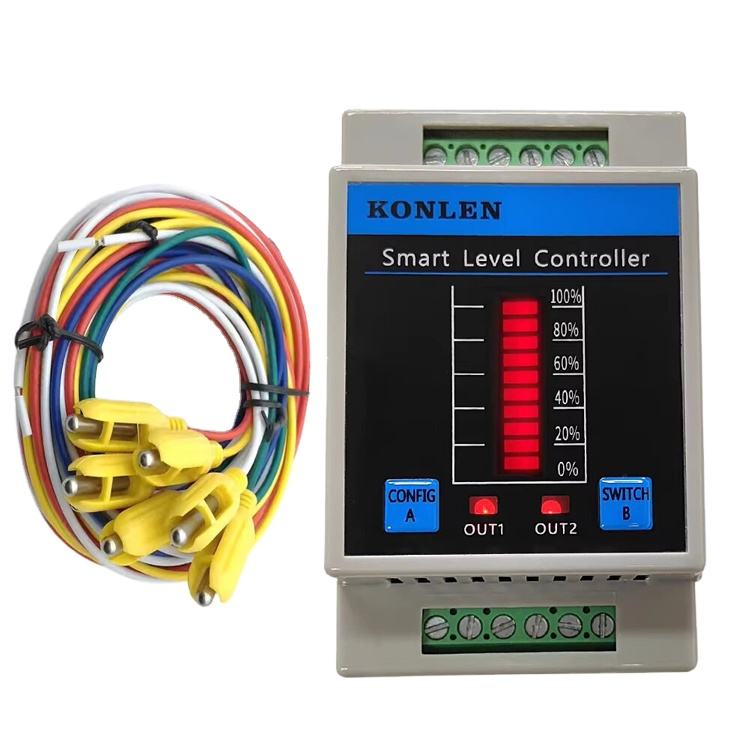

WiFi Water Level Sensor Controller

Introduction

The WiFi Water Level Sensor Controller is an advanced smart monitoring device designed to efficiently manage and monitor water levels in residential, agricultural, and industrial systems. Equipped with app based remote monitoring, high and low water level alarms, and flexible relay control, this device provides real time water management with convenient mobile access. Its durable ABS construction and customizable probe cable lengths make it a reliable solution for a wide range of installations.

Specifications

Specification	Details
Product Type	WiFi Water Level Sensor Controller
Network Connectivity	WiFi
Material	ABS
Alarm Type	App Based Control
Sensor Type	Water Level Sensor
Water Level Display	0%, 20%, 40%, 60%, 80%, 100%
Relay Output	2 Relays (CH1 & CH2)
Relay Maximum Load	10A Each

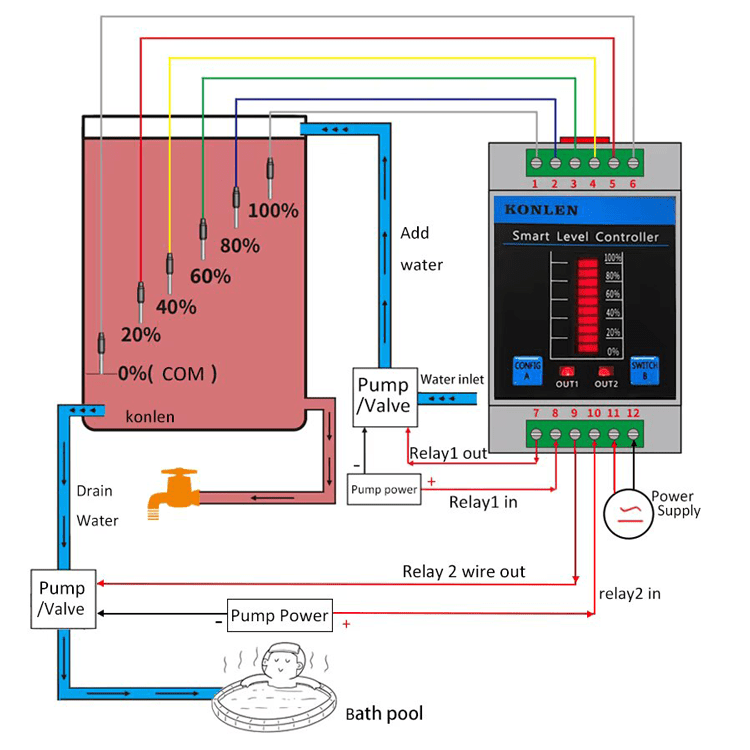

Relay Wiring	Functions Like a Standard Switch

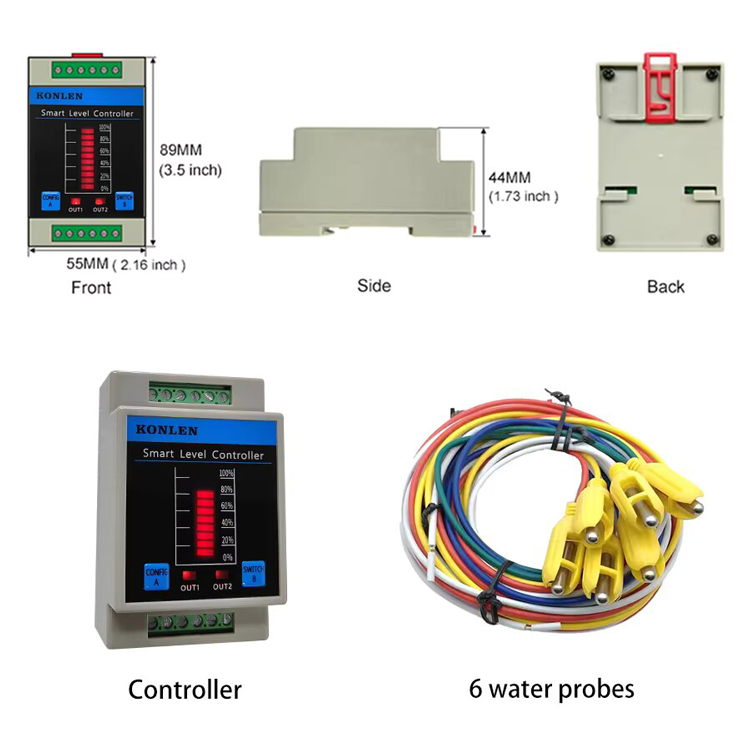

Controller Size	89 × 55 × 44 mm
High/Low Water Alarm	Supported
Probe Cable Length	Extendable up to 50–80 m
Power Supply Options	AC 90V–250V or DC 5V
Mobile App Support	Tuya Smart / Smart Life

Key Features

• Remote App Monitoring:
  Allows users to monitor and manage water levels remotely through Tuya Smart or Smart Life apps.
• Real Time Water Level Display:
  Displays water levels clearly with percentage indicators from 0% to 100%.
• High & Low Water Alarms:
  Provides instant alerts to help prevent water overflow or low water shortages.
• Dual Relay Output System:
  Equipped with two independent relay outputs supporting up to 10A load each.
• Flexible Installation:
  Relay wiring functions like a standard switch, simplifying installation and integration.
• Extendable Probe Cables:
  Probe cable length can be customized up to 80 meters for large installations.
• Durable ABS Construction:
  Built with high quality ABS material for reliable long term performance.
• Dual Power Supply Compatibility:
  Supports both AC and DC power input for flexible operation.

Applications

• Residential Water Tanks:
  Ideal for monitoring household water storage systems and preventing overflow.
• Industrial Water Management:
  Suitable for factories, storage tanks, and industrial water control systems.
• Agricultural Irrigation Systems:
  Helps manage reservoir and irrigation water levels efficiently.
• Commercial Buildings:
  Supports automated water monitoring for hotels, apartments, and facilities.

Why Choose This Product?

Smart Remote Control

Monitor and manage water systems anytime through mobile app connectivity.

Reliable Water Protection

High and low level alarms help prevent costly water overflow and shortages.

Flexible Installation Options

Supports long probe cables and multiple power supply configurations for different environments.

Durable & Efficient Design

ABS construction and dual relay system ensure stable and long lasting operation.

Conclusion

The WiFi Water Level Sensor Controller combines smart technology, reliable performance, and flexible installation features to deliver efficient water level monitoring and management. With real time app control, customizable probe lengths, and advanced alarm functionality, it is an ideal solution for residential, commercial, agricultural, and industrial water systems.
