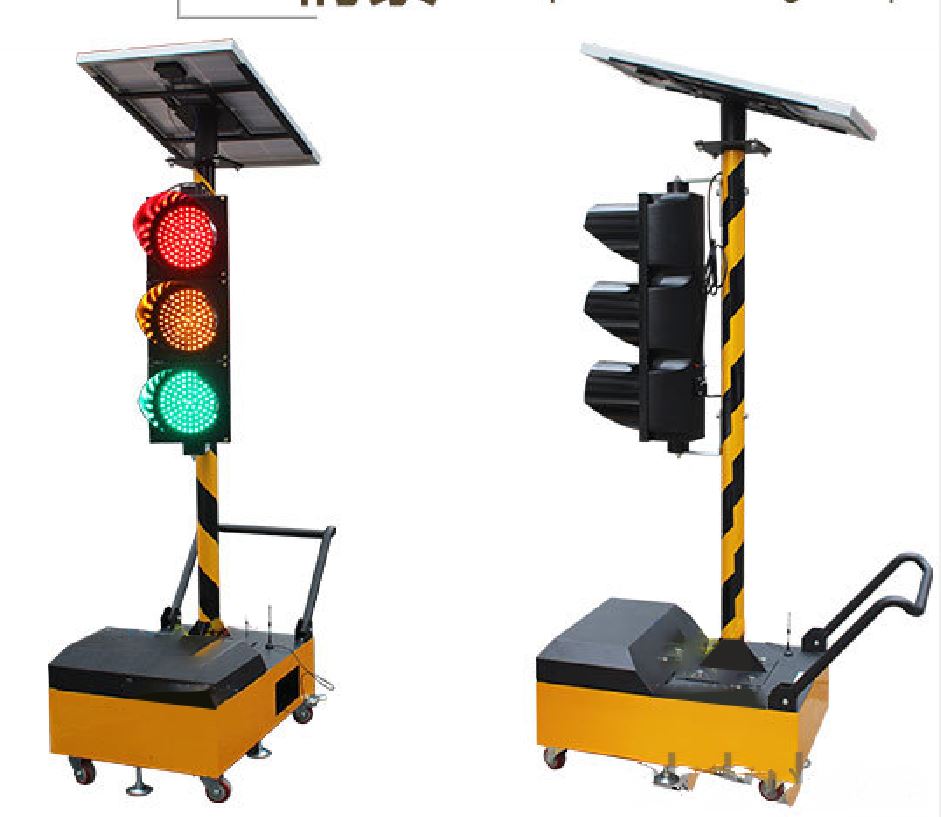

Mobile Solar Traffic Signal
Introduction
This mobile traffic signal combines solar energy with built-in wireless control, offering a convenient and sustainable solution for temporary traffic management.
It features a 300 mm LED signal head and is powered by solar panels that charge the onboard battery, allowing continuous operation without grid dependency.
Wi-Fi or RF-based remote and sensor controls enable flexible operation, while durable, weather-resistant construction ensures reliable outdoor performance.
Compact and portable, this traffic light is ideal for power outages, roadworks, pedestrian crossings, and emergency traffic control.
Specifications
| Specification | Details |
|---|---|
| Signal Head Size | 300 mm Diameter LEDs (Red / Yellow / Green) |
| LED Quantity per Signal | Approximately 90 High-Brightness LEDs Each |
| Power Supply | Solar Panel (30–60 W) + Rechargeable 12 V Battery |
| Power Consumption | ~8 W per Signal Head |
| Control Modes | Manual, Wireless Remote, Sensor-Interactive |
| Communication Range | ~100–300 m RF Remote Control |
| Housing Material | Cold-Rolled Steel (IP65 Rated) |
| Gross Weight per Unit | Approx. 25–50 kg |
| Mounting Style | Standalone Portable Unit with Optional Trolley |
| Certifications | CE, RoHS |
Key Features
- Solar-powered and wireless operation without mains electricity.
- High-brightness LED signals for clear visibility in all conditions.
- Flexible control options including manual, wireless remote, and sensor modes.
- Durable IP65 weatherproof housing for reliable outdoor use.
- Portable trolley-compatible design for easy setup and relocation.
- Low power consumption for extended battery operation.
Applications
- Temporary traffic control at roadworks and construction zones.
- Emergency traffic management during power outages or accident scenes.
- Pedestrian crossings and mobile safety control systems.
- Event and crowd management in public areas.
- Industrial vehicle flow control in warehouses and loading zones.
