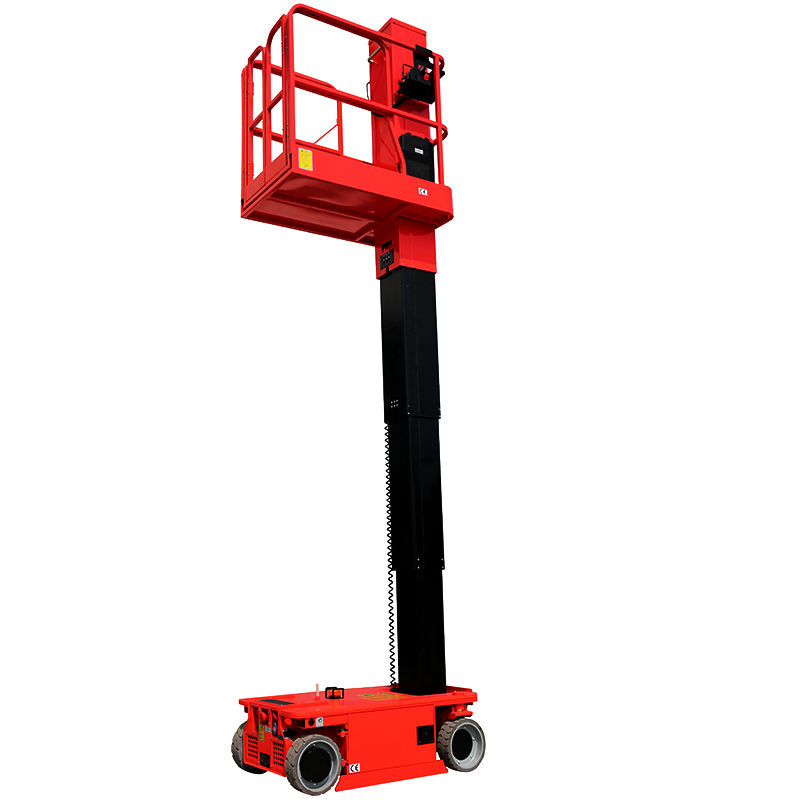

Push Automatic Mast Lift Personnel Aerial Work Equipment With CE
Briefing
The Push Lift Automatic Mast Lift Man is a compact, self-propelled aerial work platform designed for efficient vertical lifting in various industries. Its automatic mast system and user-friendly controls make it suitable for tasks requiring elevated access.
Specifications
| Feature | Details |
|---|---|
| Lift Mechanism | Telescoping Lift |
| Power Source | DC Battery Power |
| Load Capacity | 227 kg |
| Lift Height | Up to 6 meters |
| Table Size | 1.3 × 0.7 meters |
| Weight | 600 kg |
| Width | 760 mm |
| Power | 2.2 kW |
| Input Voltage | 110V, 220V, 240V, 380V, 400V (Customized) |
| Safety Features | Emergency Decline Valve, One Way Valve, Adjust Valve, Overflow Valve |
| Warranty | 1 Year |
Key Features
- Automatic Mast System: Facilitates smooth and efficient vertical lifting operations.
- Self-Propelled Design: Enhances mobility and ease of positioning on the job site.
- High Load Capacity: Supports up to 227 kg, accommodating various tools and personnel.
- Compact Dimensions: Width of 760 mm allows navigation through narrow spaces.
- Safety Features: Equipped with multiple safety valves for secure operation.
- Power Options: Available in multiple voltage configurations for different regions.
Applications
- Construction Sites: Suitable for painting, maintenance, and installation work at elevated heights.
- Warehouses: Ideal for accessing high storage areas and inventory management.
- Retail Environments: Assists with display setup and maintenance in large stores.
- Event Setup: Useful for installing lighting and decorations in venues.
Summary
The Push Lift Automatic Mast Lift Man offers a reliable and efficient solution for vertical lifting needs across various industries. Its automatic mast system, self-propelled design, and integrated safety features make it a valuable asset for tasks requiring elevated access.
Product Description
Blift Brand High-End Self-Propelled Vertical Mast Lift is a low-level access lift machine with automatic walking, turning, and lifting functions. It is specially designed for indoor and outdoor aerial work in lower-height and narrow-space environments. The self-propelled vertical mast lift is drivable at full height and is widely used in supermarkets, warehouses, workshops, stadiums, and similar environments for maintenance and operational tasks.
Technical Specifications
| Model No. | ASWP-3.6 | ASWP-4.8 | ASWP-8.0 |
|---|---|---|---|
| Max Platform Height | 3.6m | 4.8m | 6m |
| Max Working Height | 5.6m | 6.8m | 8m |
| Loading Capacity | 227kg | 227kg | 150kg |
| Extendable Platform Capacity | 114kg | 114kg | 114kg |
| Overall Length | 1.36m | 1.36m | 1.36m |
| Overall Width | 0.76m | 0.76m | 0.76m |
| Overall Height | 1.7m | 1.98m | 1.98m |
| Platform Size | 1.3 × 0.7m | 1.3 × 0.7m | 1.3 × 0.7m |
| Extendable Platform Length | 0.51m | 0.51m | 0.21m |
| Wheel Base | 1.04m | 1.04m | 1.04m |
| Inner Turning Radius | 0m | 0m | 0m |
| Outer Turning Radius | 1.4m | 1.4m | 1.4m |
| Travel Speed (Stowed) | 4km/h | 4km/h | 4km/h |
| Travel Speed (Raised) | 1.1km/h | 1.1km/h | 1.1km/h |
| Up/Down Speed | 31/32 sec | 41.5/42 sec | 51/52 sec |
| Gradeability | 25% | 25% | 25% |
| Drive Tires | Φ305 × 100 mm | Φ305 × 100 mm | Φ305 × 100 mm |
| Drive Motors | 2 × 24VDC / 0.5KW | 2 × 24VDC / 0.5KW | 2 × 24VDC / 0.5KW |
| Lifting Motor | 24DC / 1.3KW | 24DC / 1.3KW | 24DC / 1.3KW |
| Battery | 2 × 12V / 100AH | 2 × 12V / 100AH | 2 × 12V / 100AH |
| Charger | 24V / 15A | 24V / 15A | 24V / 15A |
| Weight | 810kg | 980kg | 1060kg |
