Professional 3D Four-Wheel Alignment System

Product Overview

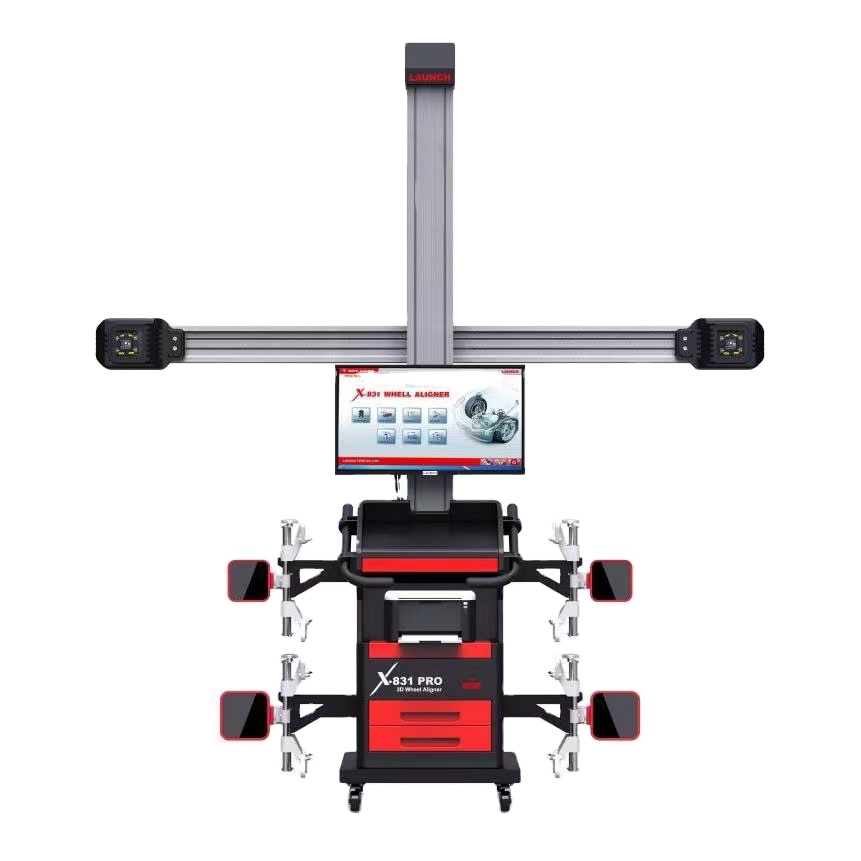

This state-of-the-art 3D four-wheel alignment machine utilizes industrial-grade high-resolution cameras to capture precise wheel geometry measurements for total toe, camber, caster, kingpin inclination, thrust angle, set-back, track width, wheelbase, and chassis deviation. It is designed for automotive repair shops, tire centers, and service facilities that require fast, accurate, and comprehensive alignment diagnostics for cars and light vehicles. Equipped with computer-controlled data processing and real-time display, the system supports automatic measurement, rolling compensation, and user-guided alignment feedback. Its robust camera and beam structure ensures high accuracy while streamlining technician workflow.

Specifications

Key Features

• Precision 3D Camera Measurement:
  Uses high-definition industrial cameras for accurate real-time wheel alignment measurements.
• Complete Alignment Analysis:
  Measures camber, caster, toe-in/out, kingpin inclination, thrust angle, set-back, track width, and wheelbase.
• Rolling Compensation System:
  Automatically compensates for wheel and rim irregularities to improve measurement accuracy.
• Wide Vehicle Compatibility:
  Supports wheelbases up to 3,200 mm and track widths up to approximately 1,800 mm.
• User-Guided Digital Interface:
  Provides real-time data and step-by-step guidance for technicians during alignment procedures.
• Durable Fixed-Beam Construction:
  Stable beam structure and high-quality clamps ensure repeatable and reliable measurements.

Applications

• Automotive repair shops
• Tire and wheel service centers
• Vehicle inspection stations
• Car dealerships
• Fleet maintenance garages
• Automotive diagnostic facilities

This 3D four-wheel alignment machine combines precision measurement technology, intelligent data processing, and durable construction to deliver reliable alignment diagnostics for modern automotive service environments.
