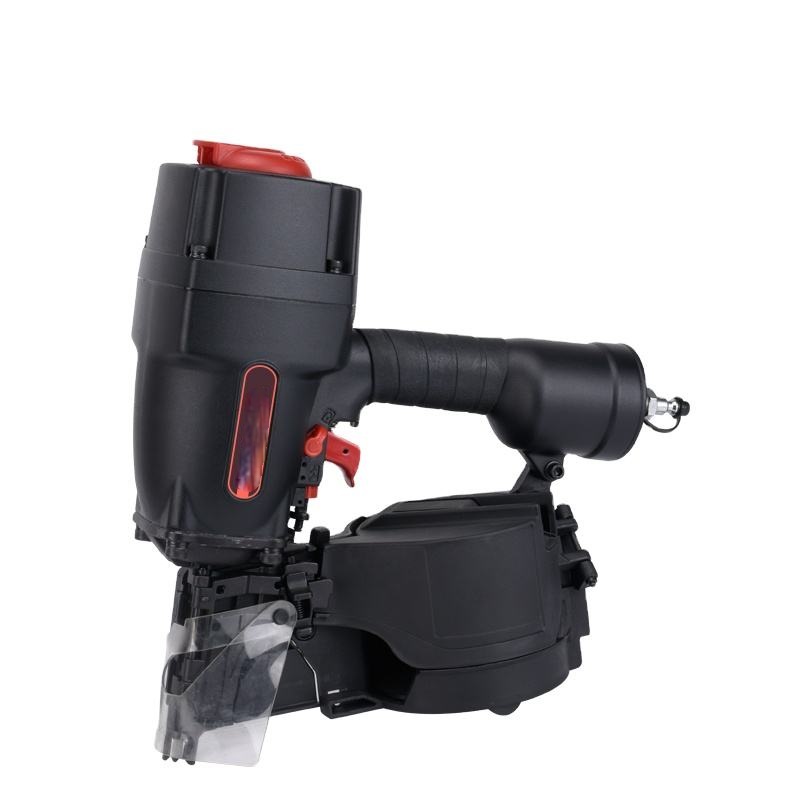

Industrial Pneumatic Fence Coil Nailer
Introduction
The Industrial Pneumatic Fence Coil Nailer is a high-performance, heavy-duty fastening tool engineered for high-speed, repetitive nailing tasks. Designed for commercial and industrial applications such as pallet manufacturing, fencing, framing, and structural assembly, it delivers consistent power, precision, and durability. Optimized for wire collated nails from 45mm to 90mm, this nailer features an extended magazine, high-pressure tolerance, and rugged construction.
Specifications
| Attribute | Details |
|---|---|
| Tool Type | Coil Nail Gun |
| Nail Type | Framing Nails (Coil) |
| Power Source | Pneumatic |
| Working Pressure Range | 90–110 PSI (6.1–7.5 bar) |
| Maximum Pressure | 120 PSI (8.3 bar) |
| Nail Length | 45–90 mm |
| Nail Shank Diameter | 2.87–3.7 mm |
| Magazine Capacity | 225 Nails |
| Minimum Nail Length | 1 1/4 inch |
| Maximum Nail Length | 3 1/2 inch |
| Tool Dimensions (L×W×H) | 376 × 356 × 132 mm |
| Net Weight | 4.25 kg |
| Packaging Dimensions | 40 × 40 × 16 cm |
| Gross Weight | 5.0 kg |
| Grade | Suitable for DIY and Industrial Use |
| Warranty | 1 Year Limited Warranty |
| Customized Support | OEM / ODM / OBM Available |
Key Features
- High-Performance Pneumatic Drive: Compressed air delivers consistent power and depth for heavy-duty use.
- Extended Magazine Capacity: Holds up to 225 nails per load, minimizing downtime.
- Wide Nail Compatibility: Supports 45–90 mm nail lengths and up to 3.7 mm shank diameter.
- Durable Construction: Rugged body built for high-pressure and frequent use.
- Optimized for Structural Fastening: Ideal for fencing, pallet assembly, and framing.
- Pressure Tolerance and Safety: Operates safely at 90–110 PSI, with a max of 120 PSI.
- Ergonomic Design: Balanced body and grip reduce operator fatigue.
- Versatile Application Range: Handles both outdoor rough tasks and precision assembly.
Applications
- Pallet & Crate Manufacturing: Efficient assembly of export-grade wooden pallets and containers.

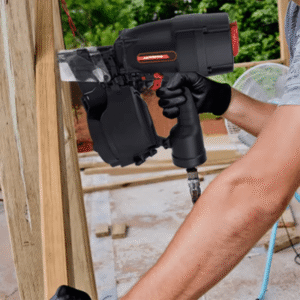

- Agricultural & Perimeter Fencing: Construct long stretches of fencing for farms or industrial zones.
- Framing and Structural Assembly: Suitable for temporary reinforcement and scaffold board securing.
- Industrial Carpentry: Works with pressure-treated wood and high-density materials.
- Packaging and Logistics: Used in warehouses and packaging centers for protective container assembly.
Conclusion
The Industrial Pneumatic Fence Coil Nailer is a robust commercial-grade fastening solution. Its high-capacity magazine, wide nail compatibility, and reliable pneumatic system make it ideal for manufacturing, construction, and packaging operations. It helps reduce operational downtime, increase fastening efficiency, and maintain quality and consistency, offering a scalable solution for B2B customers in industrial applications.
