ZAY7045FG 3 in 1 Lathe Mill and Drill Machine with DRO

Mini Milling Drill Machine

---

Briefing

The product is a ZAY7045FG 3-in-1 Lathe Mill Drill Machine. This machine is designed for efficient and precise milling, drilling, and lathe operations using a combination of functionalities.

---

Key Specifications

• Type: 3-in-1 Lathe Mill Drill Machine
• Material: Steel
• Operation: Manual
• Power: 1.5 kW
• Voltage: 220V
• Max Drilling Capacity: 45 mm
• Max Tapping Capacity: 20 mm
• Max Face Milling Capacity: 80 mm
• Max End Milling Capacity: 32 mm
• Table Size: 800 × 240 mm
• Travel: X-axis 500 mm, Y-axis 175 mm, Z-axis 400 mm
• Spindle Speed Range: 100–530 RPM, 530–2800 RPM
• Weight: Approximately 325 kg
• Dimensions: 770 × 880 × 1160 mm
• Control: Manual

---

Applications

• Metalworking: Ideal for milling, drilling, and lathe operations in various metalworking projects
• Machining: Suitable for use in machining and manufacturing plants
• Versatile Use: Can be used in construction, retail, and machinery repair shops

---

Summary

This 3-in-1 lathe mill drill machine offers a powerful and efficient solution for milling, drilling, and lathe operations. It is designed for manual operation, making it suitable for metalworking and machining applications. Its durable construction ensures reliable performance for accurate machining tasks.

---

Products Description

Main Features:

1. Step speed changed cyclically and spindle auto-feeding and cyclic change of feeding speed
2. Milling, drilling, tapping, boring, reaming
3. Head swivels ±90° vertically
4. Spindle micro feed precision
5. Adjustable gibs on table precision
6. Accurate position, strong rigidity, powerful cutting
7. Gear-driven type and square column

---

Specification

• Model: ZAY7045FG
• Max drilling capacity: 45 mm
• Max tapping capacity: 20 mm
• Max face milling capacity: 80 mm
• Max end milling capacity: 32 mm
• Max distance spindle nose to table: 450 mm
• Min distance spindle axis to column: 260 mm
• Spindle travel: 130 mm
• Spindle taper: MT3 / MT4 or R8
• Step of spindle speed: 6 steps
• Range of spindle speed (50Hz): 80–1250 rpm
• Range of spindle speed (60Hz): 95–1500 rpm
• Swivel angle of headstock (vertical): ±45°
• Table size: 800 × 240 mm
• Forward/backward travel: 175 mm
• Left/right travel: 500 mm
• Motor power: 1.5 kW (2HP)
• Net/Gross weight: 320/370 kg
• Packing size: 770 × 880 × 1160 mm
• Loading amount (20″ container): 36 pcs

---

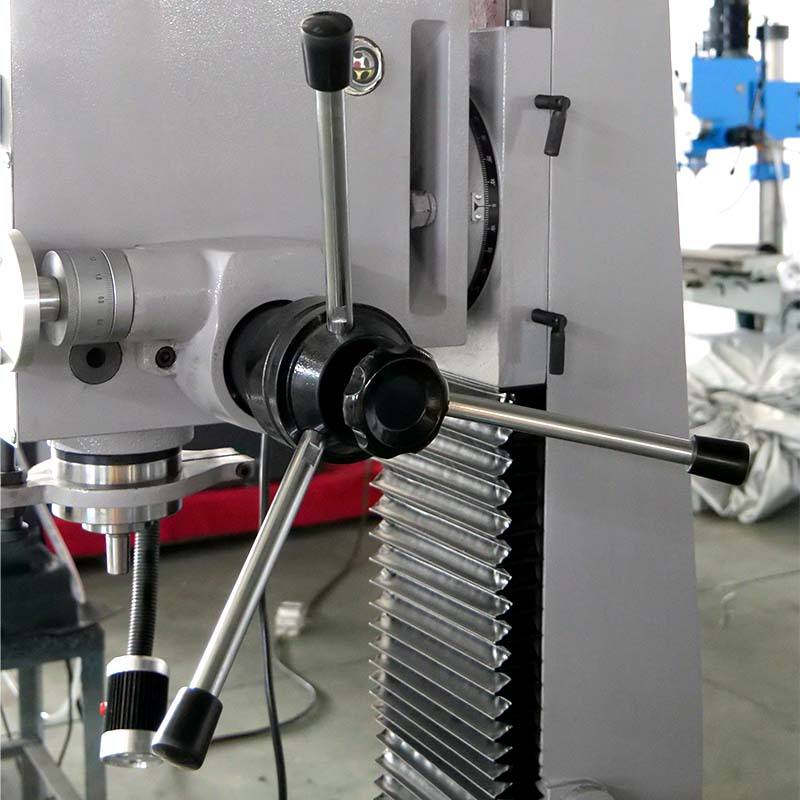

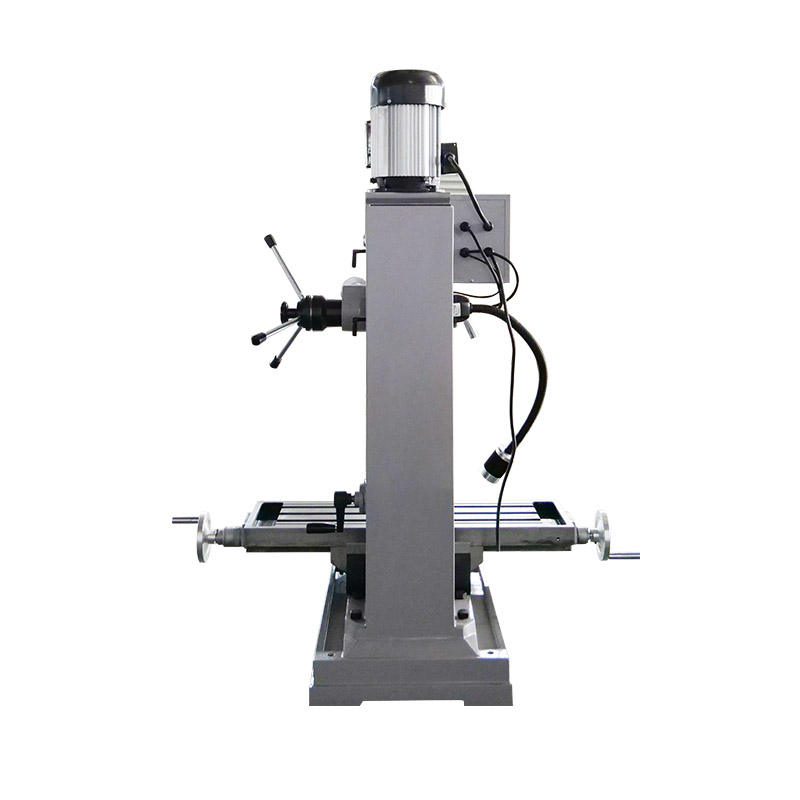

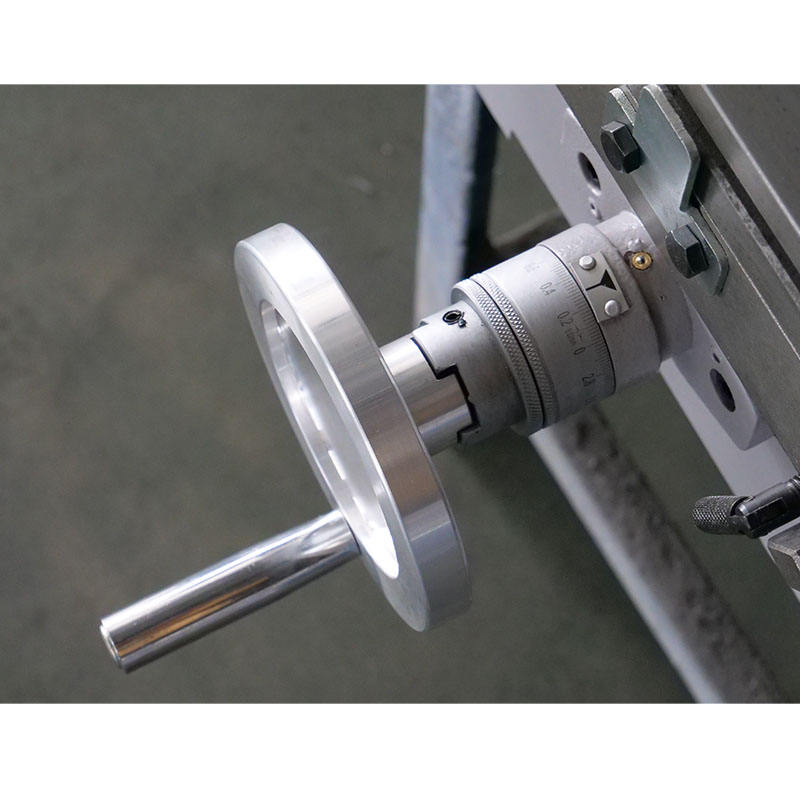

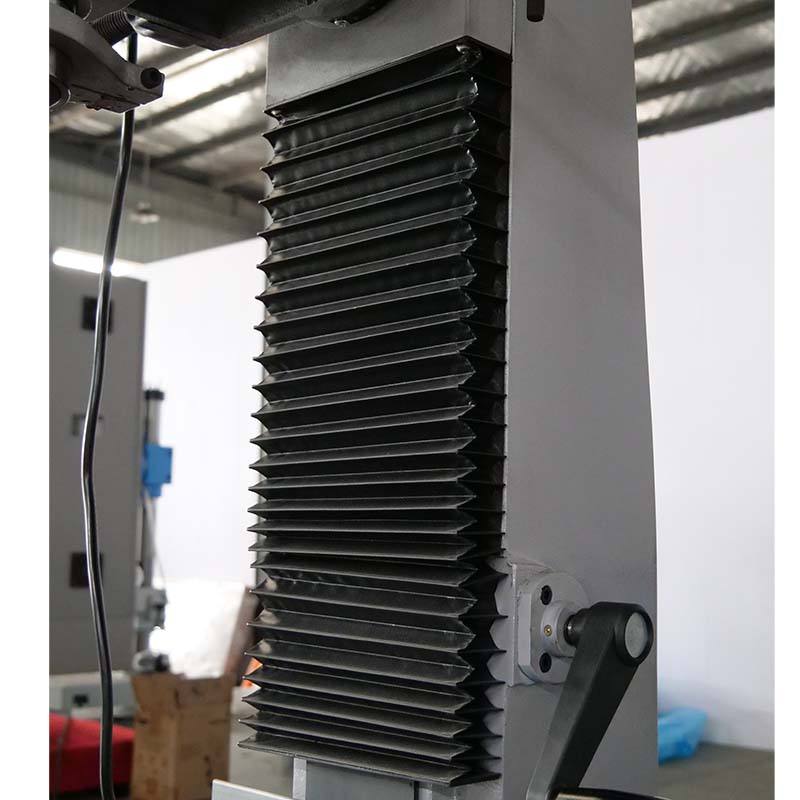

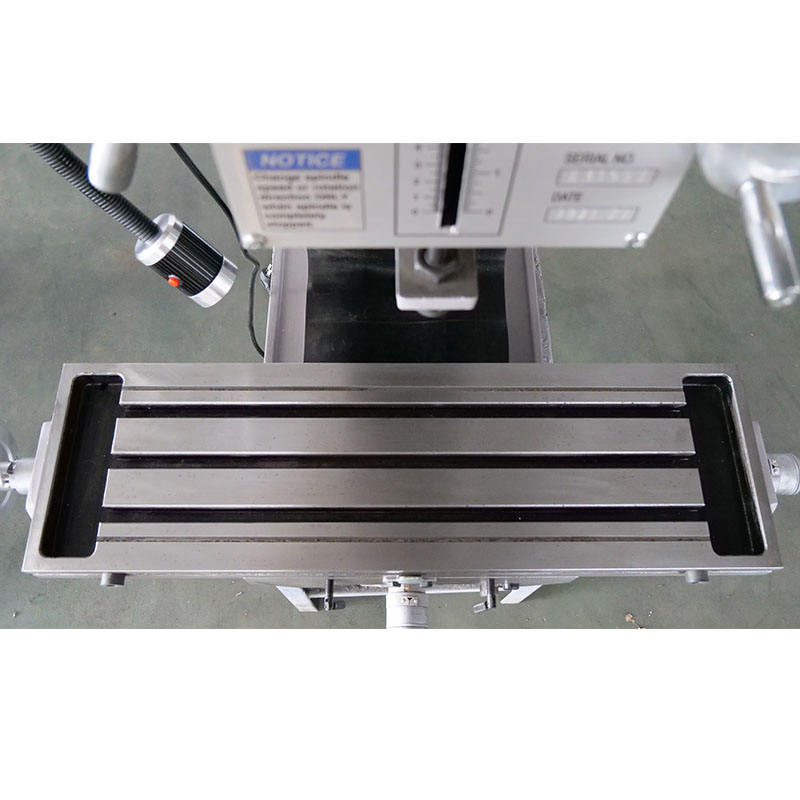

Detailed Images
