Cosmetics Manufacturing Machine (10L–5000L) – Product Briefing
Introduction

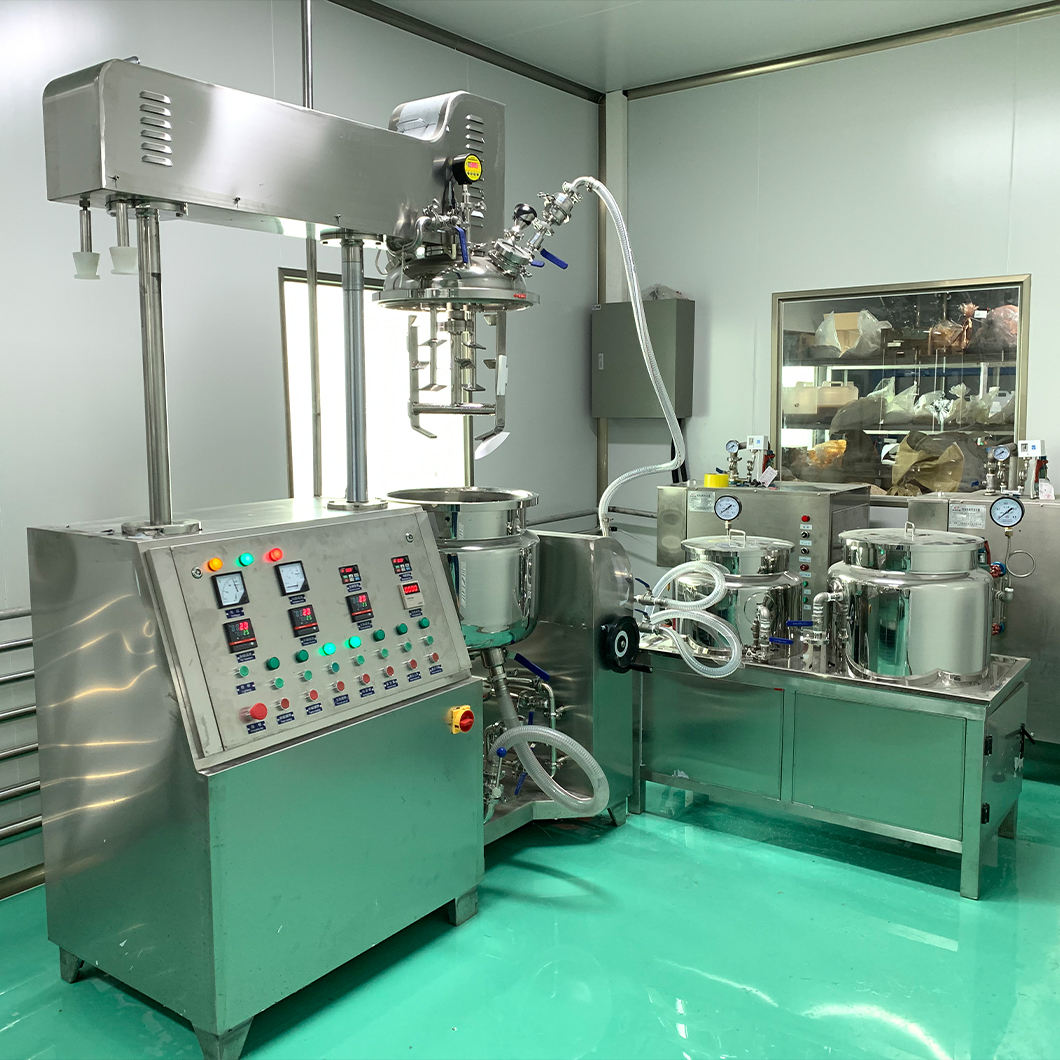

The Cosmetics Manufacturing Machine is a high-performance industrial system designed for producing a wide range of cosmetic products such as toothpaste, creams, lotions, gels, and ointments. Available in multiple capacities from 10L to 5000L, it provides scalable solutions for small labs to large-scale industrial production lines.
Specifications
| Feature | Details |
|---|---|
| Model Range | HVE-50 / 100 / 200 / 300 / 500 / 1000 / 2000 / 5000 |
| Working Capacity | 10L – 5000L |
| Material | SS316L Stainless Steel (Food & Pharmaceutical Grade) |
| Power System | Electric |
| Heating Method | Electric heating / Steam heating |
| Mixing System | Homogenizer + Agitator + Disperser |
| Vacuum System | Integrated vacuum pump |
| Scraper System | PTFE scraper for wall cleaning |
| Speed Control | Inverter-controlled (adjustable speed) |
| Homogenizer Speed | Up to 3000 rpm |
| Mixing Speed | 0–60 rpm |
| Surface Finish | Mirror polishing (Ra ≤ 0.8, GMP standard) |
Key Features
- Multi-Function Mixing System: Combines homogenizing, mixing, dispersing, and vacuum processing
- High-Precision Emulsification: Produces smooth, uniform cosmetic textures
- Vacuum Technology: Removes air bubbles for high-quality cream production
- SS316L Stainless Steel Construction: Ensures hygiene, durability, and corrosion resistance
- Adjustable Speed Control: Both agitator and homogenizer speeds are inverter-controlled
- CIP Cleaning System: Built-in cleaning system for easy maintenance and hygiene compliance
- PTFE Wall Scraper: Prevents material sticking and improves mixing efficiency
- GMP-Compliant Design: Suitable for pharmaceutical and cosmetic-grade production
Available Capacities & Configurations
| Model | Capacity | Homogenizer Power | Agitator Power | Disperser Power |
|---|---|---|---|---|
| HVE-50 | 15–50L | 2.2 kW | 0.37 kW | 0.75 kW |
| HVE-100 | 30–100L | 4 kW | 0.55 kW | 1.5 kW |
| HVE-200 | 60–200L | 5.5 kW | 0.75 kW | 2.2 kW |
| HVE-500 | 150–500L | 11 kW | 1.5 kW | 3 kW |
| HVE-1000 | 300–1000L | 15 kW | 2.2 kW | 4 kW |
| HVE-2000 | 600–2000L | 18 kW | 3 kW | 5.5 kW |
| HVE-5000 | 1500–5000L | 30 kW | 5.5 kW | 7.5 kW |
Applications
- Cosmetic manufacturing (creams, lotions, gels, toothpaste)
- Pharmaceutical ointments and medicinal creams
- Food-grade paste production (sauces, emulsions)
- Chemical blending and industrial formulations
- Personal care product manufacturing lines
Additional Features
- High-shear homogenizer (up to 3000 rpm)
- Siemens (or equivalent) motor system
- Mirror-polished inner tank surface (sanitary grade)
- CIP automatic cleaning system
- Vacuum emulsification for smooth texture output
Warranty & Service
- Warranty: 1 year (non-human damage parts replacement included)
- Inspection: Buyer inspection available before shipment
- Installation: On-site engineer support available (travel and accommodation covered by buyer)
Summary
The Cosmetics Manufacturing Machine series offers a complete, scalable, and GMP-compliant solution for modern cosmetic production. With advanced homogenizing technology, vacuum emulsification, and stainless steel construction, it ensures high-quality, consistent, and efficient manufacturing across a wide range of industries.
