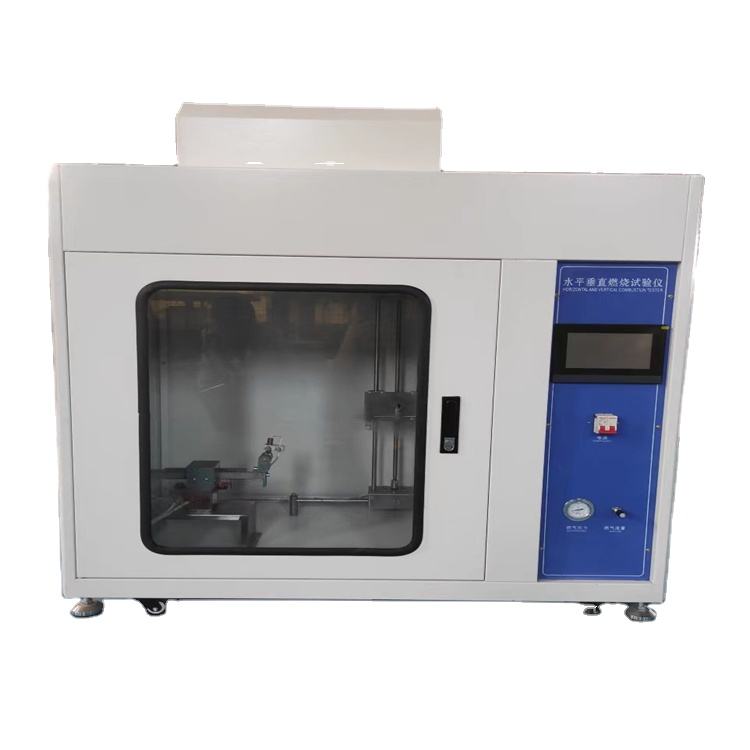

Horizontal & Vertical Burning Tester (Flammability Testing Equipment)
Key Features
Precise horizontal and vertical combustion testing
Adjustable flame height (20mm–130mm)
Temperature control from 100°C to 1000°C
Multiple combustion angle settings (0°, 20°, 45°)
Accurate timing system up to 999.9 seconds
Stable and heavy-duty 100 kg construction
Supports OEM / ODM / OBM customization
User-friendly control interface
Reliable and repeatable test performance
Designed for industrial safety compliance testing
Overview
This burning tester is designed for professional flammability and combustibility testing of materials. It provides accurate and repeatable test results, making it suitable for laboratories, manufacturing units, and quality control departments.
Performance & Accuracy
The system ensures precise flame control and timing accuracy, allowing detailed evaluation of material burning behavior, including flame spread, afterburning time, and residual flame duration.
Control & Operation
Equipped with an intuitive interface, the tester allows operators to easily set flame height, temperature, and timing parameters. This ensures consistent testing conditions across different samples.
Build & Stability
With a robust 100 kg structure, the machine is designed for stability during testing. Its durable construction supports repeated laboratory and industrial use without performance degradation.
Applications
Plastic and polymer testing laboratories
Textile and fabric flammability testing
Construction material safety evaluation
Electrical insulation material testing
Quality control and certification labs
Why Choose This Tester?
✔ Accurate flame and timing control
✔ Dual horizontal & vertical testing capability
✔ Heavy-duty stable construction
✔ Adjustable multi-parameter testing system
✔ Suitable for compliance and safety standards
Technical Specifications
Power Supply: 220V AC, 50Hz
Instrument Weight: ~100 kg
Timing Range: 0 – 999.9 s
Timing Accuracy: 10s ±0.2s / 30s ±0.2s
Residual Flame Time: 0 – 999.9 s
Afterburning Time: 0 – 999.9 s
Combustion Angle: 0°, 20°, 45°
Flame Height: 20 mm – 130 mm adjustable
Flame Temperature: 100°C – 1000°C
Customization: OEM / ODM / OBM supported
Warranty: 1 year
Packaging Details
Single item packaging
Package size: 120 × 120 × 150 cm
Gross weight: 150 kg
Applications
Material testing laboratories
Industrial safety compliance
R&D departments
Manufacturing quality control
Certification and inspection centers
