High Wood Machine Efficiency Multi Blade Ripsaw Square Timber

High Efficiency Wood Multi-Blade Ripsaw Machine for Square Timber

Key Attributes

Type: Multi-blade ripsaw
Material: Steel
Operation: Automatic
Power: 22 kW (main motor)
Voltage: 380V / 50Hz
Cutting Range: 450–4000 mm
Rotary Speed: 3800 RPM
Weight: Approx. 1700 kg
Dimensions: 3340 × 950 × 1400 mm
Control System: Electric

Product Specifications (Model Variant)

Type: Multi blade circular saw
Voltage: 380V
Warranty: 1 Year
Weight: 560 kg
Power: 12.5 kW
Core Components: PLC, engine, motor
Usage: Woodworking
Design Style: Vertical
Origin: Heilongjiang, China
Brand: HLJ Zeta
Dimensions: 1750 × 800 × 1400 mm

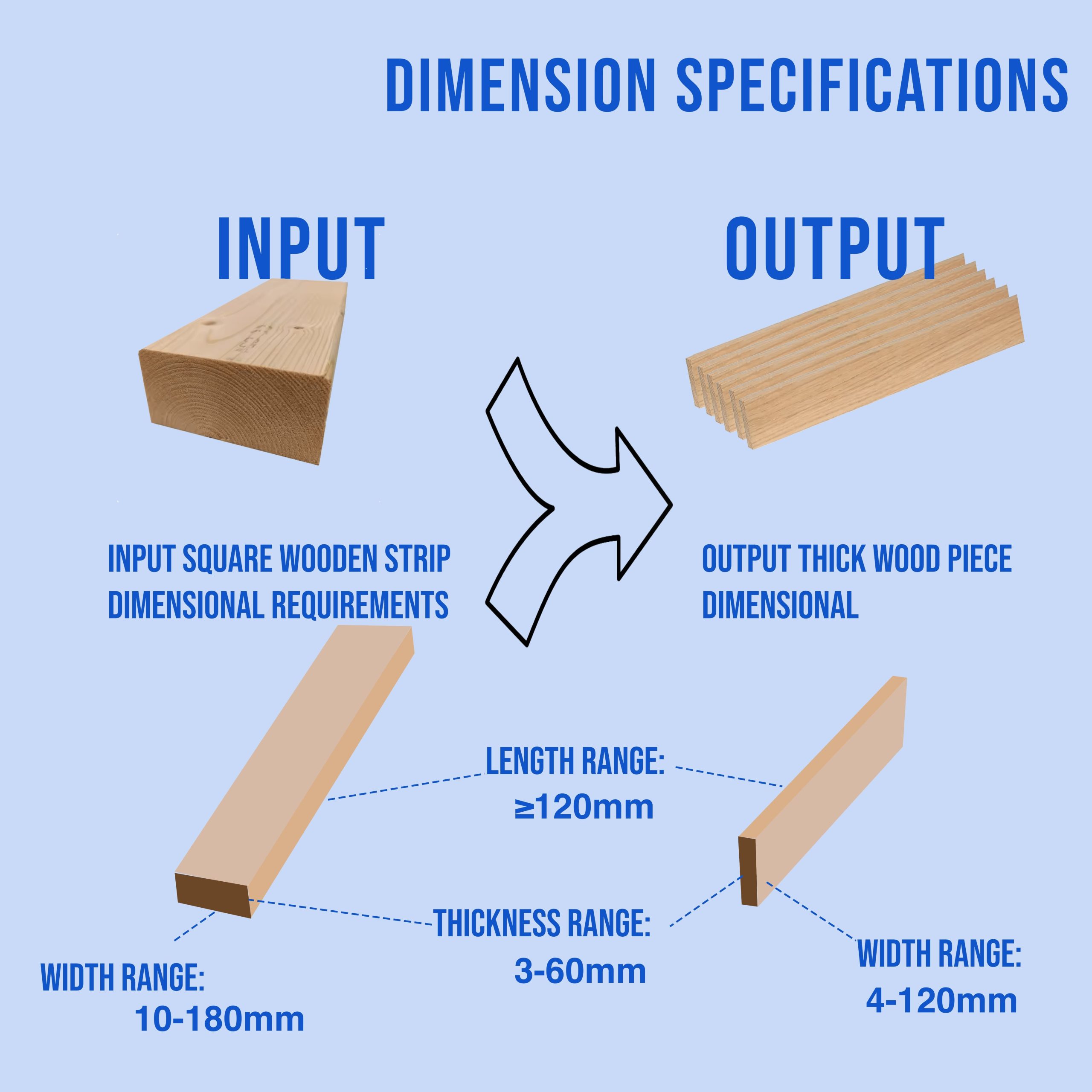

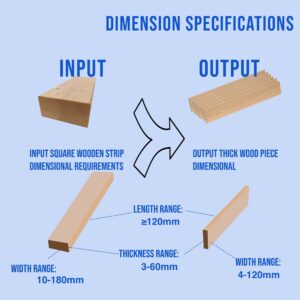

Cutting Length: ≥120 mm
Max Cutting Thickness: 65 mm
Max Cutting Width: 180 mm
Saw Blade Diameter: 230 mm
Feed Speed: 4–15 m/min
Production Efficiency: 6–10 m³/person/day
Rotation Speed: 4500 RPM

Key Features

High Efficiency Cutting: Multi-blade system enables fast and continuous timber processing
Strong Motor Power: 22 kW main motor ensures stable heavy-duty performance
Smooth Cutting Finish: High-speed rotation delivers accurate and clean cuts
Adjustable Feed System: Variable feed speed for different wood densities
Safety Design: Anti-kickback protection improves operator safety
Wide Processing Range: Handles various board sizes and timber lengths
Improved Model Features:

• Increased motor power
• Variable frequency drive (adjustable feed speed)
• Expanded cutting thickness capacity up to 65 mm

Applications

Wood Processing Plants: Efficient production of square timber and wooden components
Sawmills: High-volume log cutting and board production
Furniture Manufacturing: Preparation of uniform wooden materials
Construction Industry: Timber processing for structural use
Industrial Wood Workshops: Mass production of processed wood materials

Summary

The high-efficiency multi-blade ripsaw machine is designed for fast, accurate, and large-scale wood cutting. With strong motor power, multi-blade operation, and adjustable feed control, it delivers stable performance for sawmills and wood processing industries requiring high productivity and precision.
