Automatic High Speed Wood CNC Cut Off Saw Machine for Wood Pallet
Key Attributes
Type: CNC cutting machine
Material: Steel
Operation: Automatic
Power: 15 kW
Voltage: 380V / 50Hz
Cutting Length: 400 mm to unlimited
Cutting Width: 20–200 mm
Cutting Thickness: 12–80 mm
Rotary Speed: 4500 RPM
Weight: Approx. 1000 kg
Dimensions: Customizable
Control System: Electric CNC system
Product Description (Model: Automatic Push Feed Saw BCC-450 / BCC-550)
This automatic push feed saw is designed for high-volume wood cutting operations, especially for pallet production and industrial timber processing. It combines CNC control, servo-driven feeding, and automatic pushing systems to ensure precision, speed, and safety.
Machine Features
Automatic Push Feed System: Servo motor-driven feeding ensures precise and stable material positioning
High Efficiency Cutting: Designed for continuous mass production of wooden components
Touch Screen Control: Easy programming of cutting sizes, quantities, and batches
Multi-Piece Loading: Supports single or multiple wood pieces for continuous operation
High Accuracy: Cutting precision up to ±0.3 mm
Safety Design: Upcut saw system protects operators and stabilizes material during cutting
Dust Extraction Support: Vacuum-assisted structure improves cleanliness and working environment
Memory Function: Stores cutting programs for repeated production batches

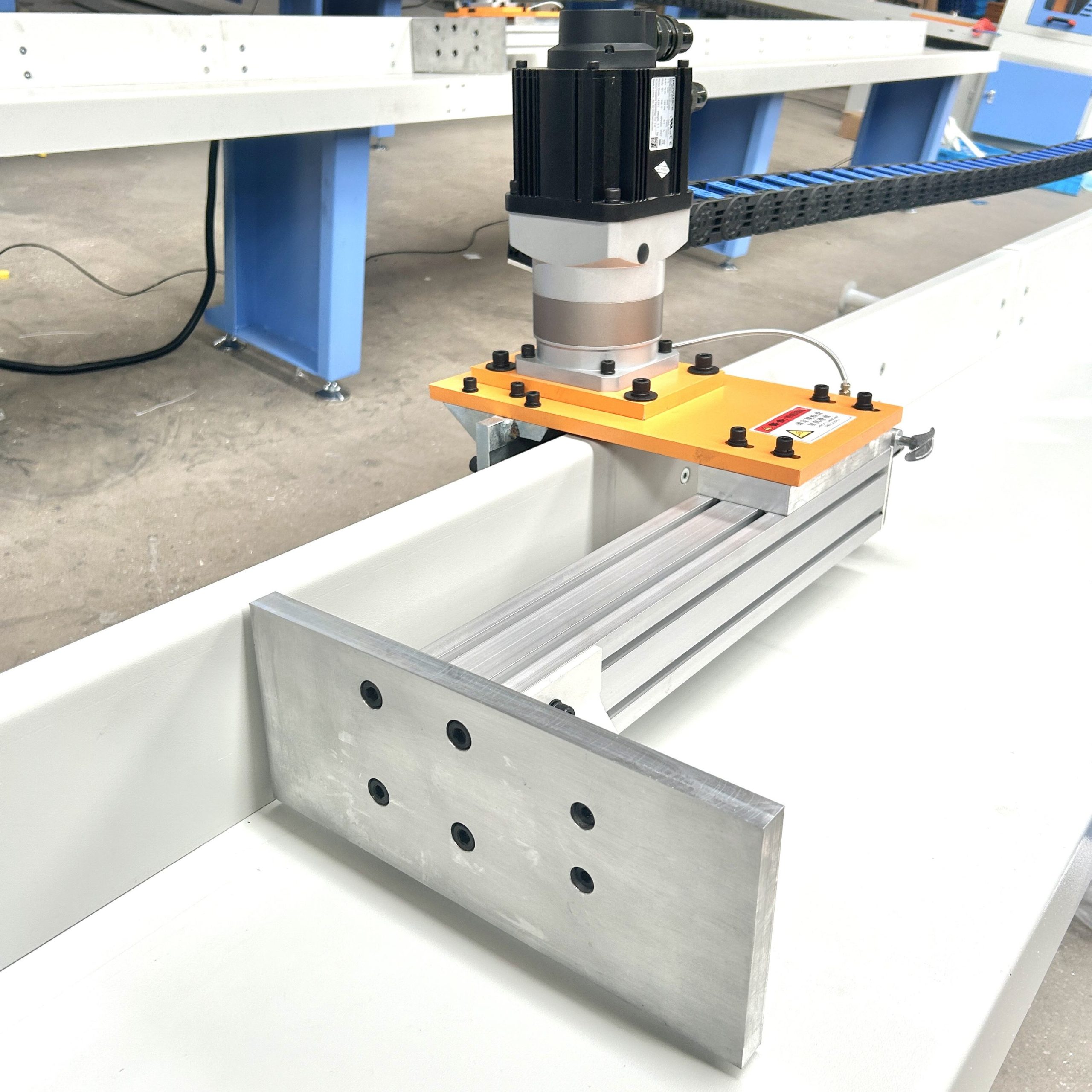

Rack & Pinion Drive: Ensures smooth and accurate pushing movement
Technical Specifications
Model: BCC-450 / BCC-550
Feed Servo Motor: 1.3 kW
Saw Blade Motor: 5.5 kW / 7.5 kW
Saw Blade Size: 450–550 mm (varies by model)
Sawing Accuracy: ±0.3 mm
Feeding Speed: 0–60 m/min
Reverse Speed: 0–70 m/min
Saw Blade Speed: 3060 RPM
Voltage: 380V / 50Hz / 3-phase
Feed Platform Length: 3m / 5m / 7m (optional)
Discharge Platform: 1.5m (optional)
Cutting Capacity
Sawing Size:
- BCC-450: 200 × 120 mm
- BCC-550: 300 × 150 mm
Cutting Range:
- Length: 400 mm to unlimited
- Width: 20–200 mm
- Thickness: 12–80 mm
Applications
Wood Pallet Production: High-speed cutting of pallet components
Furniture Manufacturing: Mass production of wooden parts
Wood Processing Plants: Large-scale timber cutting
Joinery Workshops: High-precision batch cutting
Industrial Wood Production: Automated cutting lines for efficiency
Summary
The automatic high-speed wood CNC cut-off saw machine is a powerful and fully automated solution for large-scale wood cutting operations. With servo push feeding, CNC control, and high cutting accuracy, it significantly improves productivity, reduces labor, and ensures consistent results for pallet manufacturing and industrial woodworking applications.
