ZAY7045FG/1 Mini Benchtop Milling & Drilling Machine

Introduction

The ZAY7045FG/1 is a high-quality mini benchtop vertical drilling and milling machine designed for precise metal processing. It supports multiple machining operations including drilling, milling, tapping, boring, and reaming, making it suitable for workshops and light industrial applications. Its rigid structure and gear-driven system ensure stable and accurate performance.

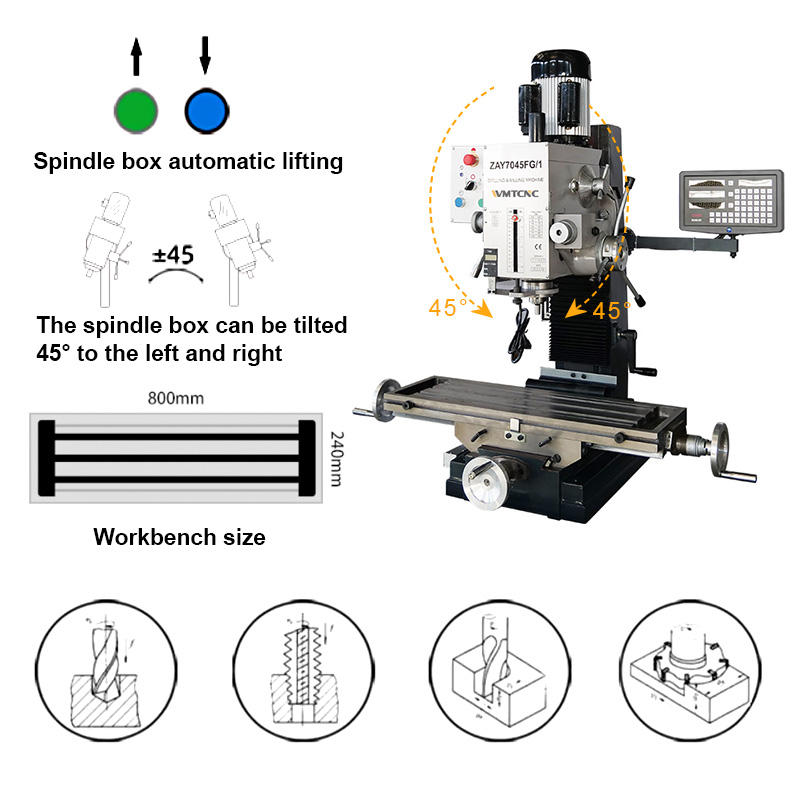

Main Features

Multi-Function Operation: Supports milling, drilling, tapping, boring, and reaming
Step Speed Control: Cyclic step speed change with adjustable feed system
Auto Feeding System: Spindle auto-feeding with variable speed control
Swivel Head Design: Head can rotate ±90° for flexible machining angles
High Precision Feed: Micro-feed system for accurate machining control
Strong Rigidity: Gear-driven structure with square column for stability
Adjustable Table: Precision adjustable gibs for improved accuracy

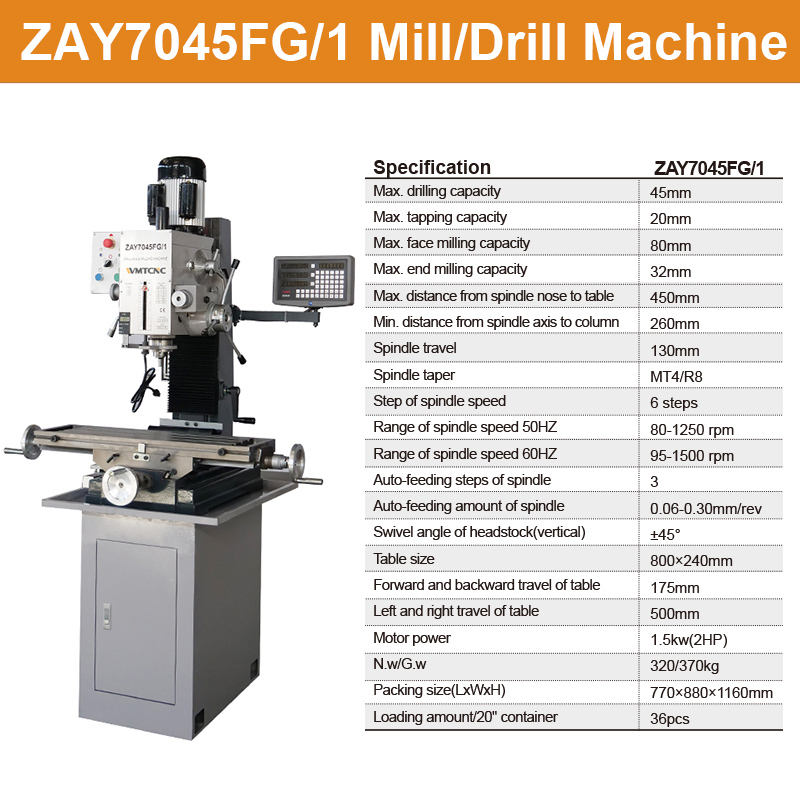

Specifications (ZAY7045FG/1 Series)

Max Drilling Capacity: 45 mm
Max Tapping Capacity: 20 mm
Max Face Milling Capacity: 80 mm
Max End Milling Capacity: 32 mm
Distance (Spindle Nose to Table): 450 mm
Distance (Spindle Axis to Column): 260 mm
Spindle Travel: 130 mm
Spindle Taper: MT4 / R8
Spindle Speed Range: 80–1250 rpm (50Hz) / 95–1500 rpm (60Hz)
Auto Feed Steps: 3
Feed Rate: 0.06–0.30 mm/r
Head Swivel Angle: ±45°
Table Size: 800 × 240 mm
Table Travel (X/Y): 500 mm / 175 mm
Motor Power: 1.5 kW (2 HP)
Net/Gross Weight: 320 / 370 kg
Packing Size: 770 × 880 × 1160 mm
Container Load (20ft): 36 pcs

Applications

Metal Workshops: Precision drilling and milling tasks
Manufacturing Units: Small to medium-scale machining operations
Repair Workshops: Maintenance and part fabrication
Educational Use: Technical training and engineering labs
DIY Industrial Use: Advanced hobby and prototyping work

Summary

The ZAY7045FG/1 benchtop milling and drilling machine offers strong rigidity, multi-function capability, and precise control for metal processing tasks. It is a reliable solution for workshops and industrial users needing compact yet powerful machining equipment.
