Introduction

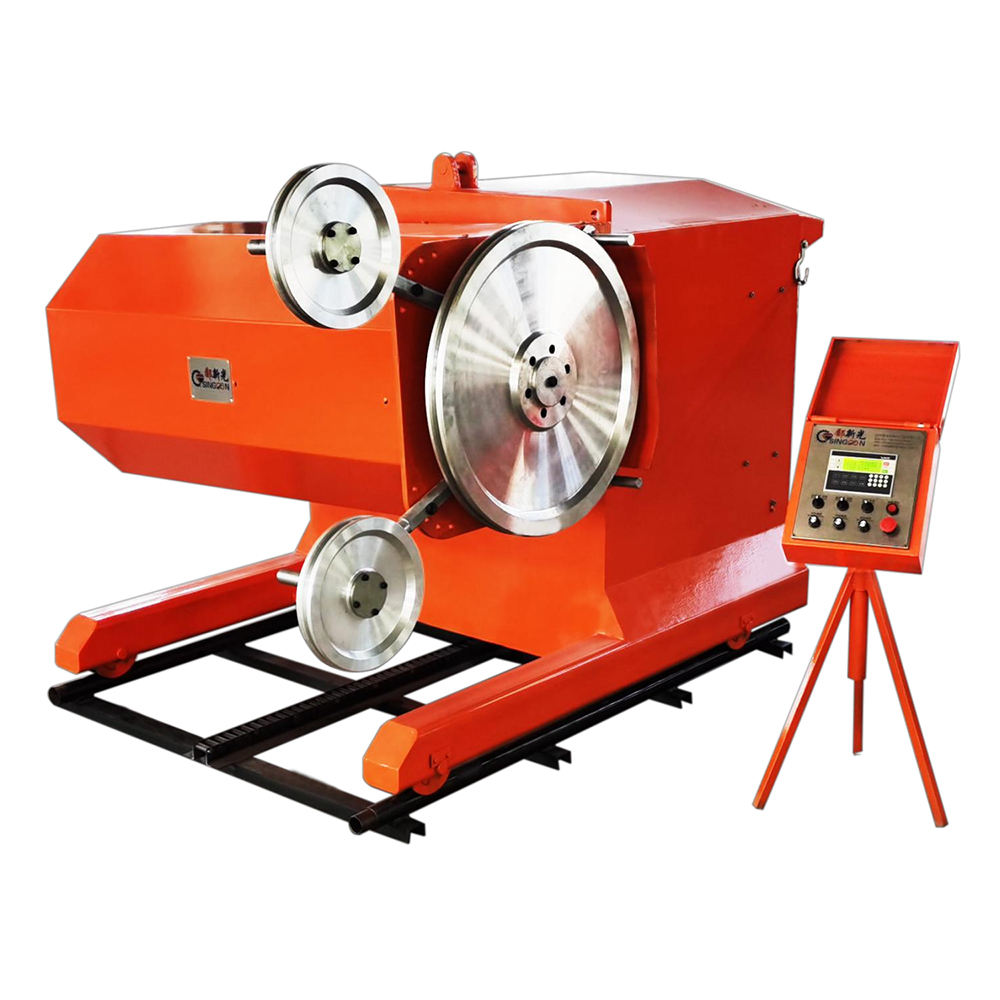

The XG-55KW-8P Diamond Wire Saw Cutting Machine is engineered for efficient and precise cutting of granite and other stones in quarry operations. This versatile machine is suitable for a wide range of quarries including granite, marble, sandstone, basalt, limestone, slate, travertine, onyx, as well as for structural building demolition. It can flawlessly execute vertical cuts, horizontal cuts, inclined cuts, and plunge (blind) cuts.

Key Features

• High Cutting Efficiency: Designed to deliver precise cuts with high accuracy, optimizing stone extraction.

• Smart Tensioning & Control: Utilizes a vector inverter with invariable torque. The feed speed regulates automatically and smoothly as the cutting force changes.

• Adjustable Wire Speed: The main motor is powered by an inverter to obtain the perfect wire speed customized to the specific hardness of the stone.

• Extended Service Life: Features a double dust-proof and waterproof structure to protect the main motor. Guide poles and the screw rod are completely isolated from dust and water by flexible lags.

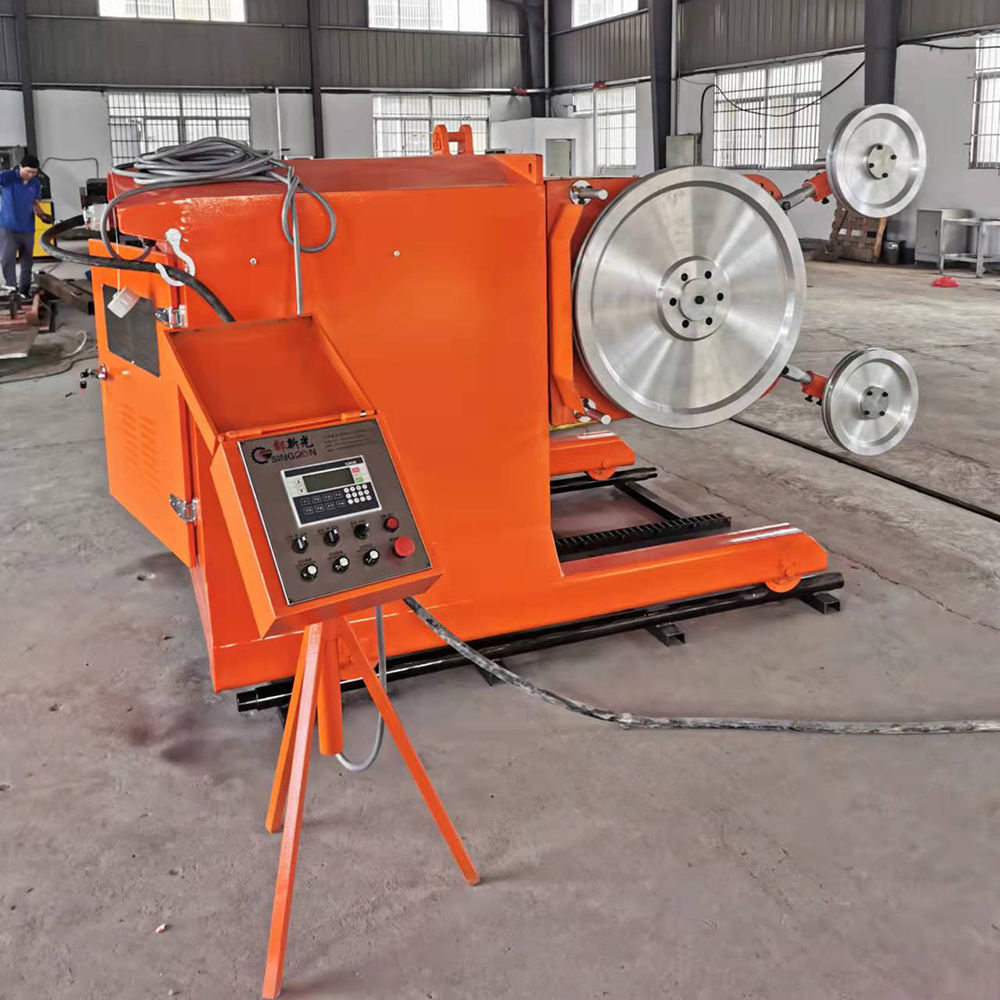

• User-Friendly Operation: Allows for easy manual or automatic operation. Displays real-time parameters such as main motor current and flywheel speed, while the driving flywheel position and angle are easily regulated by motors.

• Easy Maintenance: The control cabinet is securely isolated inside a dedicated side door for hassle-free maintenance access.

Product Specifications

General Dimensions & Weight

• Overall Size: 2,200 mm (L) × 1,700 mm (W) × 1,650 mm (H)

• Rail Length: 2m × 3pcs + 1m × 1pc

• Gross Weight: 2,800 kg

Motor & Electrical Configuration

• Motor Power: 55 kW (100 HP)

• Gross Power: 59 kW (100 HP)

• Secondary Inverter Power: 1.5 kW (2 HP)

• Number of Poles: 8 poles

• Motor Speed: 720 rpm

• Electrical Phase: 3 phases

• Voltage / Frequency: AC 320–420V, 50/60Hz

Performance & Cutting Capacities

• Wire Speed: 0 – 33 m/s

• Wire Length Capability: 20 – 120 m

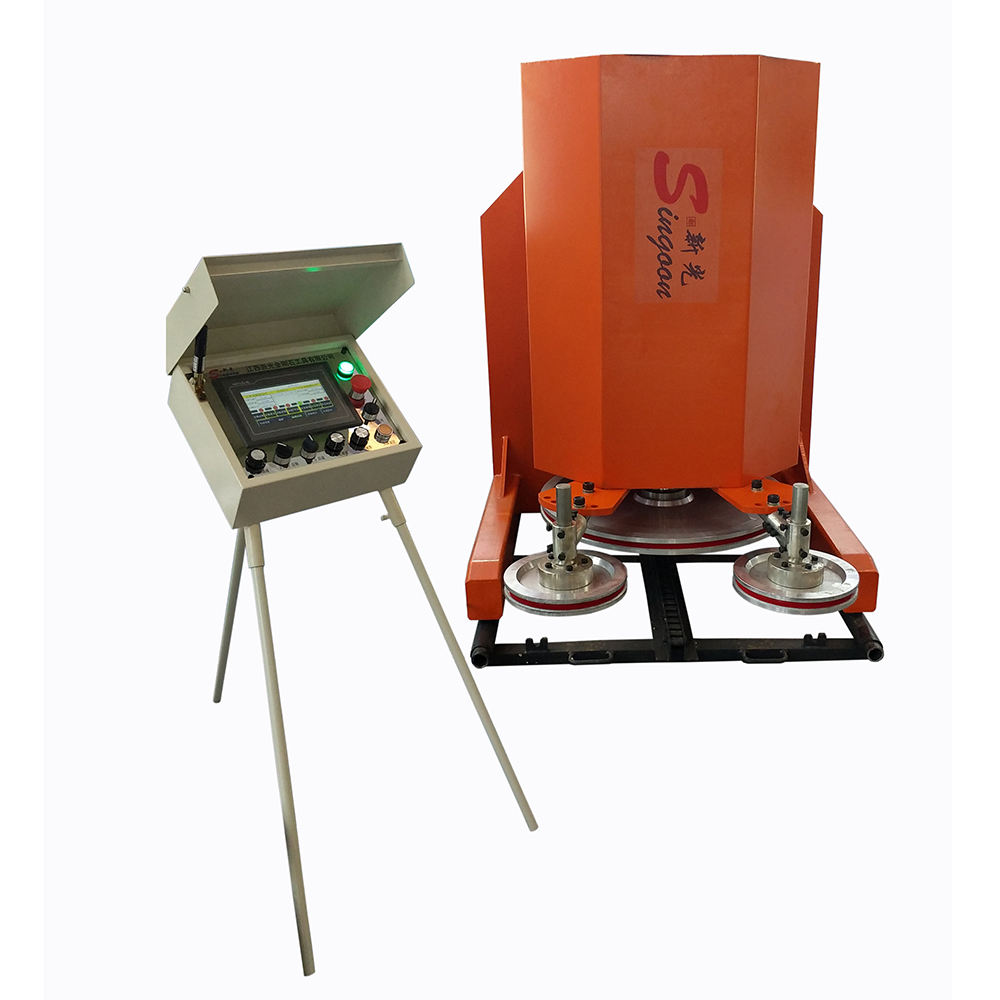

• Rotation Angle (Electric): 360°

• Moving Speed: 0 – 90 m/h

• Lateral Moving Distance: 560 mm

• Max. Lateral Cutting Distance / Thickness: 1,900 mm

• Production Capacity: 1,000 m²

Technical Parameters

• Flywheel Diameter: 800 mm

• Pulley Diameter: 360 mm

• Allowed Working Temperature: -15°C to 40°C

Applications

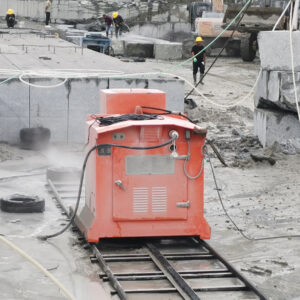

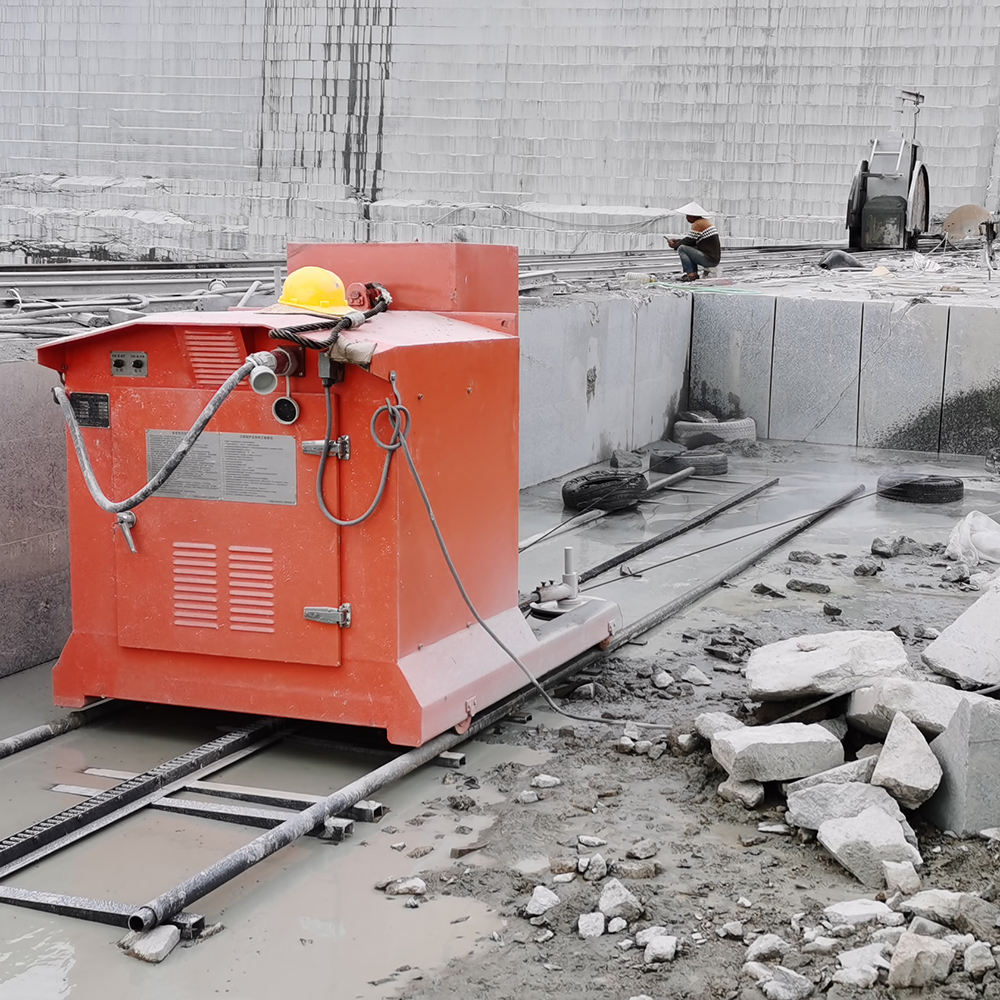

• Quarrying Operations: Perfect for cutting and squaring blocks of granite, marble, quartz, sandstone, basalt, limestone, slate, travertine, and onyx.

• Civil Engineering & Construction: Ideal for controlled structural dismantling and demolishing buildings.

Considerations

• Installation: Professional installation is recommended to ensure optimal alignment, performance, and workplace safety.

• Maintenance: Regular maintenance of the dust-proof seals and water isolation infrastructure is essential to keep the machine operating efficiently and to prolong its lifespan.
