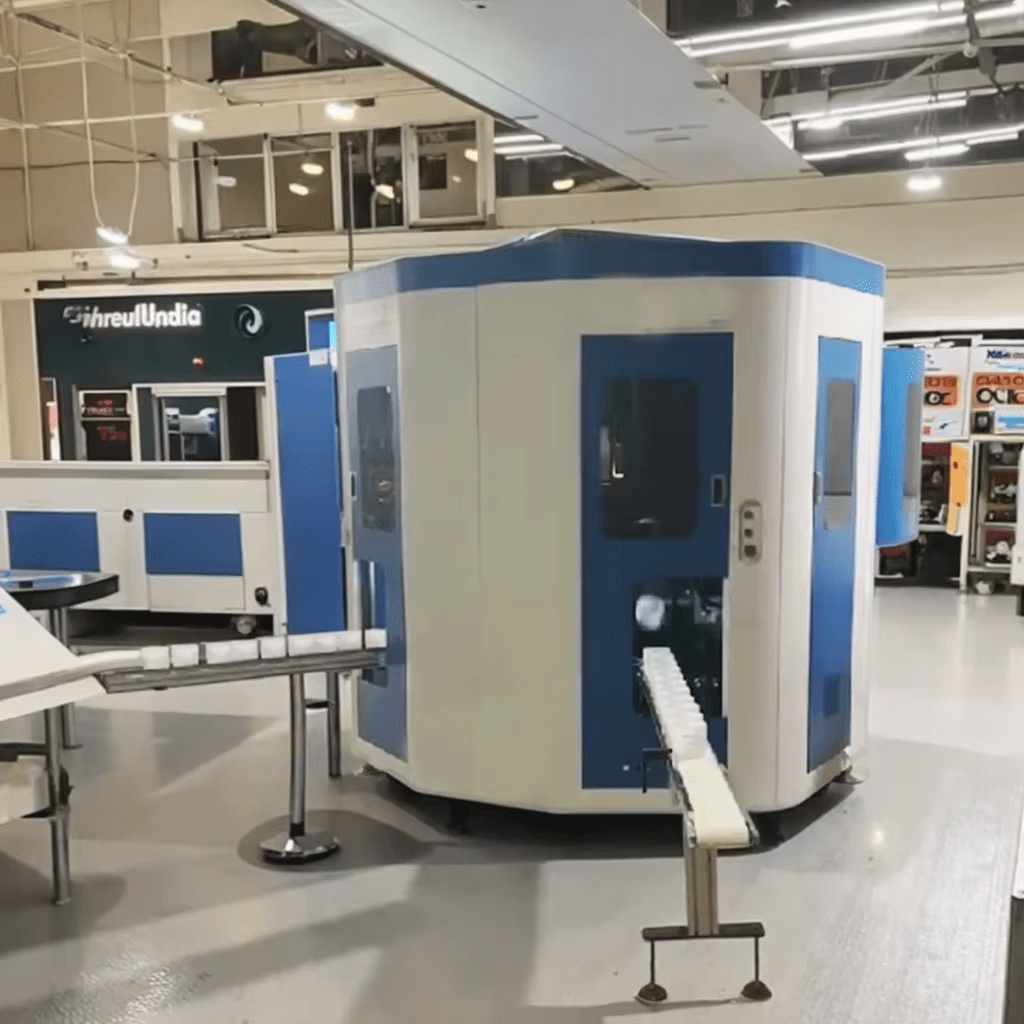

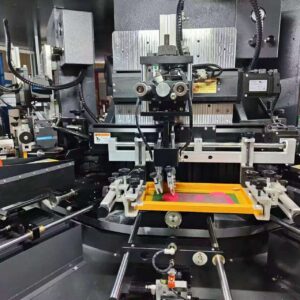

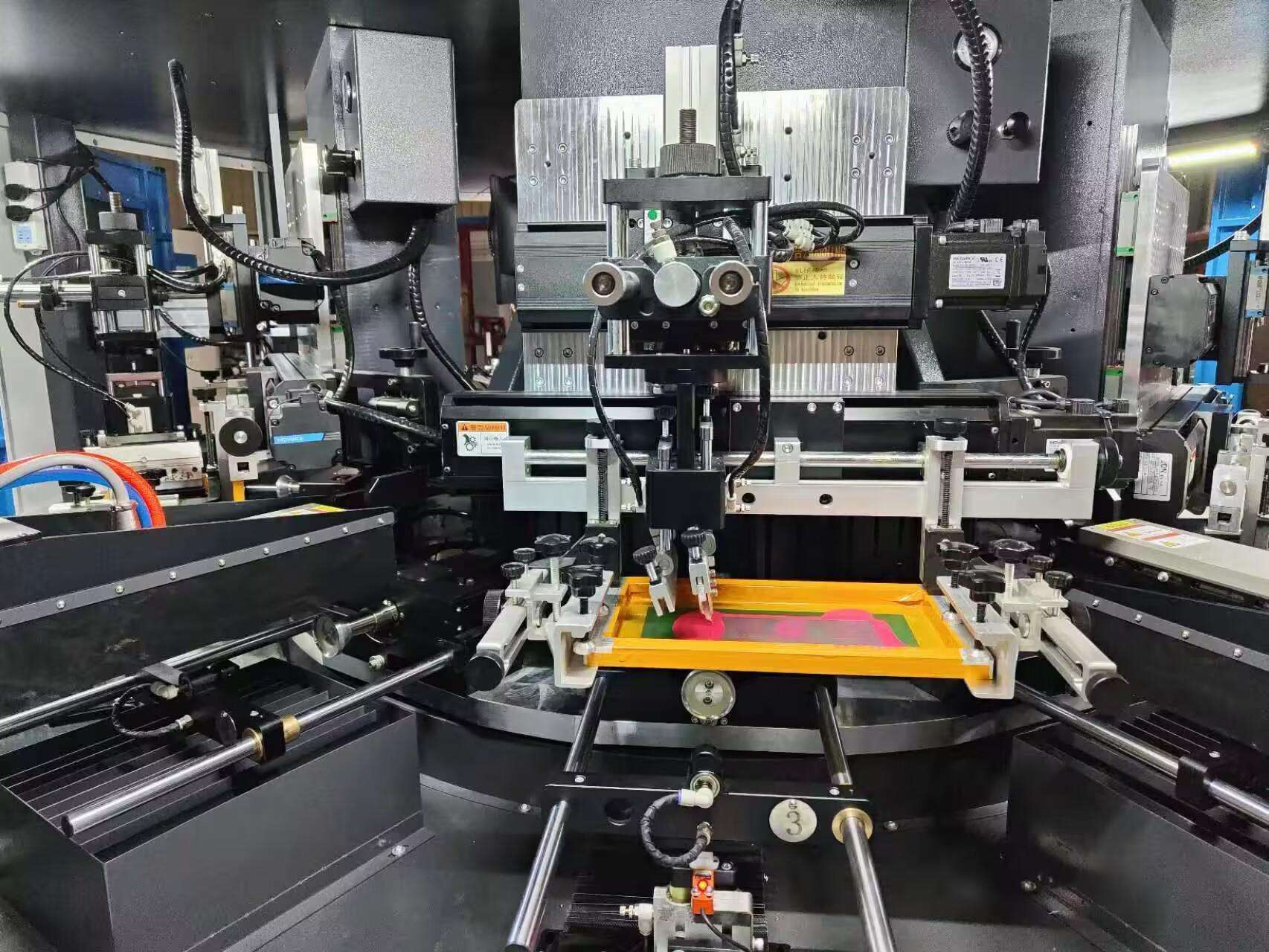

Automatic Cylindrical Container Glass Perfume Bottle Screen Printing Machine (CCD Positioning)
Briefing:
The product is an LC-Brand fully automatic cylindrical container screen printing machine designed for high-precision printing on bottles, jars, cups, tubes, and other cylindrical or shaped containers. It features CCD image positioning and full servo control for accurate and efficient multi-color printing.
Key Features:
Material: High-quality industrial-grade construction for durability
Design: Ergonomic and user-friendly structure
Efficiency: High-speed, precise automatic printing system
Capacity: Suitable for a wide range of cylindrical and shaped containers
Safety: Equipped with safety protection systems for operator safety
Automation: Fully automatic with servo-controlled system

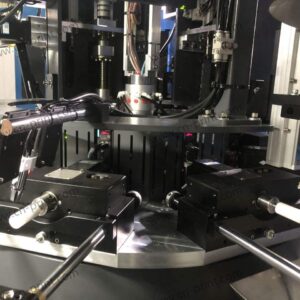

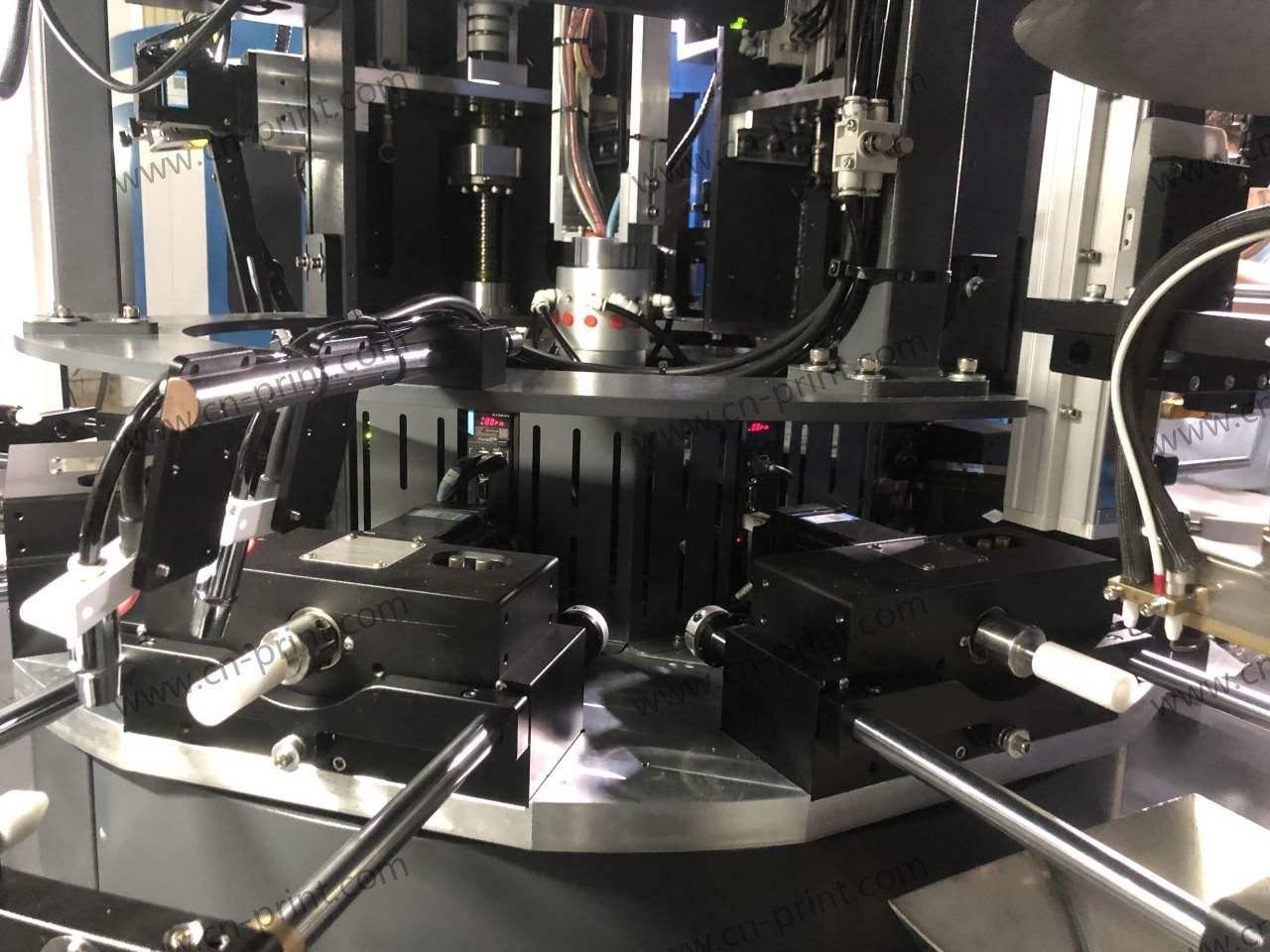

Positioning: CCD visual positioning system for high accuracy
Printing Colors: Supports 1–10 color printing
Curing System: LED UV or normal UV drying options
Operation: PLC + touch screen control system
Loading System: Automatic loading and unloading with servo robot
Specifications:
Max Printing Speed: Up to 2700 pcs/hour (depending on model)
Max Printing Area: Suitable for cylindrical containers up to 100mm diameter and 310mm length
Power: Electric (380V / 50Hz)
Dimensions: 5400 × 2000 × 1700 mm
Weight: 4000 kg
Printing Accuracy: Up to 0.1 mm
Color Capacity: Single to multi-color (up to 10 colors)
Control System: PLC + industrial touch screen
Core Components: Servo motor, PLC, CCD system, pressure vessel
Condition: New
Certification: CE certified
Warranty: 1 year
Applications:

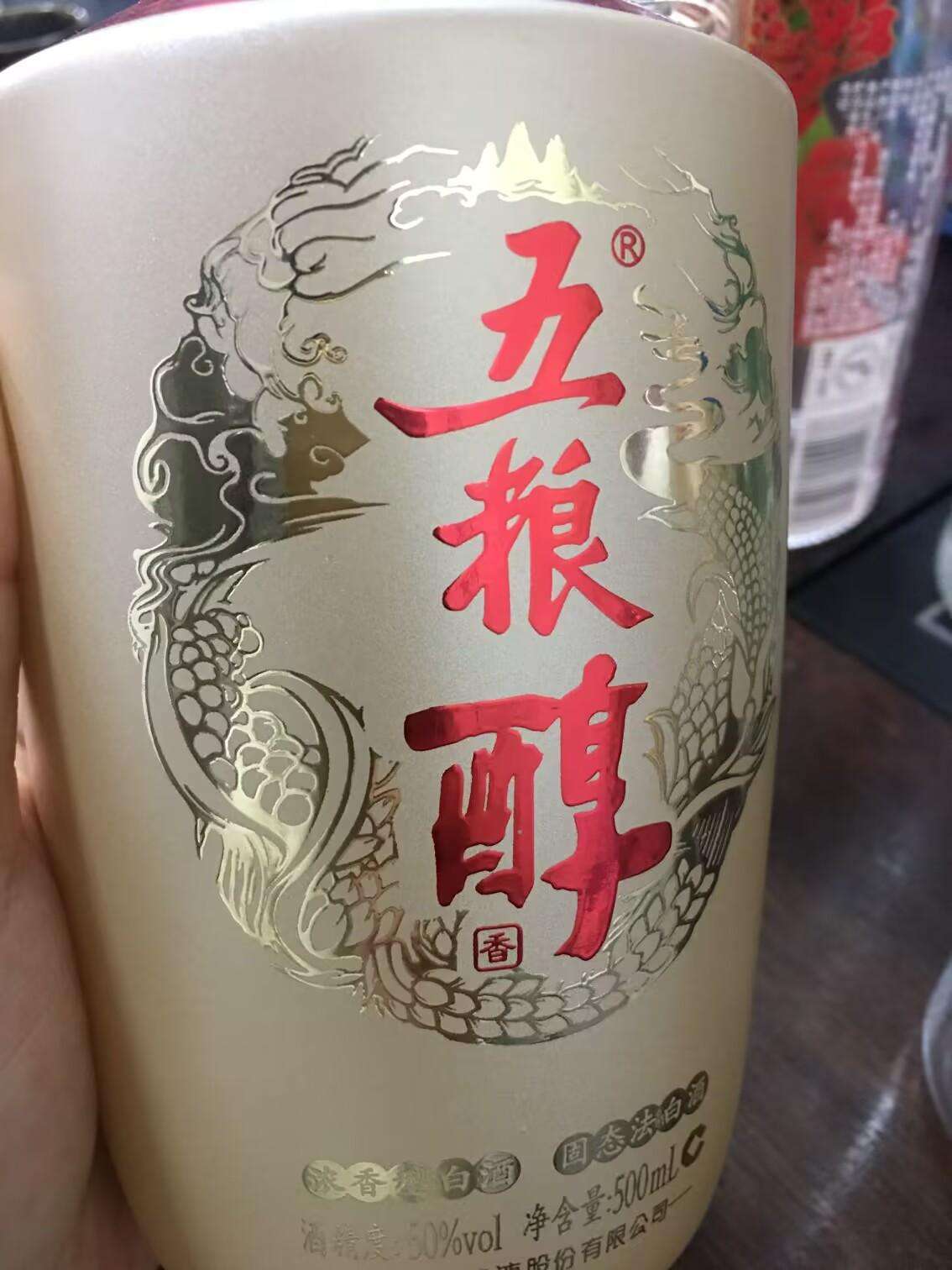

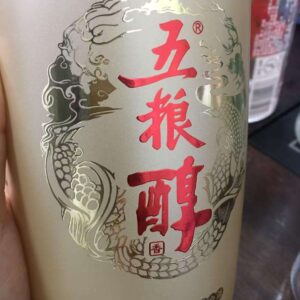

Cosmetic Industry: Perfume bottles, jars, cosmetic tubes
Beverage Industry: Glass and plastic bottles
Pharmaceutical Industry: Medicine containers and packaging
Advertising & Packaging: Promotional items and branded containers
Summary:
This fully automatic CCD-based cylindrical screen printing machine is a high-precision industrial solution designed for multi-shape container printing. With servo automation, CCD positioning, and UV curing technology, it delivers fast, accurate, and consistent printing for cosmetic, beverage, pharmaceutical, and packaging industries.
