Glass Bottle Wine Processing Plant Whiskey Vodka Beer Production
Key attributes
Industry-specific attributes
Packaging Type – Cartons
Packaging Material – Wood
Voltage – 380v/220v/110v
Filling material – Beer, Milk, Water, Oil, Juice, Other
Other attributes
Application – Food, Beverage
Automatic grade – Automatic
Warranty – 2 years
Filling accuracy – ±0.2%
Driven type – Electric
Dimension(lwh) – 2200x2100x2200mm
Key selling points – Easy to Operate
Video outgoing-Inspection – Provided
Core components – Motor, Pressure vessel, Pump, PLC, Gear, Bearing, Gearbox, Engine, Other
Filling nozzle – 12, 2, 16, 8
Keywords – Alcoholic whisky bottle filling machine
Bottle type – PET Plastic Bottle Glass Bottle
Material – Stainless Steel 304/316
Control – PLC+ Touch Screen + Inverter
Bottle size – 0.1-2L
Filling liquid – Mineral / Pure Water
Filling system – Gravity filling water valve
Function – Washing Filling Capping
Packaging and delivery
Selling Units: – Single item
Single package size: – XX cm
Single gross weight: – kg

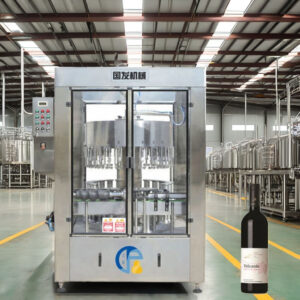

This machine is suitable for filling various kind of glass bottle for wine, vodka, whiskey, spirit, alcohol, soy sauce, vinegar etc. It has the advantage of no bottles no filling and with high filling accuracy. It has 12/18/24 /36 nozzles for you to choose. This machinery, will provide you the best solution for your products. If you are interested in this kind filling machine, pls feel free to contact us.
? Low vacuum filling: avoid the foaming and leaking, and if there are defects in the bottle, filling will not be started.
? Spraying filling: Liquid flows down along the sides of the bottles to ensure the filling quality
? No bottle broken: bottle holding devices can flexibly adjust bottle location, avoiding any possible bottle damage or even machine damage.
? Long service life and easy maintenance.

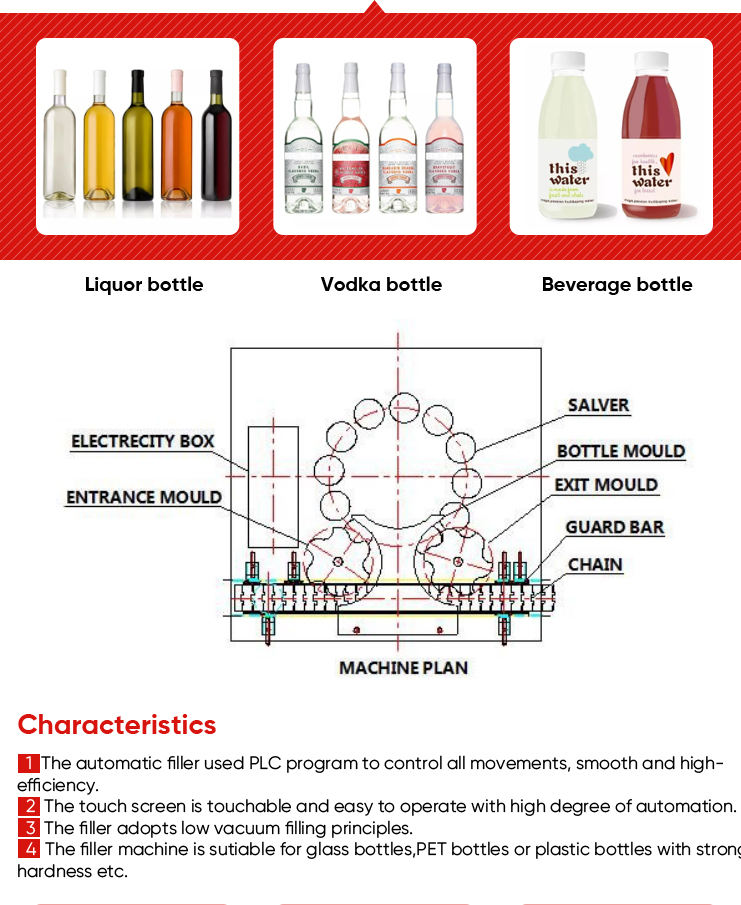

This Drawing is one of our Wine Filling Production Line are the manufacturer specializing in wine production packaging line
Description Name Parameters
Model GFGFP-12 GFGFP-18 GFGFP-24 GFGFP-36
No. of filling heads 12 18 twenty four 36
Production capacity per hour 2000~2500bmp 3000~4000bph 5000~6000bph 8000~10000bph
Applicable bottle height 160~360mm,could be customized
Filling accuracy ±1.5 mm
Applicable bottleneck diameter F50-F100,could be customized
Overall dimension(LWH) 120012002200mm 150015002200mm 180018002200mm 2500×2350×2200mm
Capability(b/h) 3000 4500 6000 10000
Weight 700Kg 900KG 1500KG 2000kg
Power 1.12 1.12 1.85 3

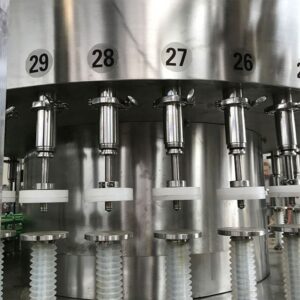

Filling nozzle: Its quantity can be customized according to the customer’s output. Conventional models are: 12/18/24/36. It adopts touch switch design, no bottle no filling, not dripping
Bottle feeding dial: Customized according to customer’s bottle size, do not pour the bottle, do not destroy the bottle
Negative pressure blower: Through this blower, the internal pressure of the filling machine is reduced, so that the filling machine can reduce the generation of foam and improve the filling accuracy when filling
Bottle feeding auger: It is also customized according to the customer’s bottle type. Through this device, the bottles are transported to the filling machine in an orderly manner
Control System: The control system is composed of PLC and other electrical components. It is an important part of the machine with well-known brands and reliable quality. It can provide customers with a 2-year free warranty, and can also choose specific brands of electrical components according to customer needs.
Control panel: The buttons of the control panels are connected to the control system to control the machine and conveyor line switches, as well as the operating speed and height

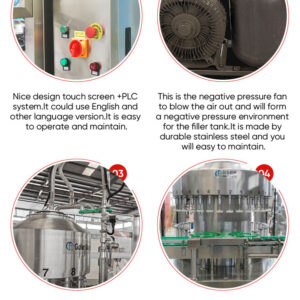

Nice design touch screen +PLC system. It could use English and other language version. It is easy to operate and maintain .
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Molding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
This is the filling hose to let the liquid fall into the filler tanker. It is made by food grade stainless steel. The whole machine is made by stainless steel and it is anti-rust and easy to clean. For this filling machine can also be connected with other machines to form a production line. Filling valve precision structure, less sealing parts, reliable and durable. And the structure is simple, disassembly, convenient for cleaning. The parts that contact with the filling liquid are made of high quality stainless steel to ensure that the filling liquid is not contaminated and meets the food hygiene standards.
