Fully Automatic Sachet Water Filling and Sealing Machine

Fully Automatic Sachet Water Filling and Sealing Machine

---

Introduction:

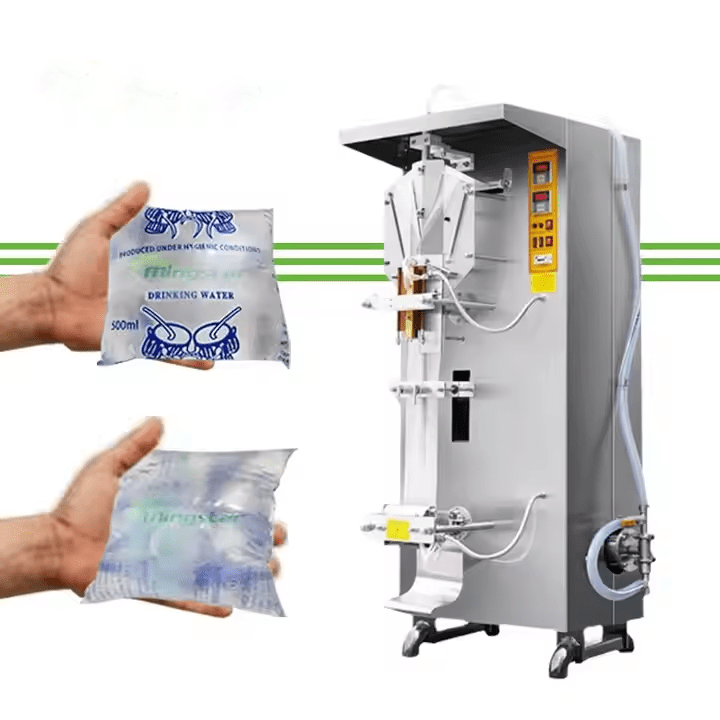

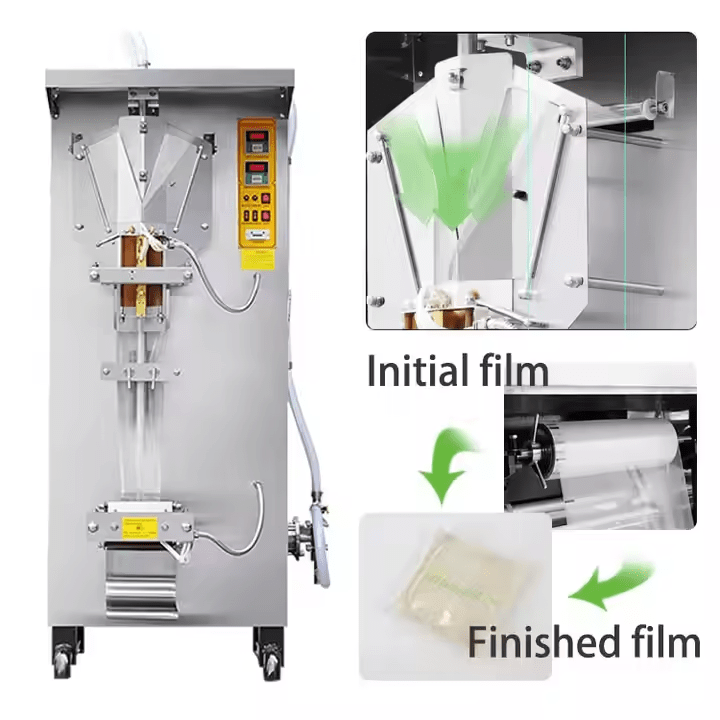

This fully automatic sachet water filling and sealing machine is designed for efficient, hygienic, and consistent production of small liquid sachets. Utilizing vertical form-fill-seal technology, it automates the entire process from film unwinding to sachet forming, filling, sealing, and cutting. With adjustable filling volumes and output speeds ranging from 1,500 to 2,300 sachets per hour, this machine is well-suited for both start-up businesses and medium-scale liquid packaging operations.

Its stainless-steel construction ensures durability and meets hygiene standards required for food and beverage production. The machine supports a range of film widths and sachet dimensions, offering flexibility in packaging formats. Optional features such as UV sterilization and date coding can be added to meet specific regulatory or branding needs.

---

Specifications:

Filling Volume: 50 – 550 ml
Production Speed: 1,500 – 2,300 sachets/hour
Filling Accuracy: ±0.5 – 1%
Film Width: 100 – 300 mm
Bag Width: 40 – 150 mm
Bag Length: 50 – 150 mm
Power Supply: 220 – 380 V (single-phase or three-phase)
Power Consumption: 1.6 – 3.4 kW

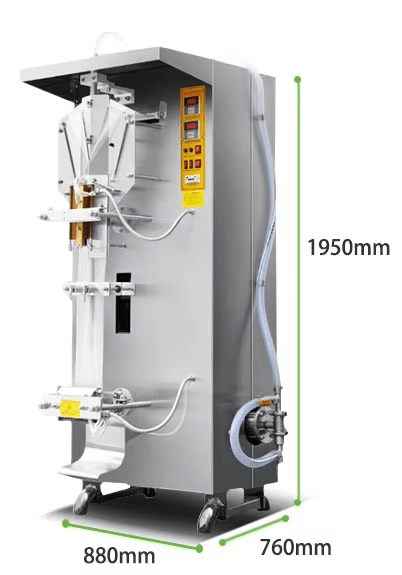

Machine Dimensions (L×W×H): Approximately 880 × 760 × 1,800 mm
Gross Weight: 275 – 380 kg
Frame & Contact Material: Stainless steel
Sealing Method: Vertical and horizontal heat sealing
Automation Level: Fully automatic
Optional Features: UV sterilization, date coder
Warranty: 1 year

---

Key Features:

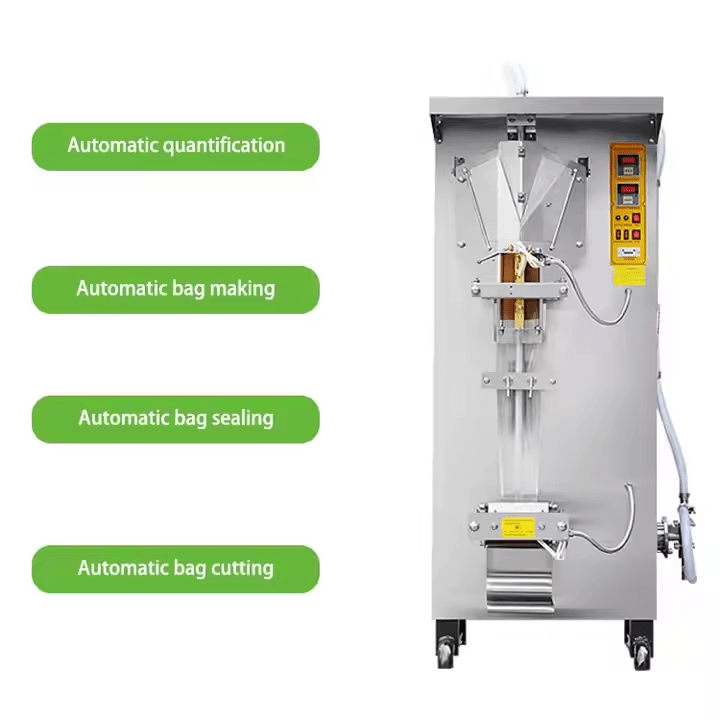

Fully Automated Operation: Handles film feeding, forming, filling, sealing, and cutting in one process.

Adjustable Output: Supports different sachet sizes and filling volumes.

High Production Capacity: Produces up to 2,300 sachets per hour.

Precision Filling System: Ensures accurate filling with minimal waste.

Compact Design: Space-efficient structure for small to medium facilities.

Hygienic Stainless Steel Build: Suitable for food-grade liquid packaging.

Optional Add-ons: UV sterilization and date coding for improved safety and branding.

---

Applications:

Bottled Water Industry: Sachet packaging for drinking water.
Beverage Production: Juice, iced tea, and flavored liquids.
Dairy Products: Milk and soy-based drinks (compatible films required).
Sanitizer Packaging: Liquid disinfectants and hygiene products.
Small & Medium Enterprises: Ideal for commercial sachet production businesses.
