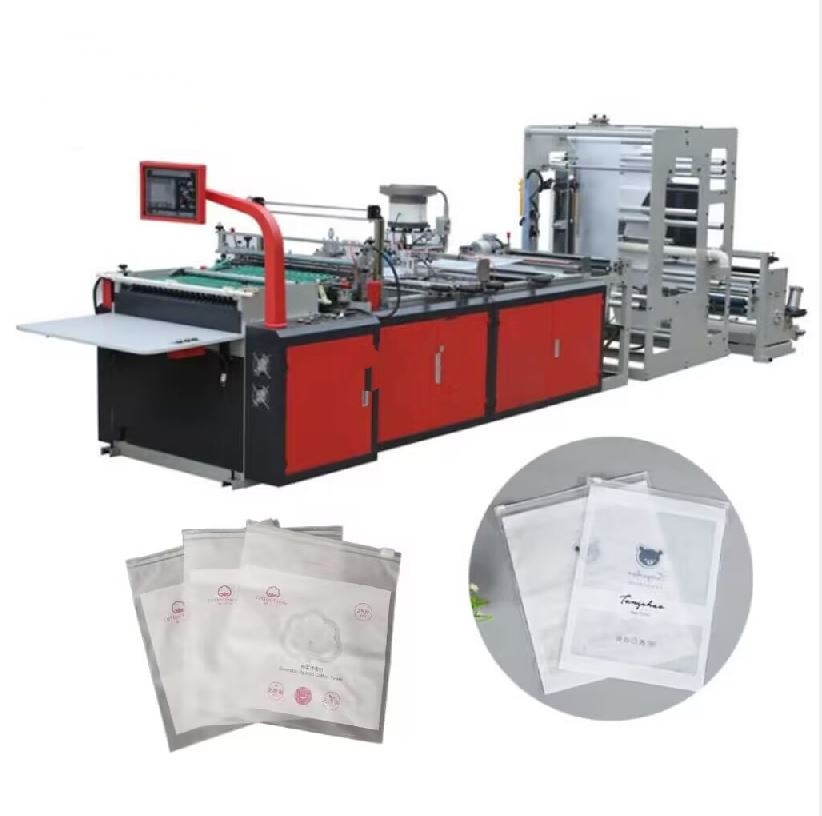

Fully Automatic Ziplock Bag Making Machine
Introduction
This fully automatic ziplock bag making machine is engineered for efficient production of PE and PP polythene bags with zip closures. Utilizing side-sealing technology and precision control, it produces bags in a wide range of sizes at speeds of up to 160 pieces per minute. The machine is designed to accommodate jumbo roll inputs, supporting widths up to 1400 mm and diameters up to 600 mm, allowing for long, uninterrupted production cycles.
Equipped with industrial-grade components including a durable motor, pressure vessel, precision gears, bearings, and cutting system, the machine ensures reliable, high-volume operation. The user interface is intuitive and offers fine control over bag length, width, sealing strength, and output speed. Quality assurance is supported through in-line video inspection and certified testing reports. With a robust frame and modular build, this machine suits high-demand packaging environments requiring consistent ziplock bag output.
Specifications
Model: OR-HX800
Power Supply: 220 V / 380 V, 50 Hz
Bag Width: 50 β 700 mm
Bag Length: 50 β 700 mm
Maximum Speed: Up to 160 pcs/min
Film Thickness: 0.012 β 0.06 mm
Maximum Unwind Roll Diameter: 600 mm
Machine Dimensions (LΓWΓH): 8500 Γ 1300 Γ 1800 mm
Gross Weight: 1880 kg
Total Power Consumption: 9 kW
Degree of Automation: Fully automatic
Core Components: Motor, pressure vessel, gears, bearings, cutter
Quality Assurance: Machinery test report and video inspection
Warranty: 1 year
Key Features
High-Speed Production: Produces up to 160 ziplock bags per minute for maximum efficiency.
Wide Size Flexibility: Supports bag sizes from 50 mm to 700 mm in width and length.
PE & PP Compatibility: Designed for polythene and polypropylene materials.
Large Roll Capacity: Supports unwind rolls up to 600 mm diameter for continuous operation.
Durable Industrial Build: Heavy-duty structure ensures long-term stable performance.
Precision Sealing & Cutting: Ensures clean edges and strong zip closures.
Digital Monitoring System: Includes video inspection and performance tracking reports.
Easy Maintenance: Modular design allows quick access and replacement of parts.
Applications
Food Packaging: Ziplock bags for snacks, dried foods, and storage.
Medical Industry: Sterile packaging for instruments and consumables.
Electronics & Hardware: Safe packaging for small components and parts.
Retail & Apparel: Packaging for clothing, accessories, and retail goods.
Industrial Use: Secure packaging for manufacturing and assembly items.
