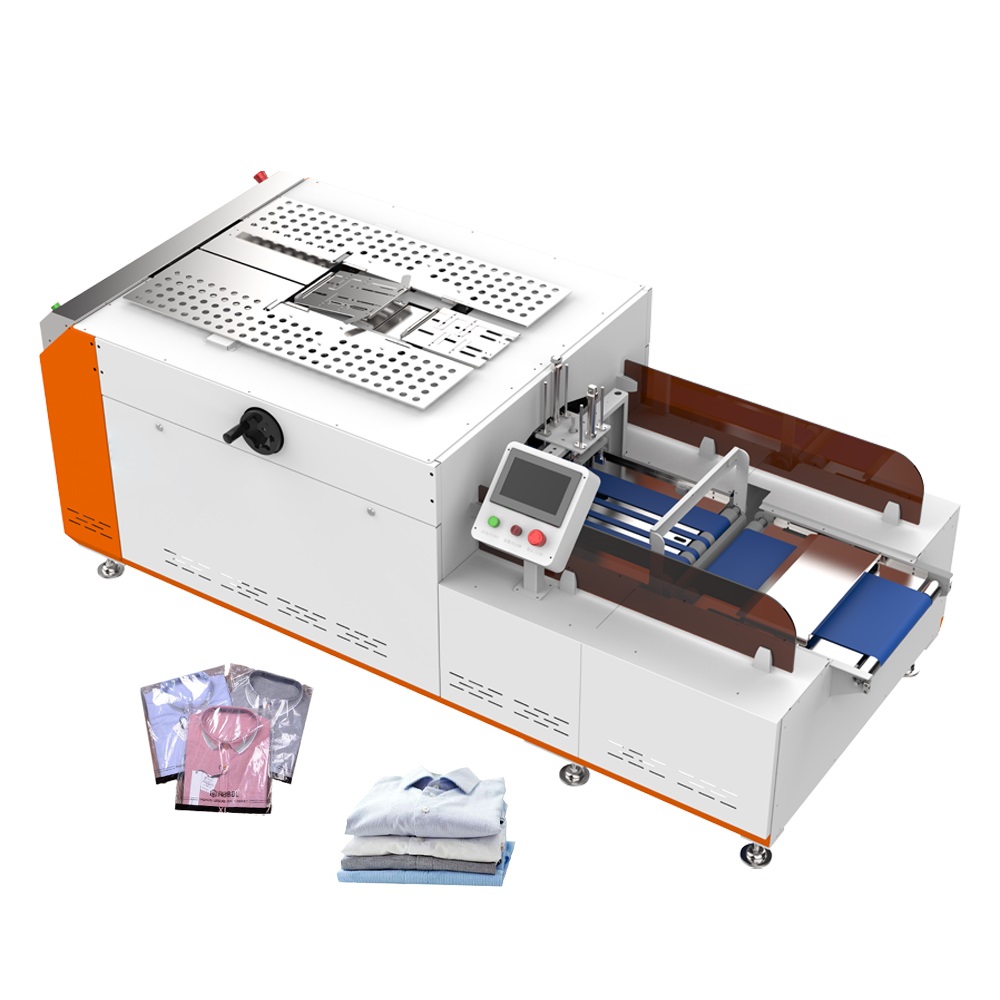

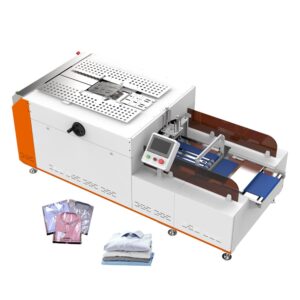

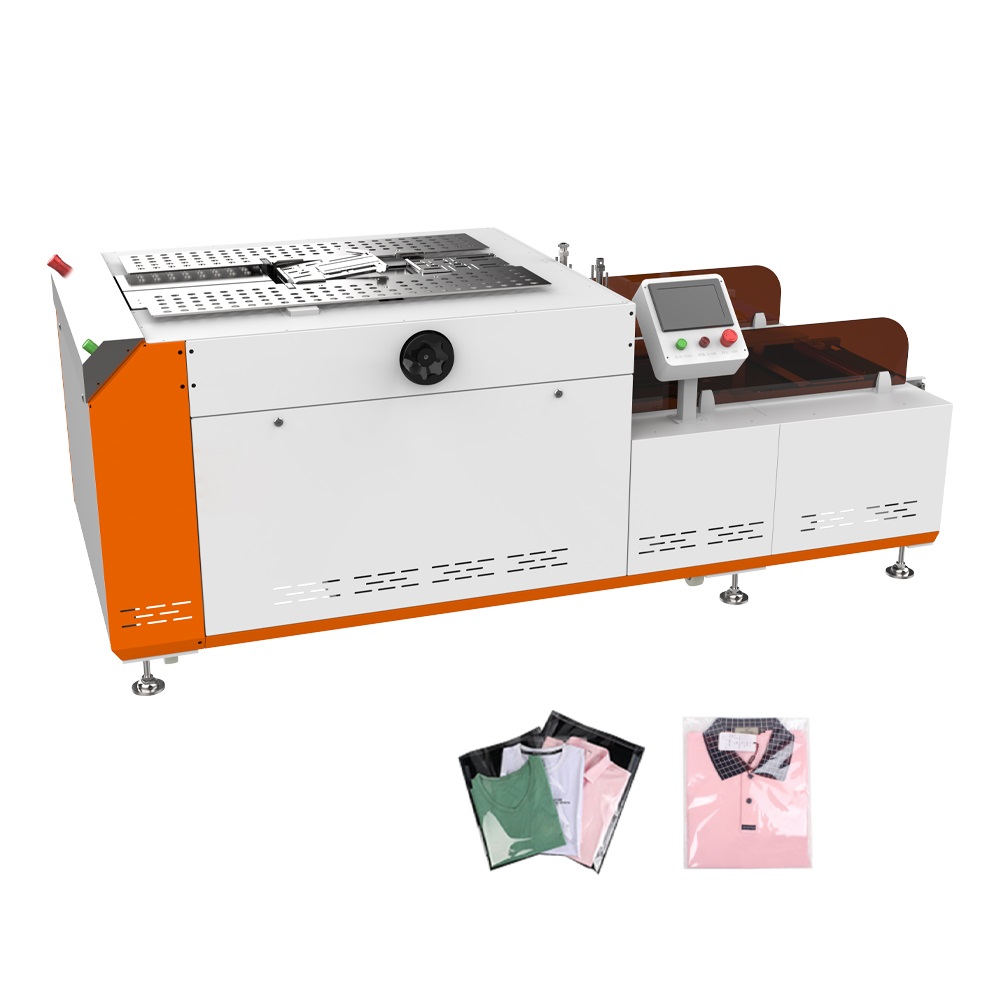

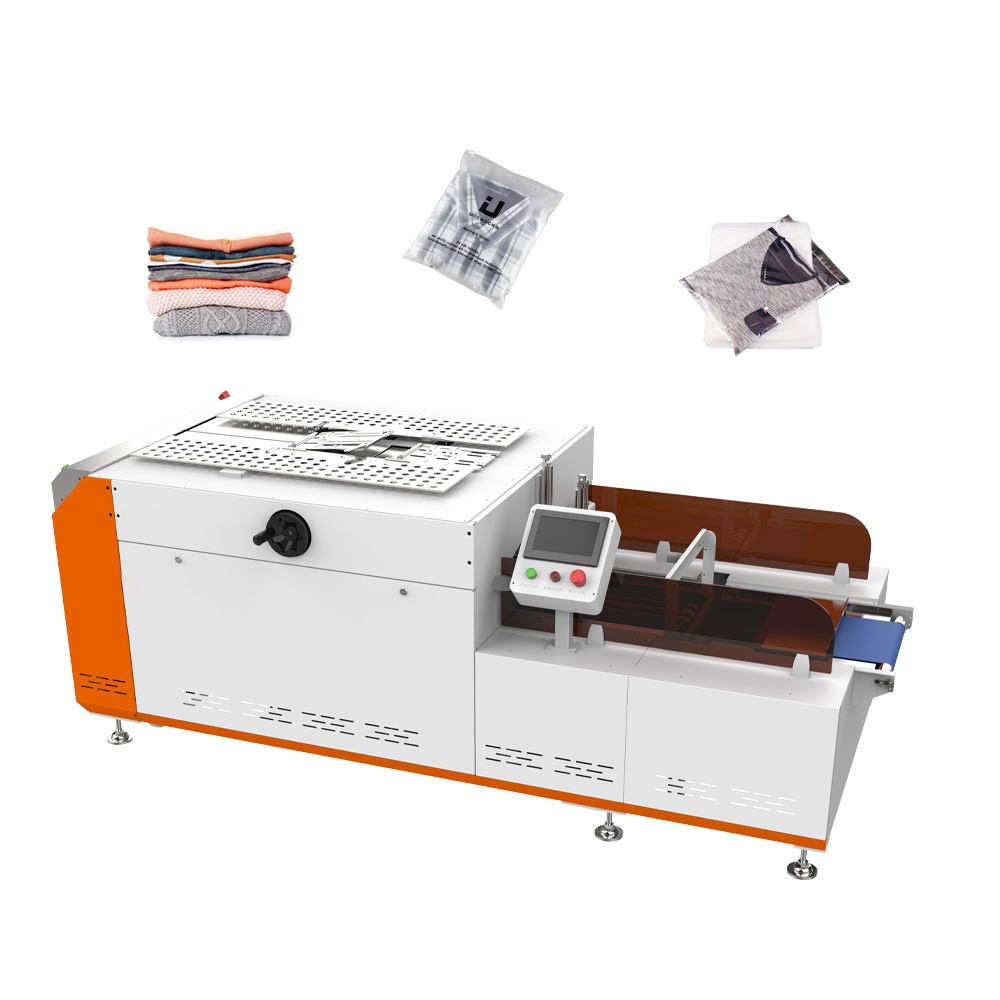

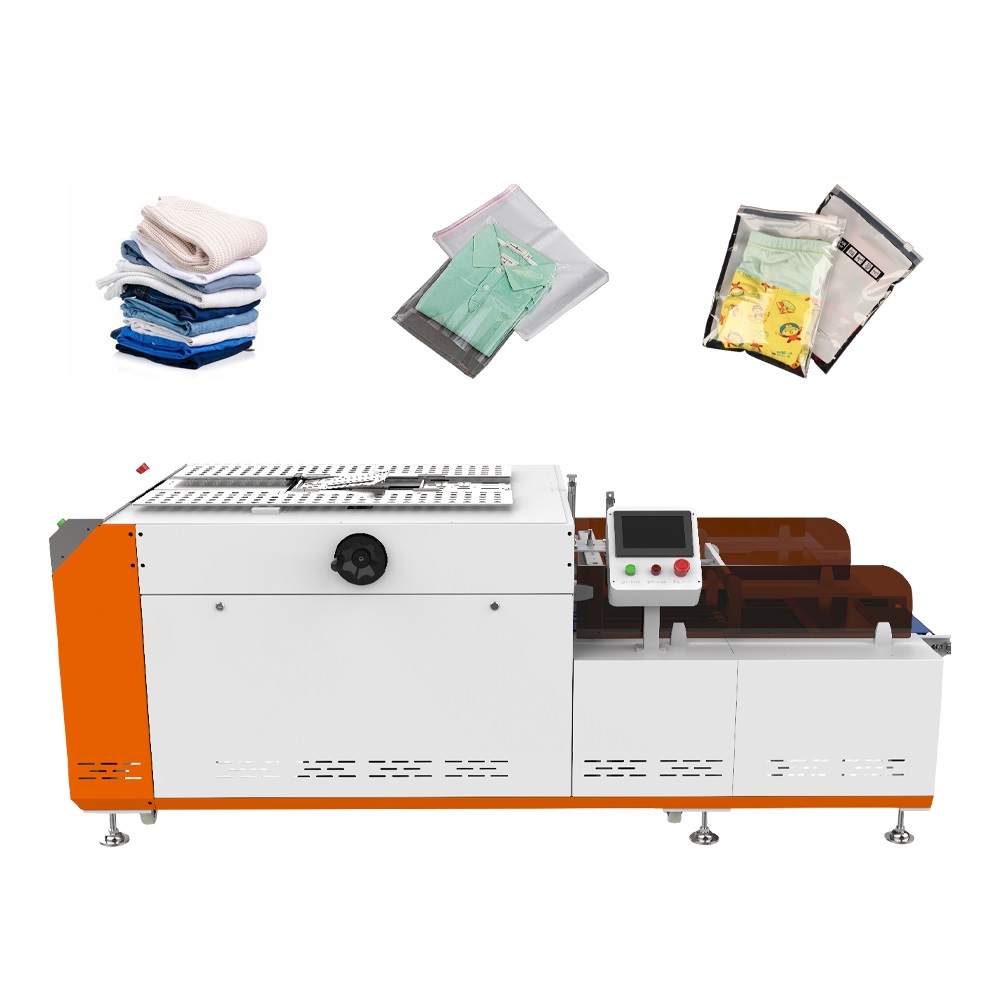

Doyan Automatic Folding and Packing Machine (FC-M152A)
The Doyan FC-M152A is a high-speed, intelligent automation solution designed to streamline the folding and packaging of textile apparel. By integrating material pulling, multi-stage folding, and real-time custom bag manufacturing into a single workflow, it significantly reduces manual labor while ensuring consistent, professional-grade presentation for high-volume production environments.
Key Features
-
Integrated Automation: Combines automatic material pulling, left-right rolling, longitudinal folding, pre-pressing, and bag sealing into one continuous process.
-
Customizable Bagging: Features real-time bag making that adjusts to the specific dimensions of each product, supporting flat and self-sealing bags.
-
Intelligent Controls: Equipped with a touch-interface and PLC system capable of storing up to 40 (or up to 99 in select models) distinct folding parameter sets.
-
Advanced Film Handling: Includes a pre-stretch film frame system (up to 250%) with automatic feeding and frequency control.
-
POD Ready: Supports intelligent identification via an integrated CCD scanning system for Print-on-Demand (POD) applications.
-
Labor Efficiency: Dramatically increases throughput while minimizing product loss and human intervention.
Specifications
| Attribute | Value |
| Model Number | FC-M152A |
| Packaging Capacity | 400 – 600 PCS/H |
| Folding Capabilities | Left/Right, Double Longitudinal (1–3 times) |
| Control System | Touch-interface with PLC |
| Packing Material | LLDPE Stretch Film (17–35um thickness) |
| Power | 1.5 kW |
| Voltage | 220V AC, 50Hz |
| Dimensions (L×W×H) | 2500 × 800 × 1800 mm (varies by model) |
| Weight | ~1200 kg (varies by model) |
| Warranty | 1 Year (12 Months) |
Industry Applications
-
Clothing Manufacturing: Ideal for high-speed folding and packaging of T-shirts, shirts, and similar apparel.
-
E-commerce Fulfillment: Enables rapid, consistent packaging for direct-to-consumer shipping operations.
-
Logistics & Warehousing: Streamlines the final preparation stage for organized storage and distribution.
-
Textile Processing: Handles various fabric-based products requiring uniform presentation.
Why Choose This Product
The Doyan FC-M152A is designed for businesses looking to scale their production without proportionally increasing labor costs. Its ability to intelligently adjust to different garment sizes in real-time makes it an essential asset for multi-variety production lines where agility and presentation are equally critical.
