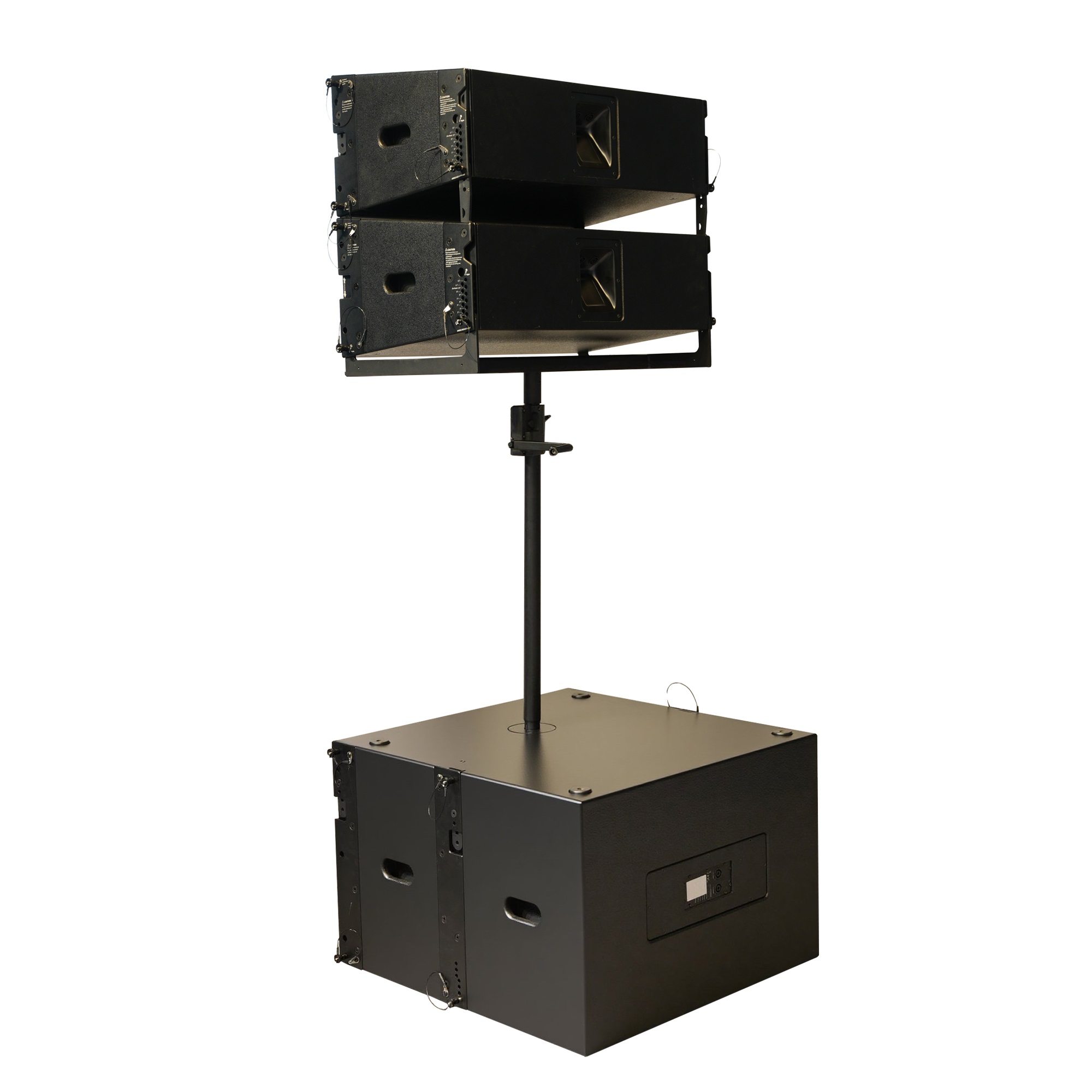

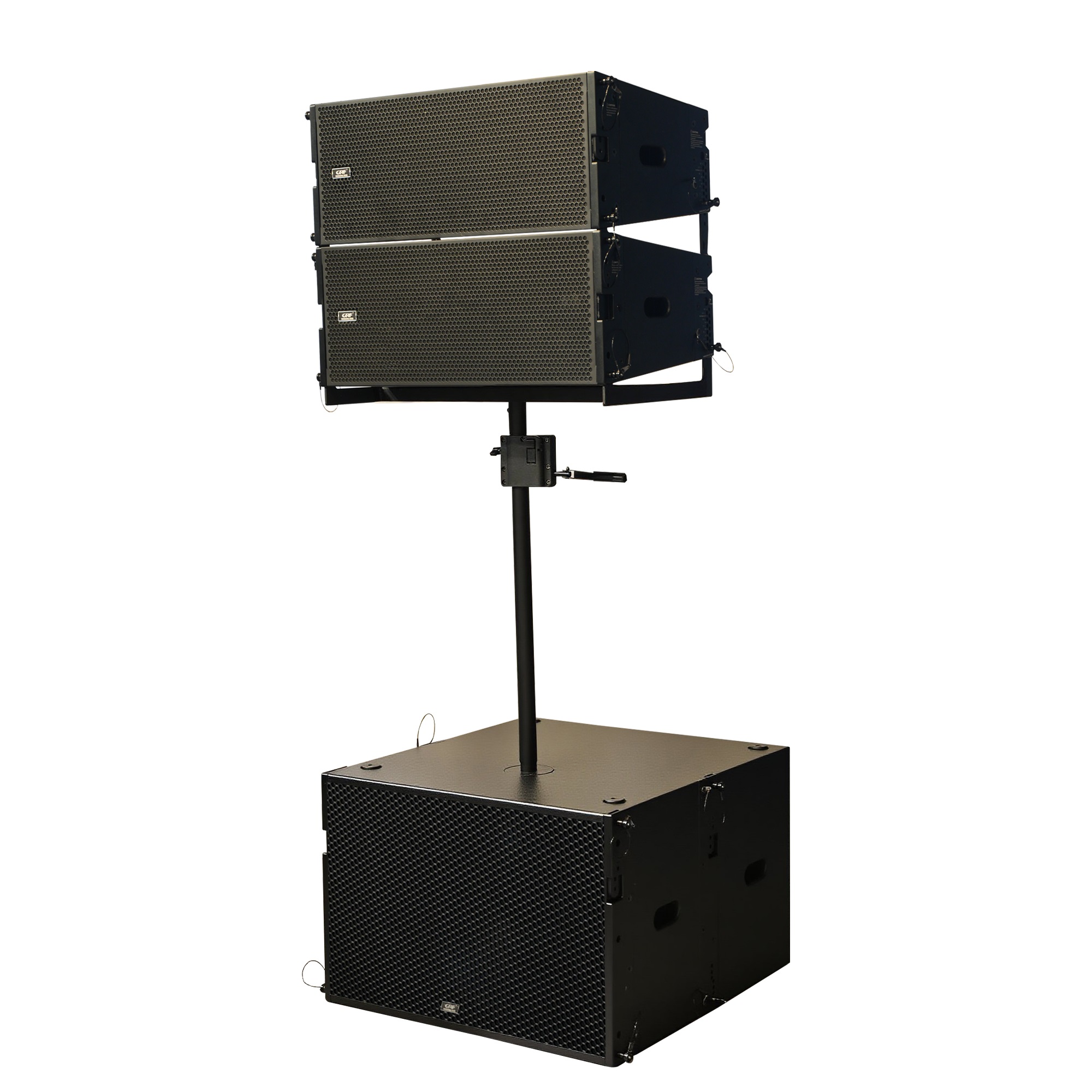

Two-Way Line Array Speaker
This two-way line array speaker combines robust audio performance with customizable design, making it ideal for sound reinforcement in music venues, events, and studio setups. The cabinet is constructed from high-quality wood, providing both acoustic clarity and long-term durability. It incorporates twin 10-inch low-frequency drivers and dual tweeters for precise, full-spectrum sound. Rated for powerful output, it supports rigorous usage while maintaining sound fidelity. Available for customization, the speaker supports logo plates, tailored graphics, and packaging options. Its impedance and power ratings cater to both entry-level and high-output needs, while a standard warranty ensures reliability.
Key Features
-
Dual-10″ Full-Range Drivers: Produces rich bass and vocals with clarity and precision.
-
High Power Handling: Offers AES-rated power up to 800 W, with peak capability reaching up to 3,200 W.
-
Sturdy Wood Enclosure: Enhances sound projection while providing rugged, road-ready durability.
-
Balanced Sound Reproduction: Covers low to high frequencies (63 Hz–18 kHz), ensuring versatile performance.
-
Custom Branding Support: Logo plates and graphic customization allow tailored aesthetics.
-
Extended Warranty: Two-year coverage adds peace of mind for professional users.
Specifications
| Specification | Detail |
| Drivers | 2 × 10″ low-frequency woofers; 2 × tweeters |
| Frequency Response | Approx. 63 Hz–18 kHz |
| Power Ratings | 500 W (AES) / 2,000 W (Peak) or 800 W (AES) / 3,200 W (Peak) |
| Impedance | 8 Ω |
| Sensitivity | Approx. 98 dB per 1 W / 1 m |
| Cabinet Material | Wood (durable enclosure) |
| Dimensions (approx.) | 297 × 782 × 420 mm (tweeter module); 500 × 782 × 760 mm (woofer module) |
| Weight | Standard unit ~30–40 kg depending on configuration |
| Warranty | 2 years |
| Customization Options | Nameplates, graphics, and packaging customization (MOQ applies) |
Applications
-
Live Events & Music Venues: Provides powerful, clean audio for music performances and presentations.
-
Touring Rigs & Mobile Production: Durable construction and high output make them ideal for mobile stages.
-
Places of Worship & Community Halls: Delivers clear, balanced sound for sermons, ceremonies, and assemblies.
-
Theater & Studio Installations: Enhances acoustic environments for broadcasts, performances, and recordings.
