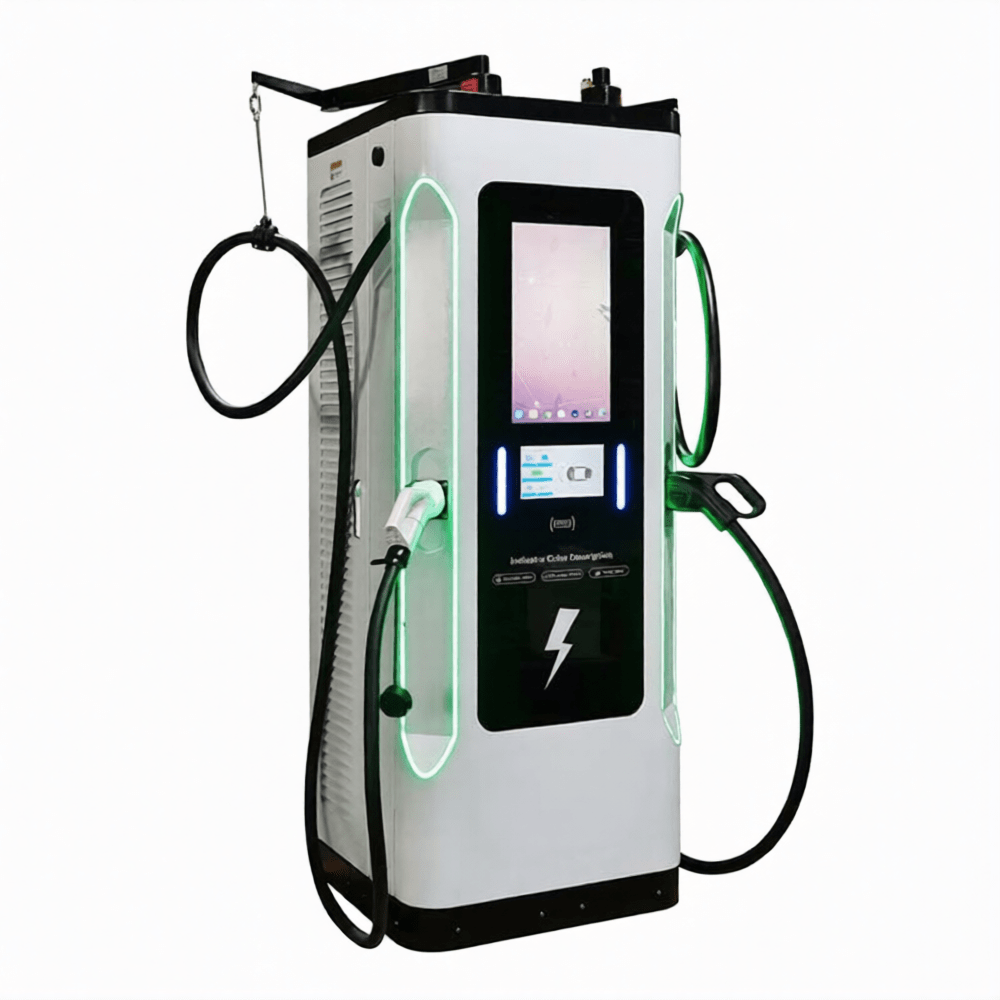

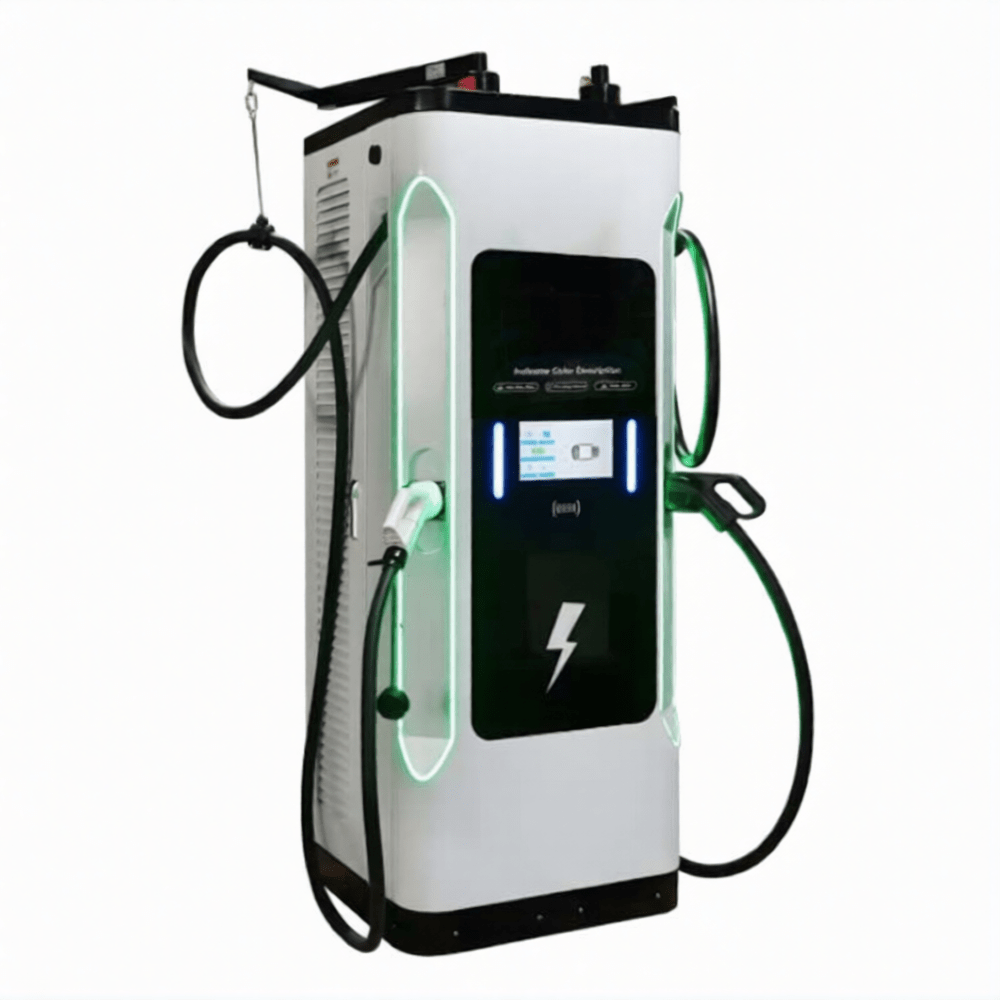

Commercial DC EV Charging Station with Dual Output and Cable Management

Product Overview
The Commercial DC EV Charging Station with Dual Output and Cable Management is a high-performance charging solution designed for modern electric vehicle infrastructure. Featuring dual DC charging connectors and intelligent power distribution, the system allows simultaneous charging of two vehicles while optimizing output efficiency. Built for commercial environments, this charger combines fast charging capability with smart connectivity, user-friendly operation, and POS payment functionality. Its integrated cable management system ensures a clean and organized setup, improving safety and usability in high-traffic locations.

Introduction
With the rapid growth of electric vehicles, businesses require reliable, fast, and scalable charging solutions. This Commercial DC EV Charging Station is engineered to deliver efficient charging with advanced control systems and flexible power management. Equipped with dual CCS2 connectors, the system supports simultaneous charging while dynamically distributing power. When a single vehicle is connected, it delivers maximum output, and when two vehicles are connected, it balances the load efficiently. The unit features a 7-inch touchscreen interface, multiple communication protocols, and an RFID-based payment system, making it ideal for both public and private charging applications.

Specifications

• Product Type: DC Fast EV Charging Station
• Charging Type: DC Fast Charging
• Output Connectors: 2 DC Charging Guns (CCS2)
• Maintenance: Low Maintenance
• Protection: Advanced Electrical Safety Systems
• Cable Management: Integrated Cable Management System
• Input Voltage: Three Phase 380V ±20%
• Communication Protocol: OCPP 1.6 (Ethernet)
• Communication Interface: CAN and RS485
• Display Interface: 7-Inch LCD Touch Screen
• Payment System: RFID IC Card Reader
• Cooling Method: Intelligent Air Cooling
• Operating Temperature: -40°C to +65°C
• Installation: Floor Mounted

Key Features

• Dual CCS2 charging connectors for simultaneous charging
• Intelligent power distribution (80 kW single / 40 kW dual output)
• OCPP 1.6 support for smart network integration
• RFID card payment system for easy monetization
• 7-inch touchscreen interface for intuitive operation
• Intelligent air cooling system for stable performance
• Wide operating temperature range for outdoor environments
• Integrated cable management for improved safety and organization
• Advanced communication interfaces for monitoring and control
• Fast charging capability reduces vehicle downtime

Applications

• Commercial EV charging stations
• Shopping centers and retail parking areas
• Office parks and business complexes
• Fleet charging depots
• Hotels and hospitality venues
• Residential estates and developments
• Public transport hubs
