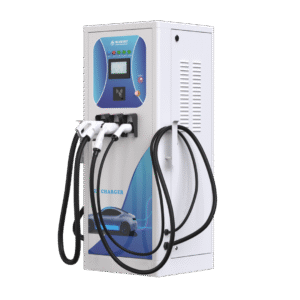

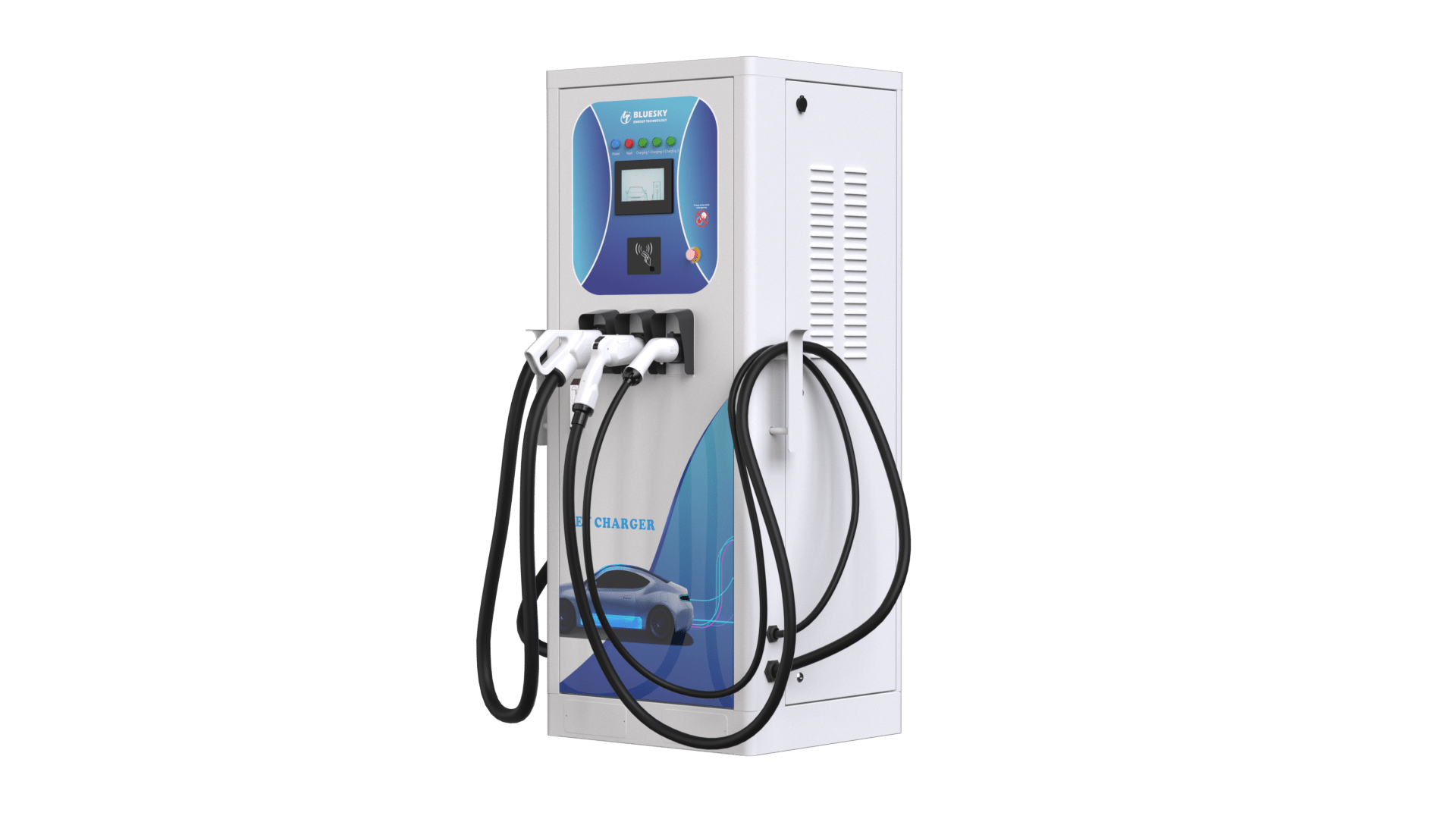

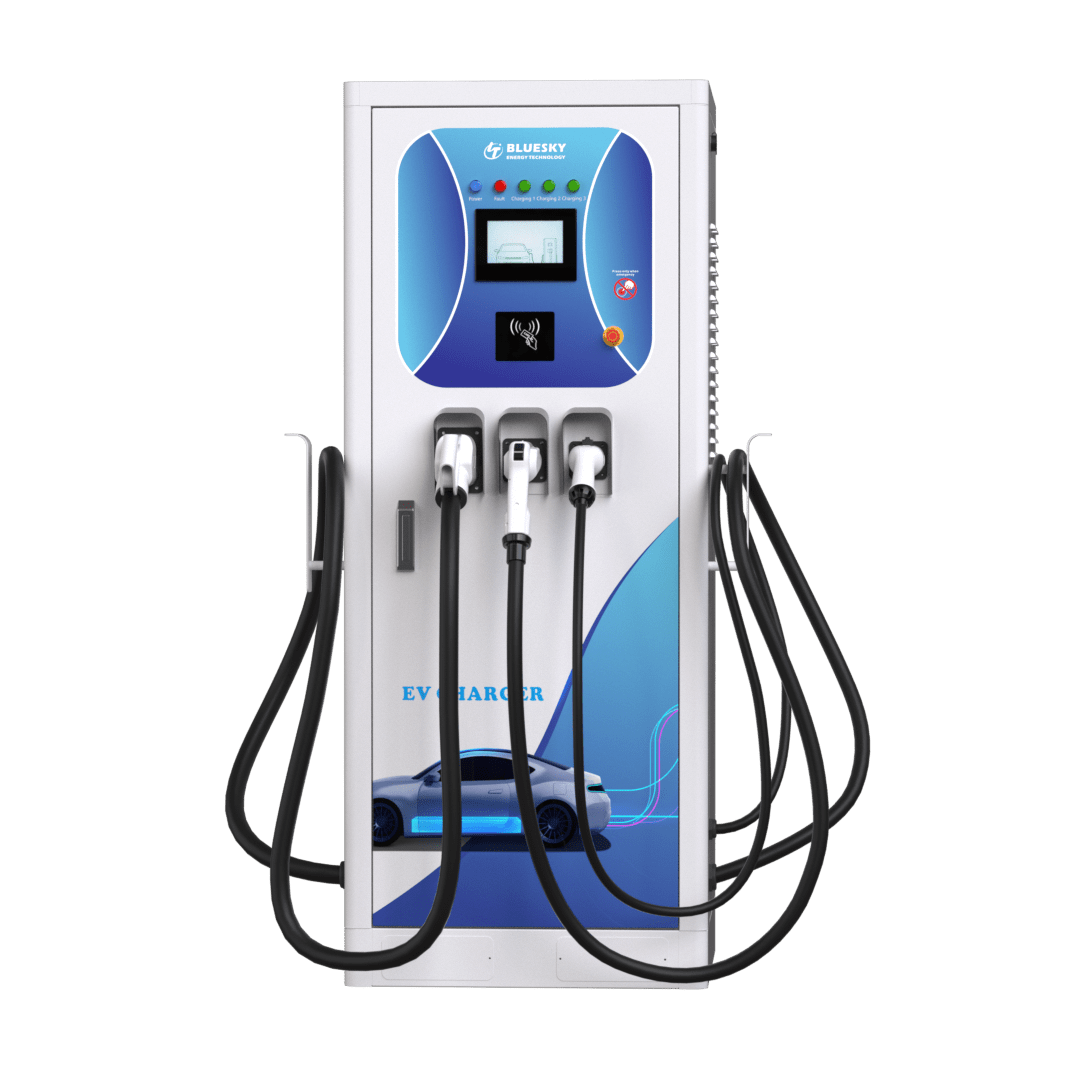

Commercial AC/DC Integrated EV Charging Station
Introduction
The Commercial AC/DC Integrated EV Charging Station is a high-performance charging solution designed to support modern electric vehicle infrastructure. Featuring dual DC charging outputs and intelligent power distribution, this system enables efficient and flexible charging for multiple vehicles. With support for multiple connector standards and smart charging control and POS payment, the unit is ideal for high-traffic commercial environments. Its integrated design ensures space efficiency while delivering reliable, high-speed charging performance.
As demand for electric vehicle charging continues to grow, businesses require flexible and efficient solutions that can accommodate different vehicle types and usage scenarios. The system is engineered with advanced charging technology and intelligent control to ensure stable operation in demanding environments.
Specifications
| Specification | Details |
|---|---|
| Product Type | AC/DC Integrated EV Charging Station |
| Input Voltage | Three Phase 380V ±20% |
| Charging Type | DC Fast Charging |
| Output Connectors | 2 DC Charging Guns |

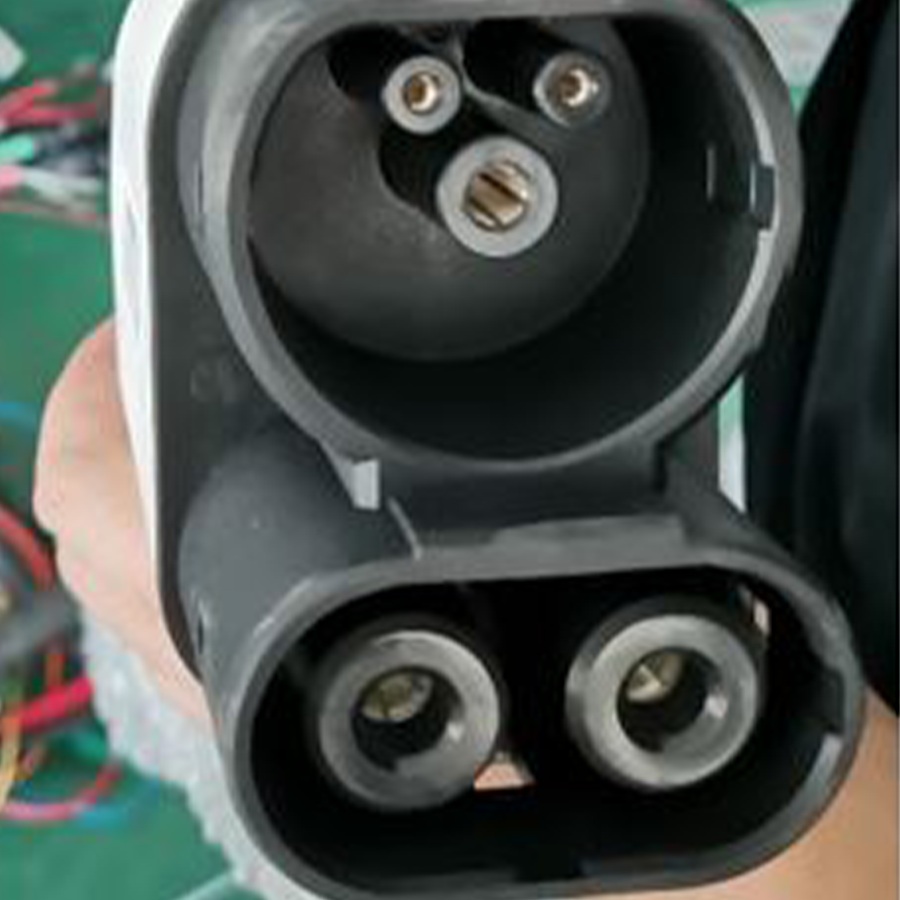

| Connector Options | CCS1 / CCS2 / CHAdeMO |
| Output Current (CCS) | 0–250A (150VDC – 1000VDC) |
| Output Current (CHAdeMO) | 0–125A (150VDC – 500VDC) |
| Power Output (Single) | Up to 60 kW |
| Power Output (Dual) | 30 kW per output (simultaneous charging) |
| Display Interface | 7-inch LCD touch screen |
| Communication Interface | PLC and RS485 |
| Payment System | RFID IC card reader |
| Cooling Method | Intelligent air cooling |
| Operating Temperature | -40°C to +65°C |
| Installation | Floor mounted |
| Protection | Advanced electrical safety systems |
| Maintenance | Low maintenance |
Key Features
Dual Charging CapabilityAllows simultaneous charging of two vehicles with optimized power distribution.
Multi-Standard Connector SupportCompatible with CCS1, CCS2, and CHAdeMO charging standards.
High-Speed DC ChargingReduces charging time and improves vehicle turnaround efficiency.
Smart Touch Interface7-inch LCD screen for easy operation and system control.
Integrated Payment SystemRFID card support enables secure commercial charging access.
Wide Temperature OperationEnsures stable performance in extreme environmental conditions.
Intelligent Cooling SystemMaintains safe operating temperature during continuous use.
Commercial-Grade DurabilityBuilt for long-term use in high-traffic charging environments.
Applications
Commercial EV Charging StationsPublic charging infrastructure for urban and highway use.
Retail & Shopping CentresProvides convenient charging for customers during visits.
Office ComplexesSupports employee and business fleet charging needs.
Fleet DepotsEfficient charging for logistics and transport companies.
Hotels & HospitalityAdds EV charging services for guest convenience.
Public Transport HubsSupports taxis, buses, and high-usage electric vehicles.
Residential CommunitiesEnhances modern housing developments with EV facilities.
Conclusion
The Commercial AC/DC Integrated EV Charging Station delivers a powerful, flexible, and future-ready solution for modern electric vehicle infrastructure. With dual charging capability, intelligent power management, and multi-standard compatibility, it ensures efficient performance, reliable operation, and strong suitability for high-demand commercial environments.
| Models | 120KW, 160KW, 180KW |
|---|
