ZYMX3-3JK160 Copper Bar Processing Machine

Introduction

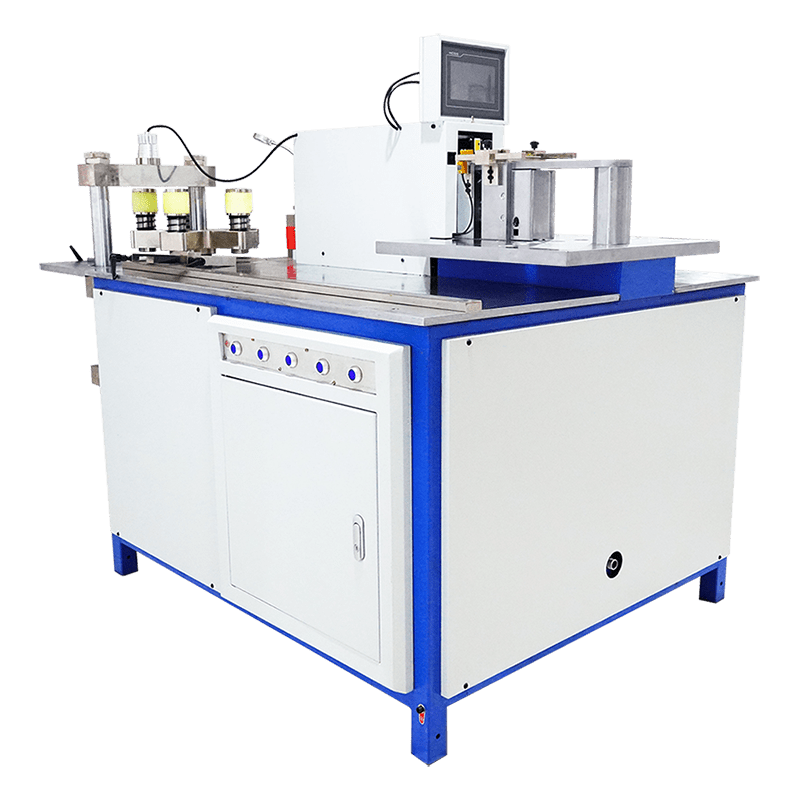

The ZYMX3-3JK160 High Productivity Copper Bar Processing Machine is a CNC-controlled busbar fabrication system designed for precise cutting, bending, and punching of copper bars. Built for industrial-grade performance, it is widely used in power distribution, manufacturing, and heavy industrial applications where accuracy and efficiency are critical.

With robust construction and advanced CNC automation, this machine ensures stable operation, high output, and consistent processing quality for electrical and metal fabrication industries.

---

Specifications

Specification	Details
Model	ZYMX3-3JK160
Machine Type	CNC Busbar Processing Machine
Nominal Pressure	400 KN
Cutting Size	160 × 12 mm
Bending Size	160 × 10 mm
Punching Range	4.3 – 25 mm
Max Thickness	160 mm
Max Width	12 mm
Voltage	380 V
Power	3 × 4 kW
Dimensions (L×W×H)	1620 × 1150 × 1210 mm
Machine Weight	1200 kg
Warranty	1 Year (core components included)

---

Key Features

• CNC-controlled precision operation for copper busbar processing
• Integrated cutting, bending, and punching functions
• High productivity for industrial-scale production
• Strong hydraulic and mechanical structure for stable performance
• Capable of processing multiple busbar sizes with accuracy
• Energy-efficient 3 × 4 kW power system
• User-friendly design for easy operation and maintenance
• Reduced downtime with reliable industrial components
• Suitable for continuous heavy-duty operation
• High precision output for electrical applications

---

Applications

Electrical Industry

• Busbar manufacturing for power distribution systems
• Electrical panel fabrication
• Substation equipment production

Industrial Manufacturing

• Metal fabrication workshops
• Electrical component assembly
• Custom copper processing tasks

Energy & Infrastructure

• Power plant electrical systems
• Mining equipment electrical setups
• Industrial automation systems

---

Product Advantages

• High-speed CNC automation improves productivity
• Accurate cutting, bending, and punching in one machine
• Strong and durable industrial construction
• Reduced manual labor and operational errors
• Energy-efficient performance for cost savings
• Suitable for diverse industrial environments

---

Product Description

The ZYMX3-3JK160 Copper Bar Processing Machine is engineered for precision and efficiency in busbar manufacturing. Its CNC-controlled system allows seamless integration of cutting, bending, and punching operations, reducing processing time and improving output consistency.

Designed for demanding industrial environments, it delivers stable performance, long service life, and high accuracy, making it a reliable solution for electrical and metal fabrication industries.

---

Construction Features

• Heavy-duty steel frame for vibration-free operation
• Hydraulic-assisted processing system
• Precision CNC control interface
• Industrial-grade punching and cutting modules
• Reinforced bending mechanism for copper bars

---

Performance Features

• High precision multi-process operation
• Stable continuous production capability
• Efficient energy usage with strong output
• Smooth and accurate forming results
• Long-term durability under heavy workloads

---

Conclusion

The ZYMX3-3JK160 Copper Bar Processing Machine is a powerful CNC busbar solution designed for industrial efficiency and precision. With integrated cutting, bending, and punching functions, it significantly improves productivity while ensuring reliable, high-quality output for electrical and manufacturing applications.
