Apparel Textile Machinery Single Needle Frame Quilting Machine

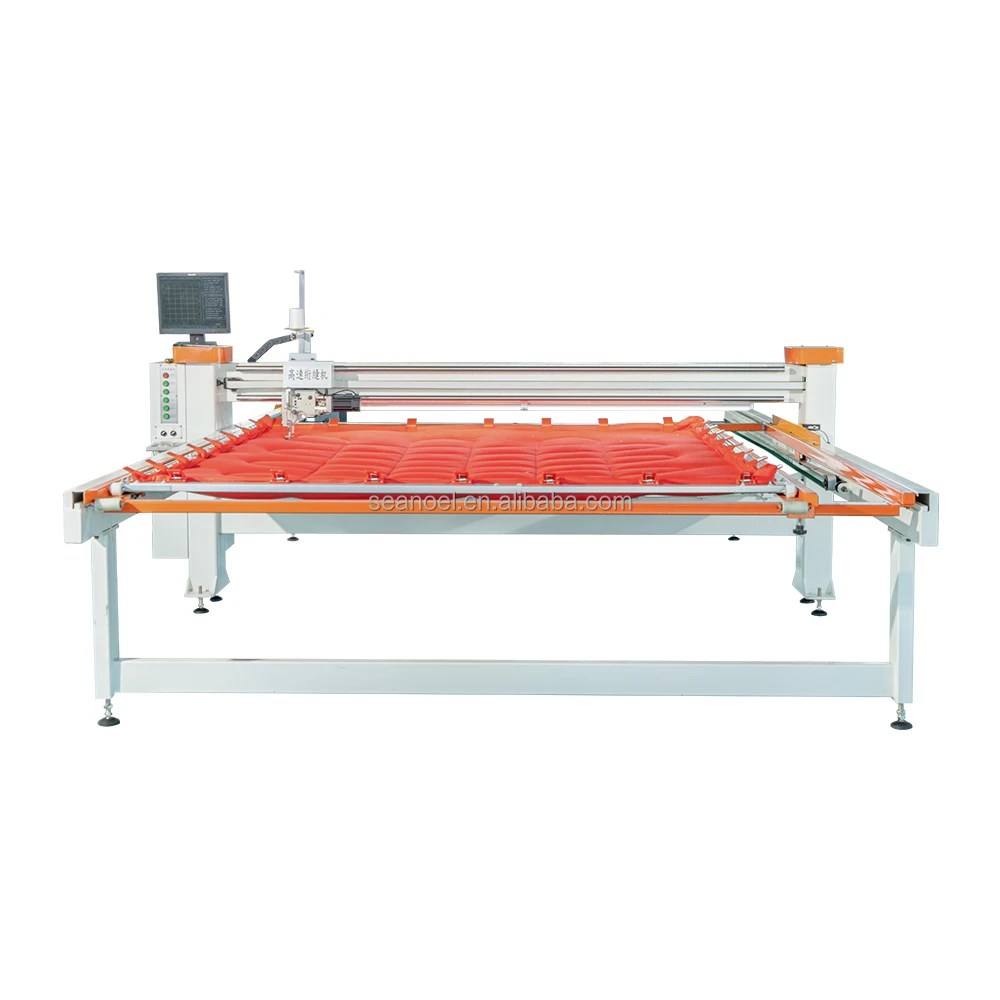

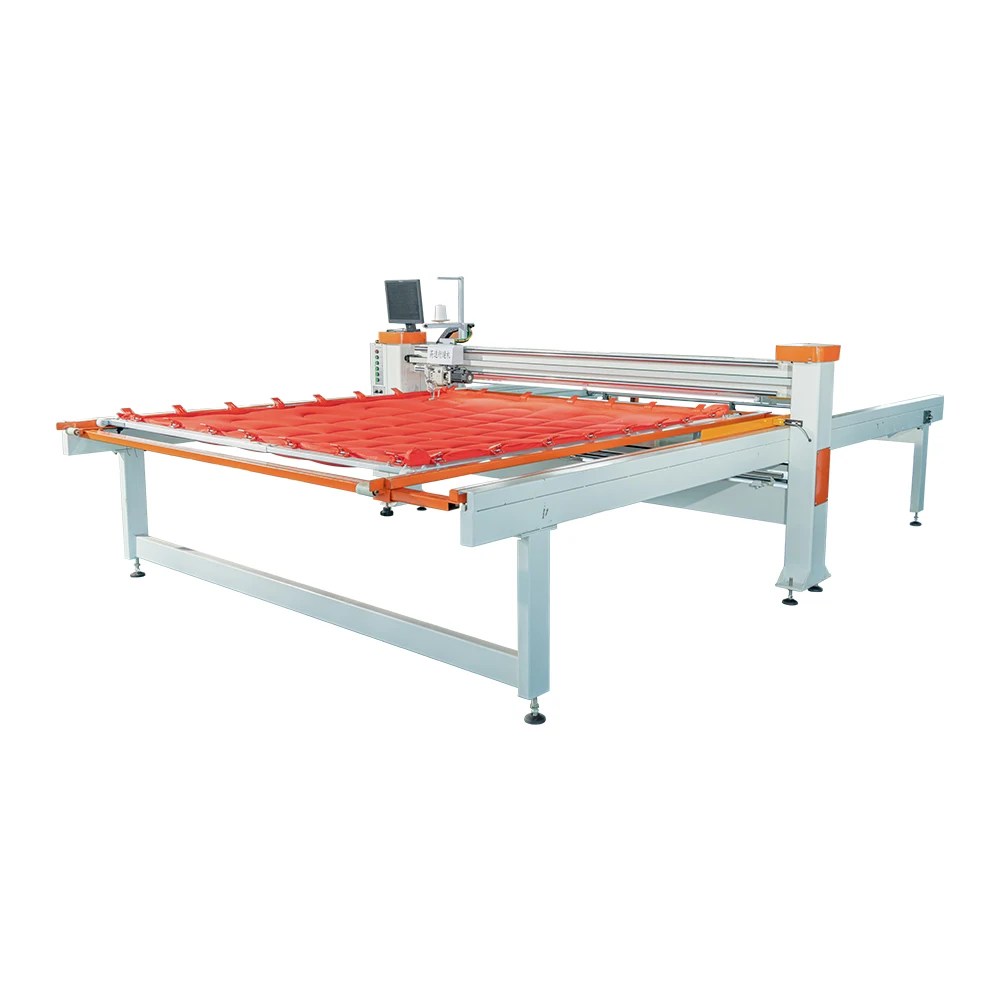

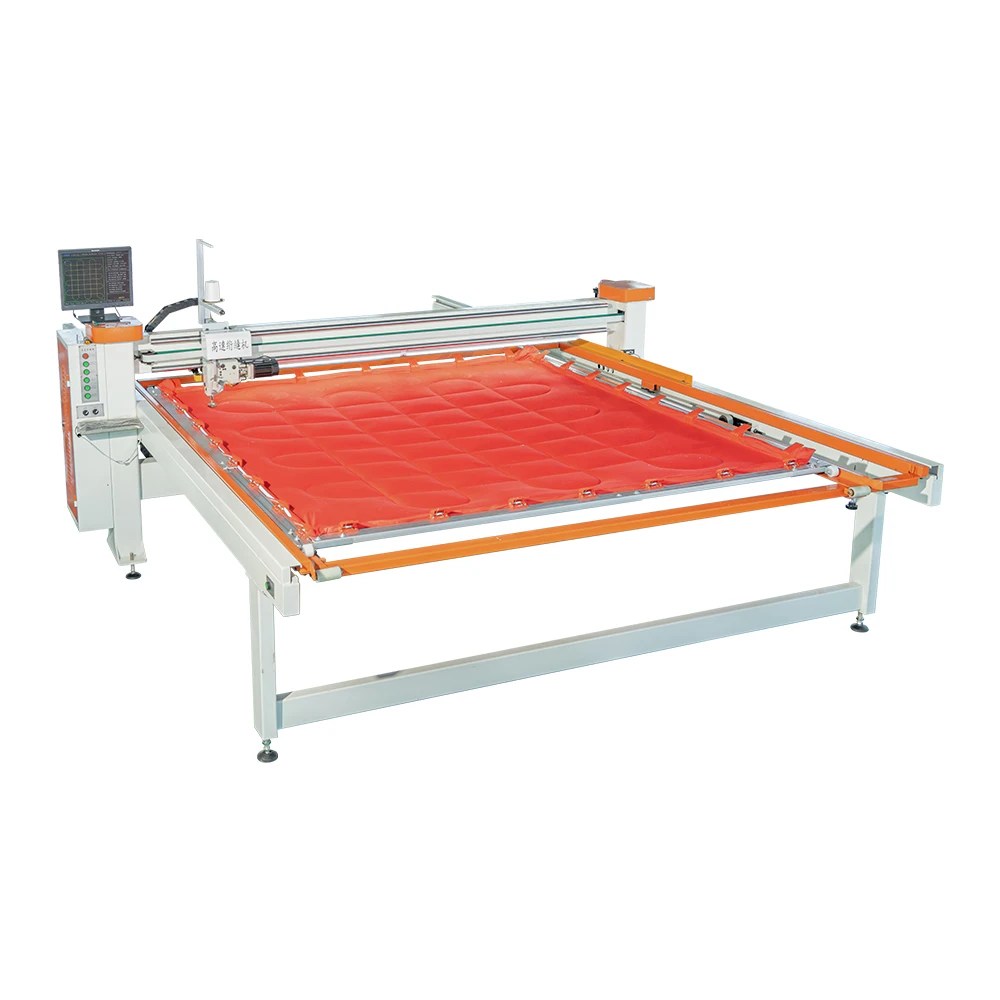

Computerized Single Needle Frame Quilting Machine

This computerized single needle frame quilting machine is an advanced piece of apparel and textile machinery designed for high-accuracy and high-speed quilting.

It features a unique mechanism that ensures the needle remains stable and precise, even when processing complex patterns like heart shapes, small curves, and acute angles, guaranteeing that the line marks stay in their original position.

The machine uses a large traveling schedule nose to enhance stability when sewing ultra-thick materials.

Optimized with precise spline, imported guide rails, and a steel core polyurethane with ambulacrum, it maintains a fast quilting speed.

Equipped with a big rotary shuttle, it can handle both single-line and double-line lock stitches, making it suitable for a wide range of quilting needs in bedding, apparel, and furniture industries.

Application Usage

This computerized single needle quilting machine is highly versatile and primarily used in industries requiring precise and high-quality stitching for various padded products.

Bedding Industry

Ideal for quilting quilts, blankets, duvets, comforters, and bedspreads.

Apparel Manufacturing

Used for quilted apparel components and specialized garments.

Home Textiles

Suitable for producing quilted fabrics for home decor items.

Mattress and Furniture Manufacturing

Applied in quilting mattress toppers, mattress borders, and upholstered furniture components.

Patterned Stitching

Capable of executing complex patterns, curves, and acute angles with high precision, making it suitable for decorative quilting.

Specifications

Attribute	Value
Model Number	2528 (other models like GR-168/2, BZ-GSD2030, FW1625 also exist)
Quilting Area	Dimensions vary by model (e.g., 2.8m x 2.8m, 3.1m x 3m, 3.4m x 3.3m, 3.9m x 3.8m)
Sewing Thickness	Up to 1200g/m (ultra-thick seam material)
Sewing Speed	Up to 2500 RPM (normal quilting above 2600r/m)
Stitch Type	Single-line style, double-line lock style
Stitch Length	2-7mm
Needle	SINGER MR5 18-22#
Power	220V AC 50HZ 1.5KW
Weight	600kg – 1000kg (varies by model)
Shuttle	Big rotary shuttle
Control System	Computerized, digital control
Patterns	Three hundreds patterns, complex graph (heart shape, small curve, acute angle)
Features	High accuracy, stable needle, big traveling schedule nose, optimized machine combination, precise spline, imported guide rail, steel core polyurethane with ambulacrum
After-sales Service	Online Technical Support
Warranty	One Year
Certification	CE
