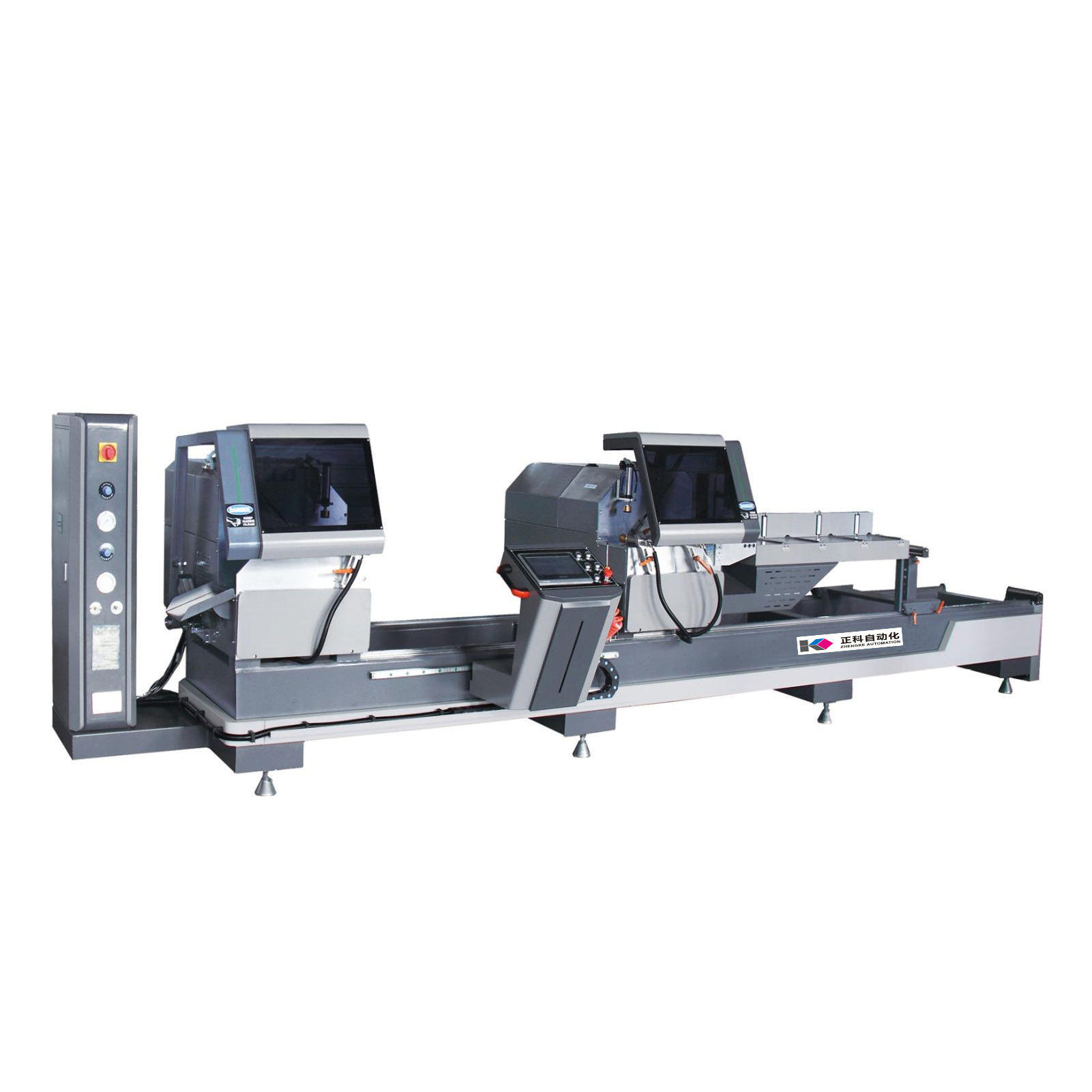

Double Head Digital Display Miter Cutting Saw Machine For Aluminum And UPVC Window And Door Making
Product Specialty Briefing
The product is a Double Head Digital Display Miter Cutting Machine. This machine is designed for efficient and precise cutting of aluminum and UPVC profiles using a double head miter saw mechanism.
Key Specifications
| Specification | Details |
|---|---|
| Type | Double Head Miter Cutting Machine |
| Material | Steel |
| Operation | Automatic |
| Power | 6 kW |
| Voltage | 380V |
| Cutting Capacity | 400-4200 mm length, 170×200 mm width and height |
| Cutting Angles | 45° / 90° |
| Saw Blade Specification | 550x30x4.4 mm, Z=120 |
| Motor Speed | 2800 RPM |
| Weight | Approximately 1600 kg |
| Dimensions | 6200x1600x1500 mm |
| Control | Electric with digital display |
Applications
- Aluminum and UPVC Window and Door Making: Ideal for cutting aluminum and UPVC profiles for window and door manufacturing.
- Customizable: Can be customized for different sizes and specifications.
Summary
This double head digital display miter cutting machine offers a powerful and efficient solution for cutting aluminum and UPVC profiles.
It is designed for automatic operation with a high-precision control system, making it suitable for use in various industries such as window and door manufacturing.
The machine is customizable in terms of size and specifications, providing flexibility for different projects.
Its durable construction and advanced control features ensure reliable performance.
Product Description
| Specification | Details |
|---|---|
| Saw blade specification | 550×3.8×4.4x30x120P |
| Cutting angle | 90/45 degree |
| Cutting width * height | 170x200mm at 45 degree for 550mm saw blade |
| Cutting length | 400-4200mm |
| Input power | 6kW |
| Power supply | 380V 50Hz or customized |
Features
- CNC Positioning, It is used for double head cutting of aluminum-UPVC/PVC profiles at 45 -90 °
- Special diamond saw blade to ensure the quality and durability of cutting surface
- High precision spindle makes the saw blade move smoothly and the maximum cutting section 150 × 200mm at 45 degree
- The two saw heads can work separately or simultaneously
- Profile cutting angle error: ± 5 ‘
- Flatness of cut profile: ≤ 0.05mm
- An excellent aluminum cutting saw
Details Images

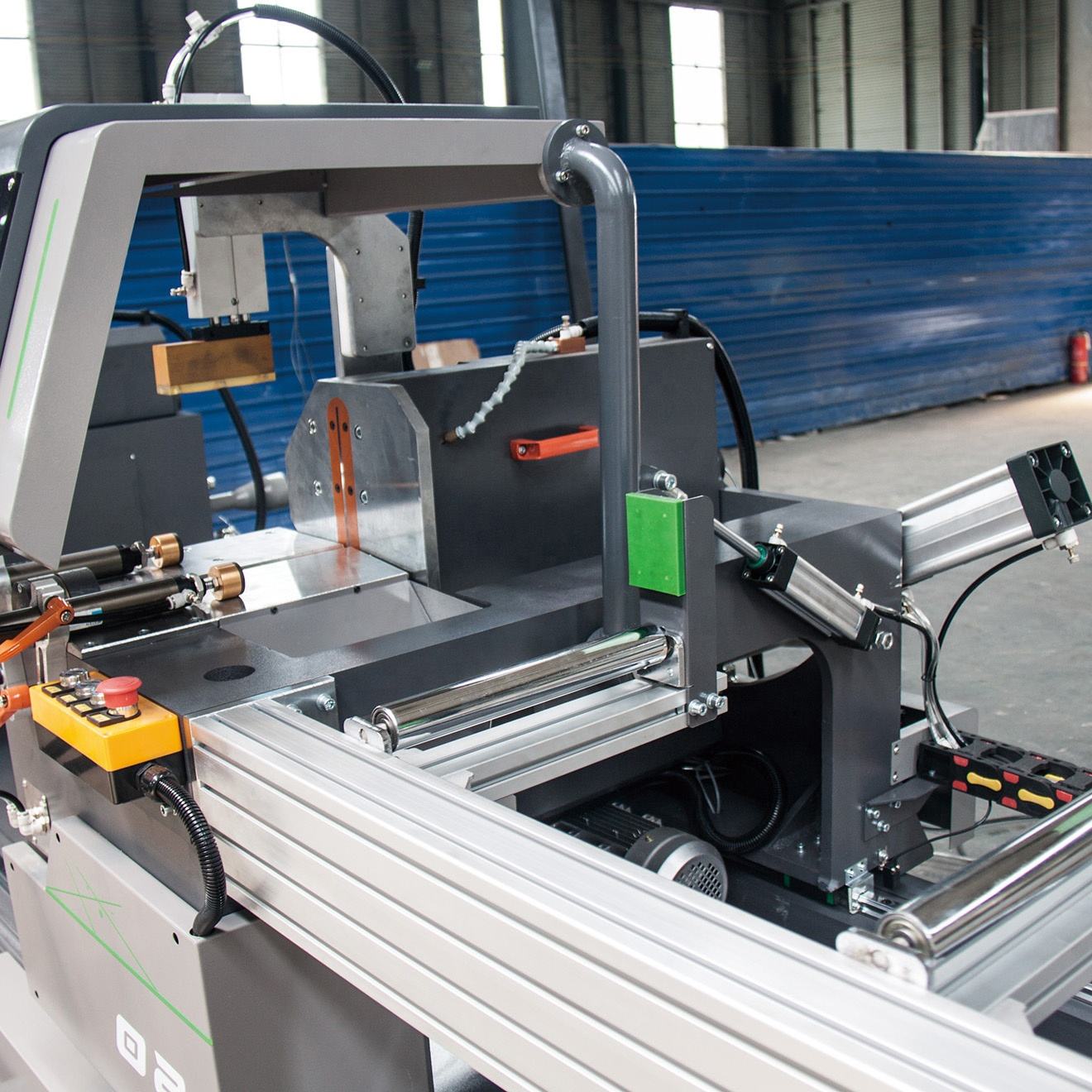

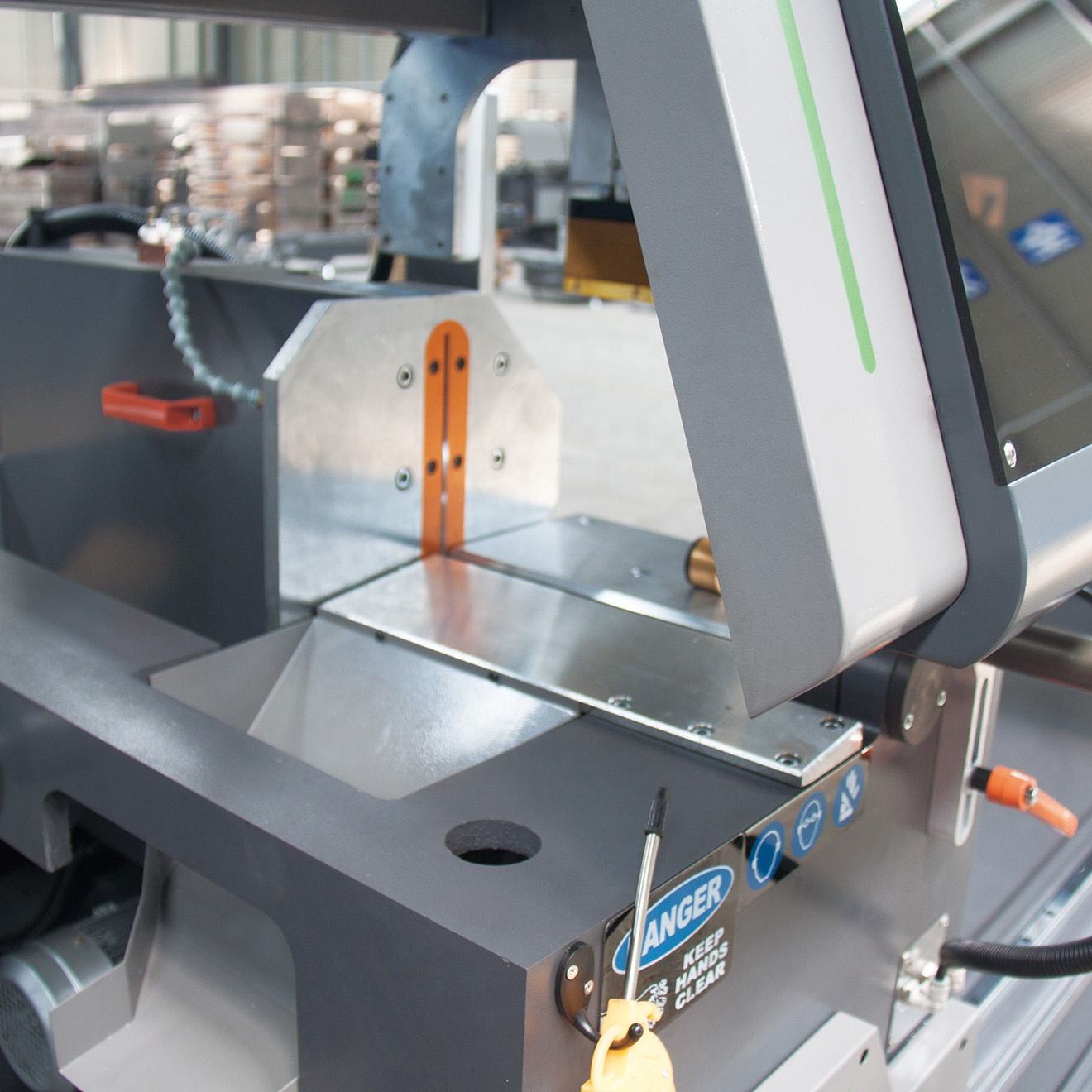

Unique Clamping Design
This innovative top-compression structure provides strong compression and stability, enabling it to firmly hold multiple pieces of material in place, ensuring that the material does not shift or loosen during the cutting process.

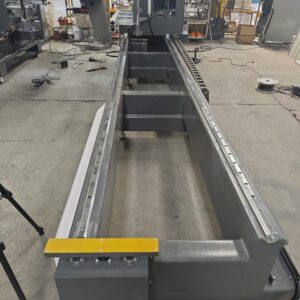

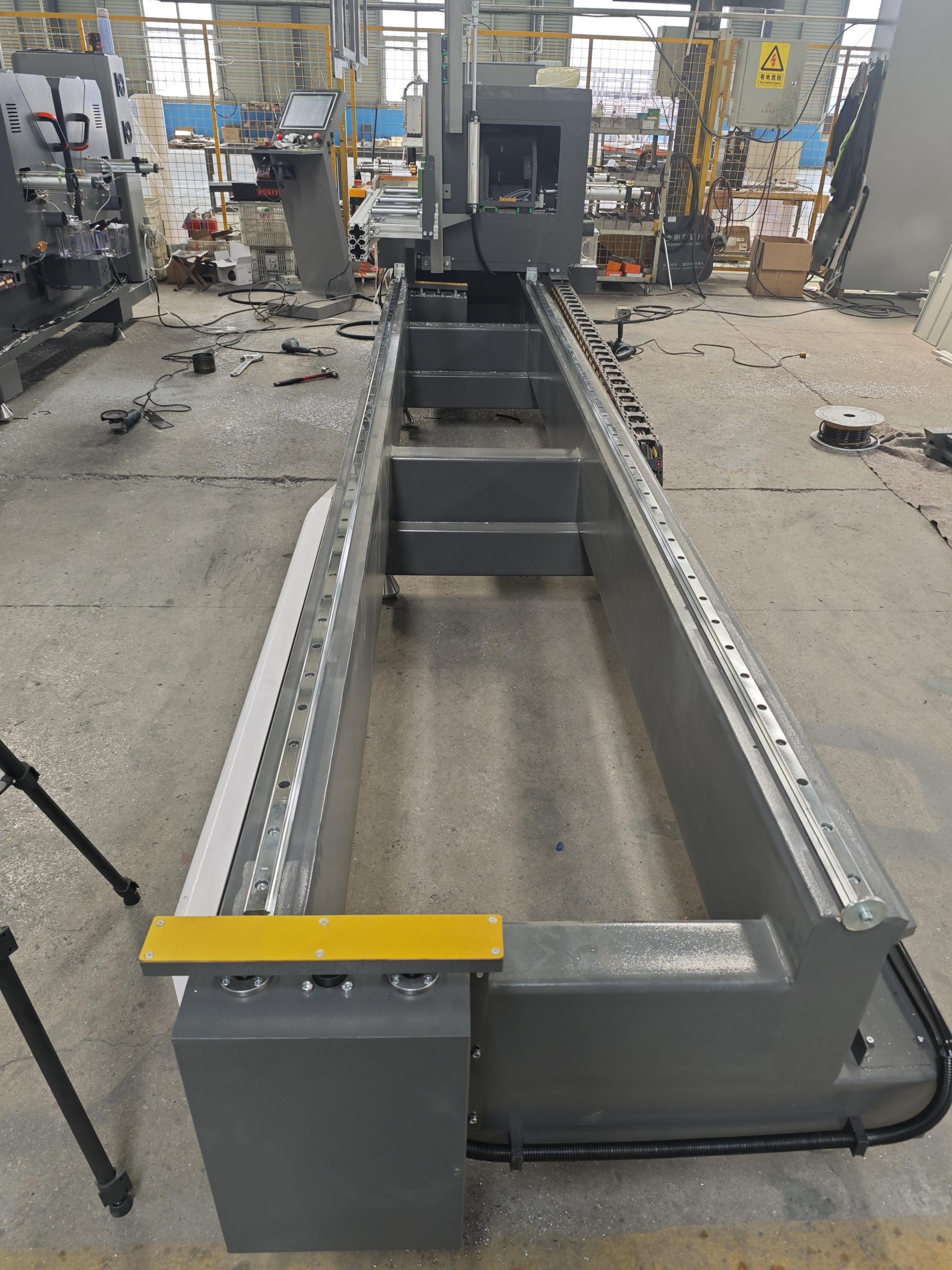

Machine head moves along linear guide rail
Linear guide rails, as key components of guidance and support, give the machine head smooth, stable and high-precision movement capabilities.
This precise movement method not only reduces frictional resistance and improves movement efficiency, but more importantly, it greatly reduces vibration and jitter during the movement of the machine head.
The design of the machine head moving along the linear guide also significantly enhances the durability and reliability of the equipment.
There will be no deviation or wear during long-term operation, ensuring the long-term stable performance of the equipment and providing continuous and stable support for your production.

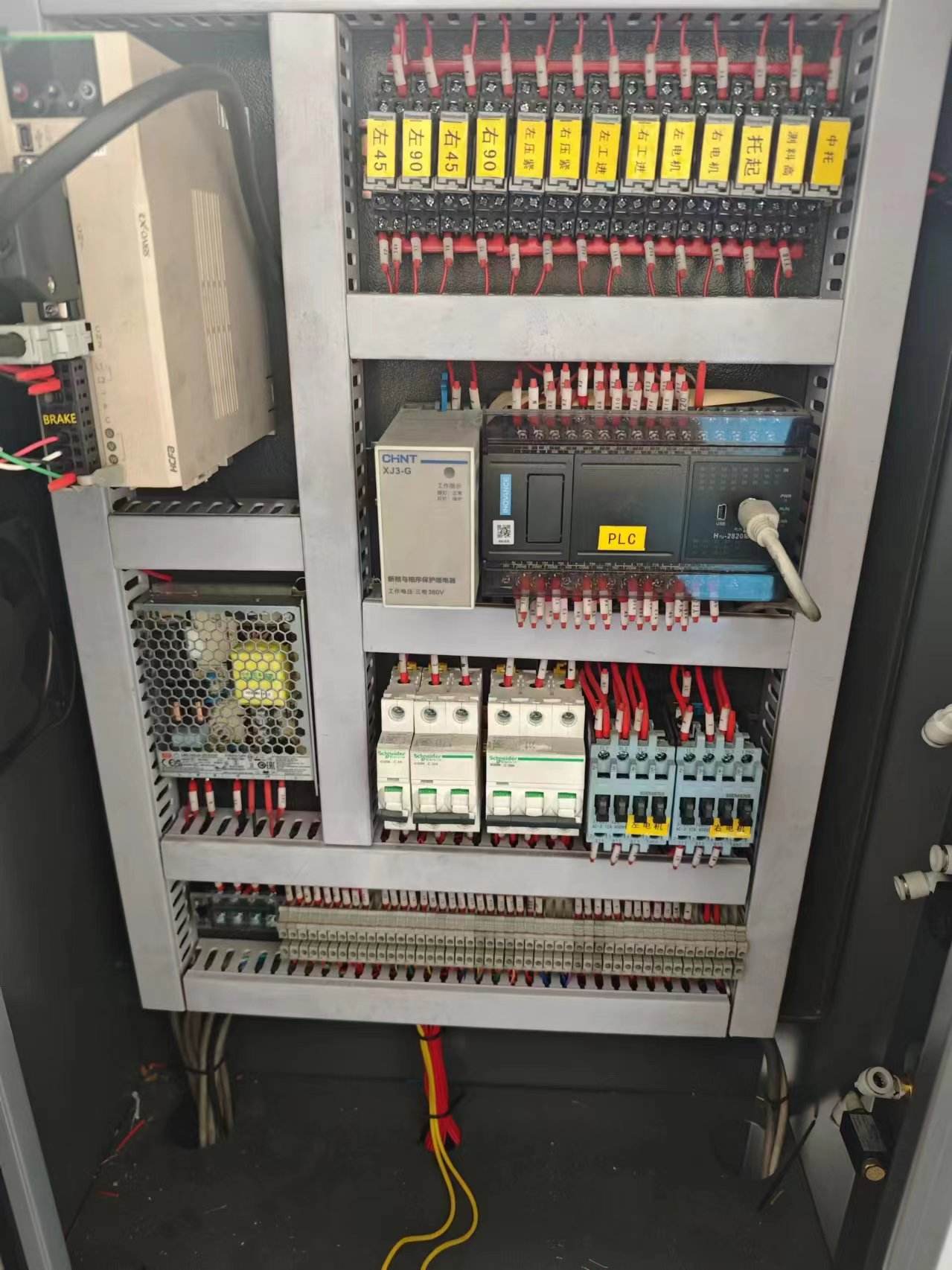

Components with famous brand
In complex electrical control systems, a well-designed electrical control cabinet is crucial.
The clear and unambiguous logo is like a beacon of guidance for you.
Every switch, every line, and every component is clearly marked, so that when faced with possible problems, you don’t need to waste time and effort to troubleshoot, and you can locate the key points at a glance.
Whether it is routine maintenance inspections or sudden fault handling, this electrical control cabinet allows you to quickly find the source of the problem, greatly shortening downtime and improving production efficiency.
Effects of Cutting Surface
No need to worry about the interference of burrs, enjoy the smooth and beautiful cutting surface.
Exquisite technology makes every cut an artistic presentation, bringing you unprecedented satisfaction.
