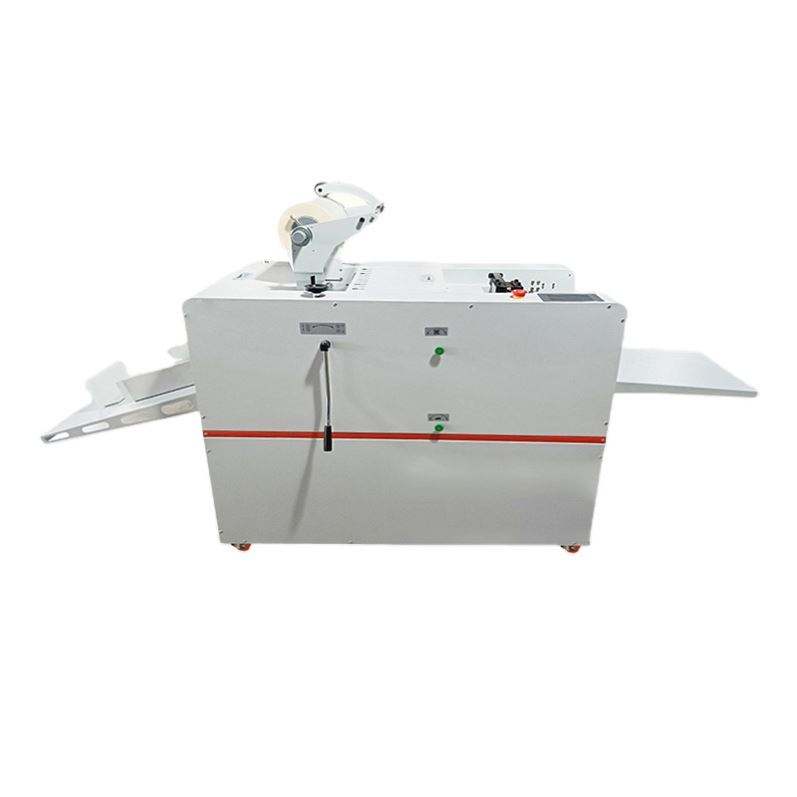

A3 Air Suction Feeding Hot Roll Laminator
Introduction
This laminating machine is expertly designed for single-sided hot film lamination with precise adjustments and fast operation speeds. Featuring automated feeding, a user-friendly interface, and versatile capabilities, it is perfect for industries requiring high-quality lamination solutions.
Key Features
- Adjustable Dimensions
Offers lamination widths of up to 320mm and thickness ranges between 125g and 300g, accommodating diverse requirements. - High-Speed Performance
Operates at adjustable speeds ranging from 1 to 15m/min, ensuring efficient and consistent output for varied tasks. - Advanced Automation
Equipped with an automatic air suction paper feed system, simplifying the process and enhancing productivity. - Customizable Temperature Settings
Provides a temperature range of 60°C to 120°C, allowing for tailored lamination results based on material type. - Durable Design
Built with robust components, including a reliable motor, to ensure longevity and stable performance. - Efficient Roll Management
Handles film rolls with a maximum length of 3000m and core diameters ranging from 1 to 3 inches, providing flexibility for extensive lamination needs. - User-Friendly Interface
Features a 7-inch touch screen operation panel for seamless control and adjustments.
Specifications
| Specification | Details |
|---|---|
| Type | Laminating Machine |
| Voltage | 220V |
| Max Width | 320mm |
| Laminating Thickness | 125g – 300g |
| Speed | 1 – 15m/min |
| Way of Working | Single-sided Hot Film |
| Max Paper Loading Height | 520mm |
| Max Length of Film | 3000m |
| Core Diameter of Film Roll | 1 – 3 inches |
| Temperature Range | 60°C – 120°C |
| Core Components | Motor |
| Computerized | Yes |
| Dimensions (L × W × H) | 2600 × 684 × 1227mm |
| Weight | 260kg |
| Key Selling Points | Easy to Operate |
| Machinery Test Report | Not Available |
| Video Outgoing-Inspection | Provided |
| Place of Origin | Zhejiang, China |
Packaging and Delivery
| Specification | Details |
|---|---|
| Packaging Details | Export standard wooden case |
| Selling Units | Single item |
| Dimensions | 2600 × 684 × 1227mm |
Applications
- Ideal for single-sided laminating tasks in industries such as printing and packaging.
- Suitable for applications involving diverse materials like PET, PVC, and plastic films.
Why Choose This Item
- Efficient & Reliable
Delivers consistent lamination results at high speeds with customizable settings. - Durable & Versatile
Built for professional use with sturdy components and flexible capabilities. - User-Friendly Design
Simplifies operation with advanced automation and a touch screen interface.
